Remove/Install Outside Door Handle On Rear-End Door - AR72.20-S-2420E

Model 447.6/7

With Code W50 (Rear-end door, double-wing, 180 degrees without window)

Model 447.6/7

With Code W54 (Hinged rear doors, opening to side wall)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install

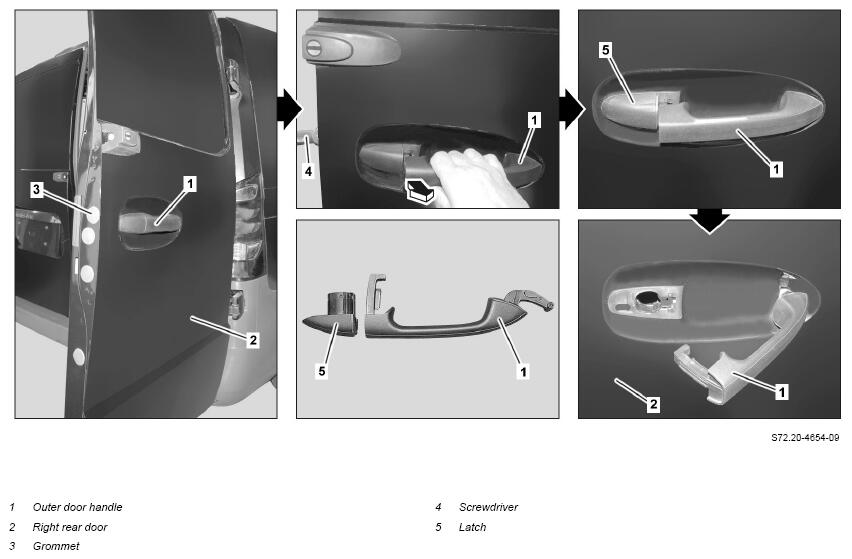

1	Remove grommet (3)
2	Pull out outer door handle (1) and loosen bolt on bearing bracket with screwdriver (4)	The bolt on the bearing bracket is sufficiently loosened when the outer door handle (1) remains in the pulled position by itself as shown. Press on lock (5) and tighten bolts on bearing bracket until a perceptible resistance can be felt on the screwdriver (4). Outer door handle (1) automatically jumps back to initial position if it correctly installed.
3	Remove latch (5)
4	Pull outer door handle (1) toward rear as shown and remove
5	Install in the reverse order
	Check
6	Check outer door handle (1) for proper function
