Electric Wiring Diagram For Panoramic Sliding Roof - PE77.20-S-2200-97VVD
Model 447.7
With Code D34 (Automatic panoramic sliding sunroof)
With Code XM0 (Facelift)
except code M7E (Electric motor 150 kW/battery 60 kWh (usable))
except code ME0 (Electric motor 85 kW)
except code ME4 (Electric motor 145 kW)
except code XM7 (MOPF II)
N98

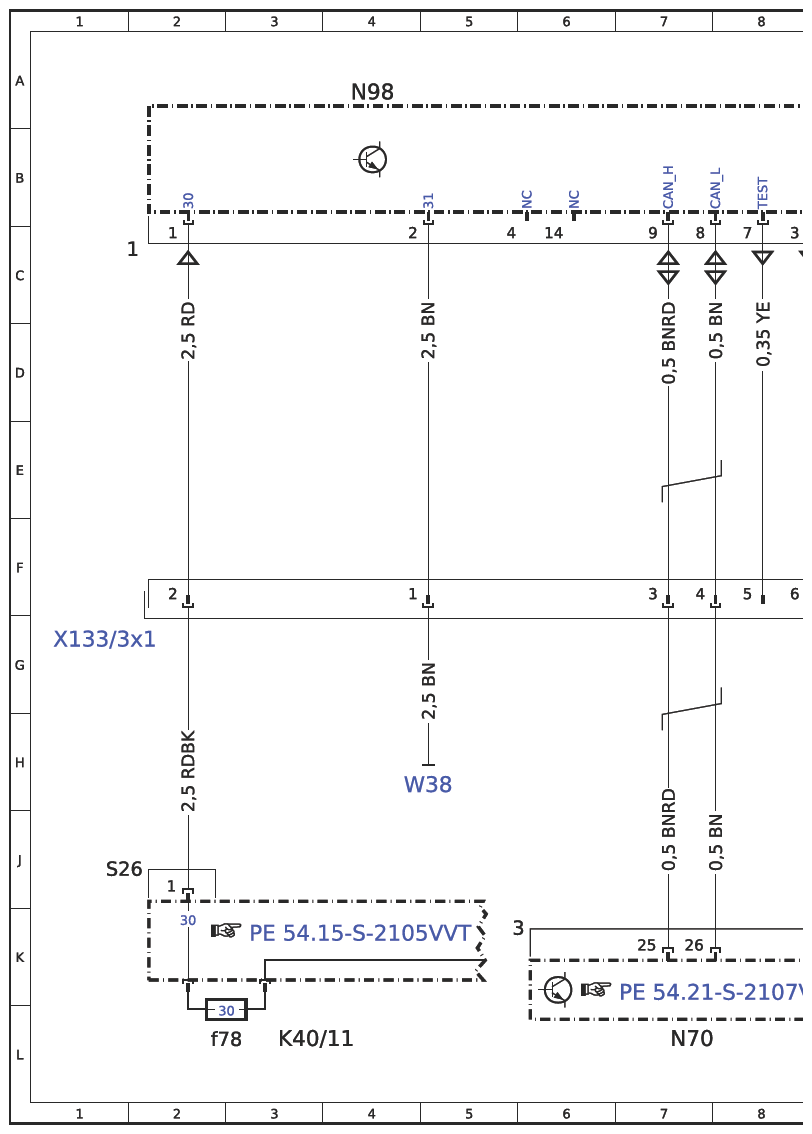

| Code: | Designation: | Position: |
|---|---|---|

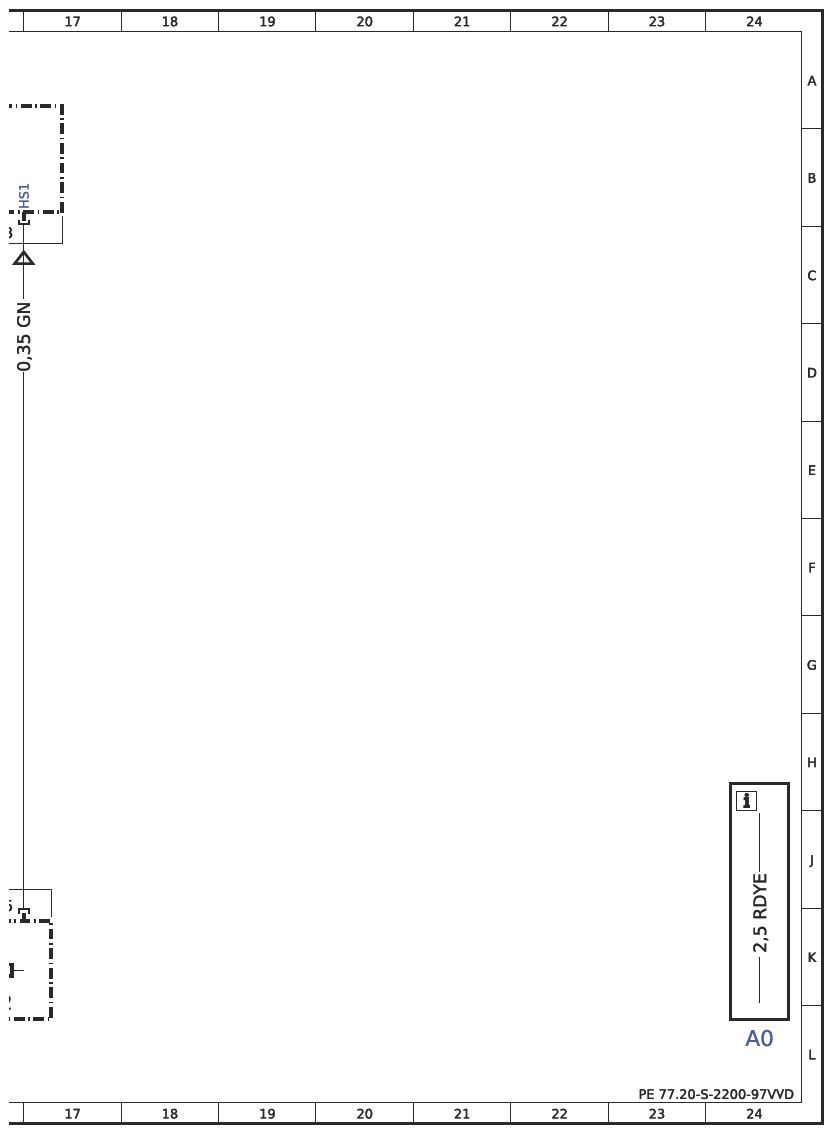

| A0 | Color code key | 24L |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f78 | Fuse 78 | 2L |

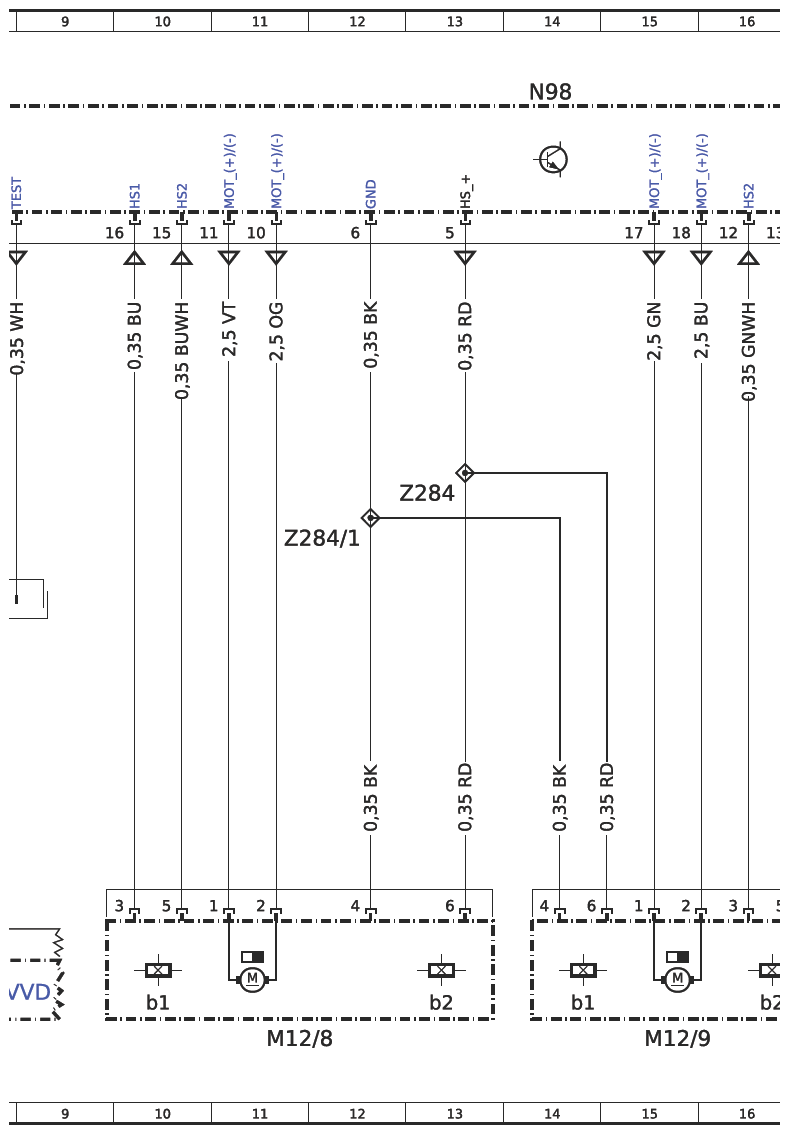

| M12/8 | Right pop-up roof motor | 11L |
| M12/8b1 | Pop-up roof Hall sensor | 10L |
| M12/8b2 | Pop-up roof Hall sensor | 13L |
| M12/9 | Pop-up roof roller blind motor | 15L |
| M12/9b1 | Pop-up roof roller blind Hall sensor | 14L |
| M12/9b2 | Pop-up roof roller blind Hall sensor | 16L |
| N70 | Overhead control panel (OCP [DBE]) control unit | 7L |
| N98 | Panoramic sliding sunroof (PSD) control unit | 4A |
| N98 | Panoramic sliding sunroof (PSD) control unit | 14A |
| W38 | Roof frame ground point 1 | 5H |
| X133/3x1 | Panoramic sliding roof electrical connector | 1G |
| Z284 | Panoramic roof Hall sensors end sleeve | 13E |
| Z284/1 | Panoramic roof Hall sensors end sleeve | 12F |
