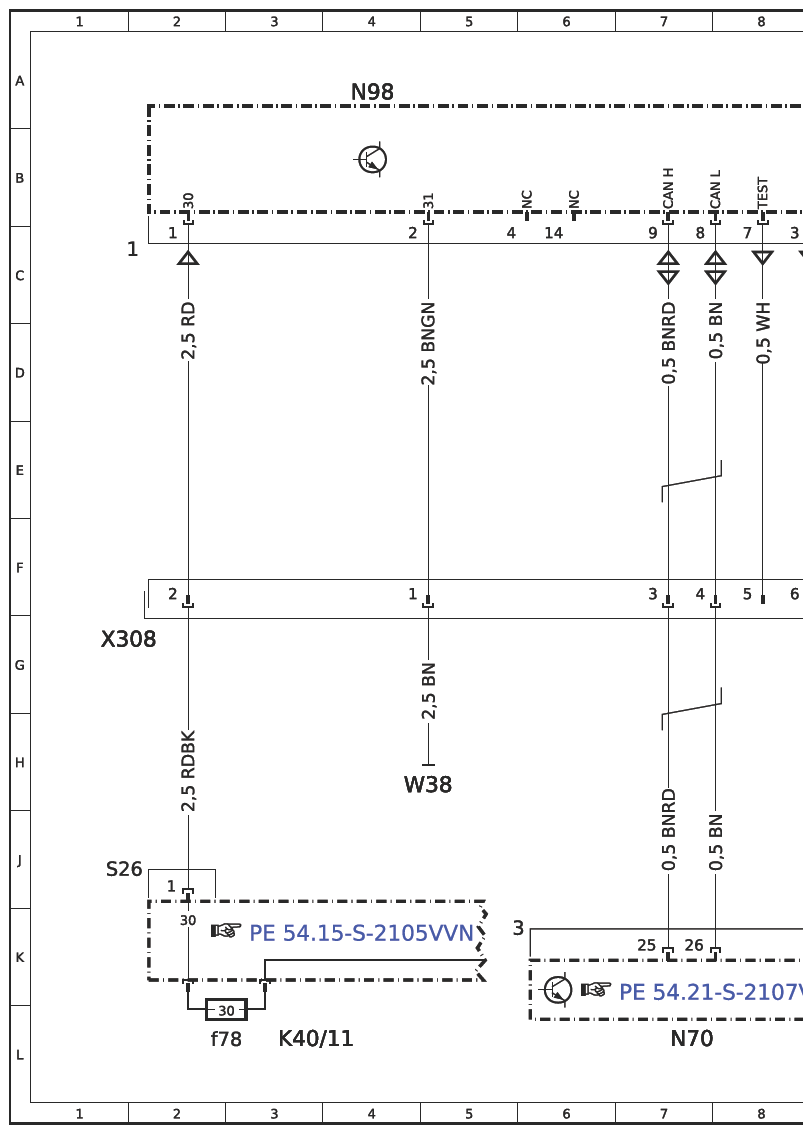

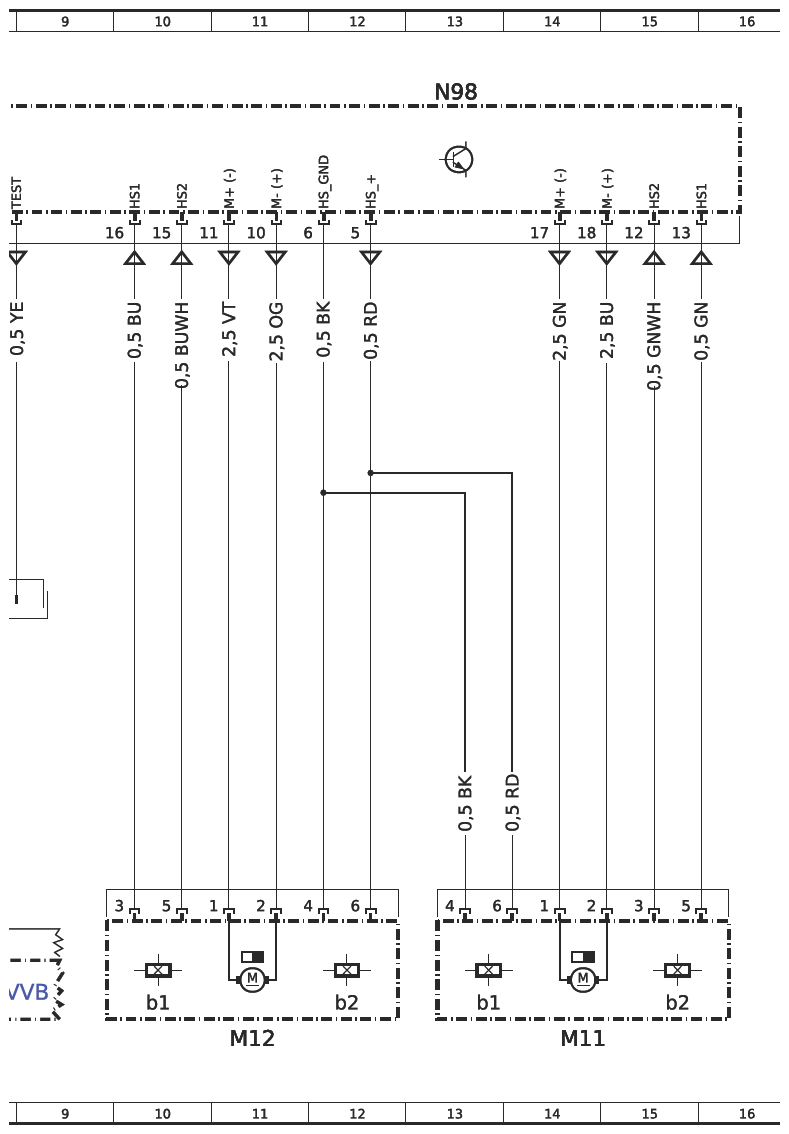

Electric Wiring Diagram For Panoramic Sliding Roof - PE77.20-S-2200-97VVB
Model 447.7
With Code D34 (Automatic panoramic sliding sunroof)
except code M7E (Electric motor 150 kW/battery 60 kWh (usable))
except code ME0 (Electric motor 85 kW)
except code ME4 (Electric motor 145 kW)
except code XM0 (Facelift)
except code XM7 (MOPF II)
except code ZL3 (National version for Latin America)
N98
| Code: | Designation: | Position: |
|---|---|---|

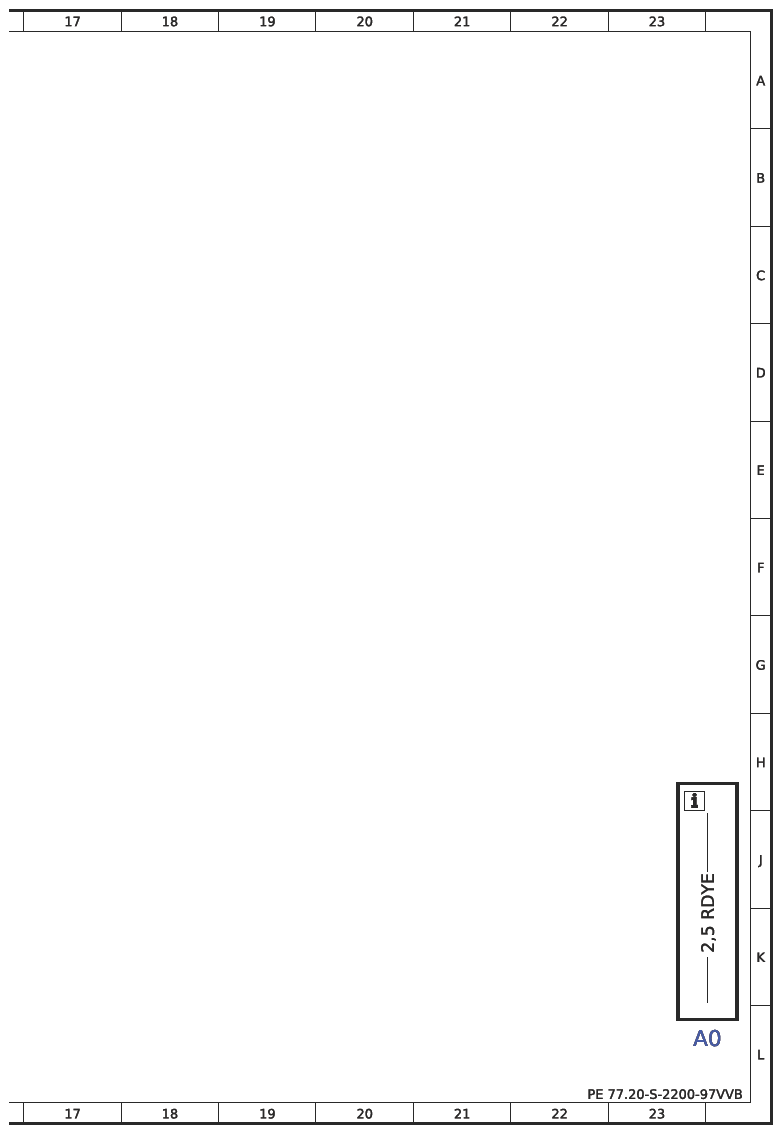

| A0 | Color code key | 23L |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f78 | Fuse 78 | 2L |
| M11 | Panoramic sliding roof roller sun blind drive unit | 14L |
| M11b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 13L |
| M11b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 15L |
| M12 | Panoramic sliding roof drive unit | 11L |
| M12b1 | Hall sensor 1, panoramic sliding roof | 10L |
| M12b2 | Hall sensor 2, panoramic sliding roof | 12L |
| N70 | Overhead control panel (OCP [DBE]) control unit | 7L |
| N98 | Panoramic sliding sunroof (PSD) control unit | 4A |
| N98 | Panoramic sliding sunroof (PSD) control unit | 13A |
| W38 | Roof frame ground point 1 | 5H |
| X308 | Panoramic sliding roof electrical connector | 2G |
