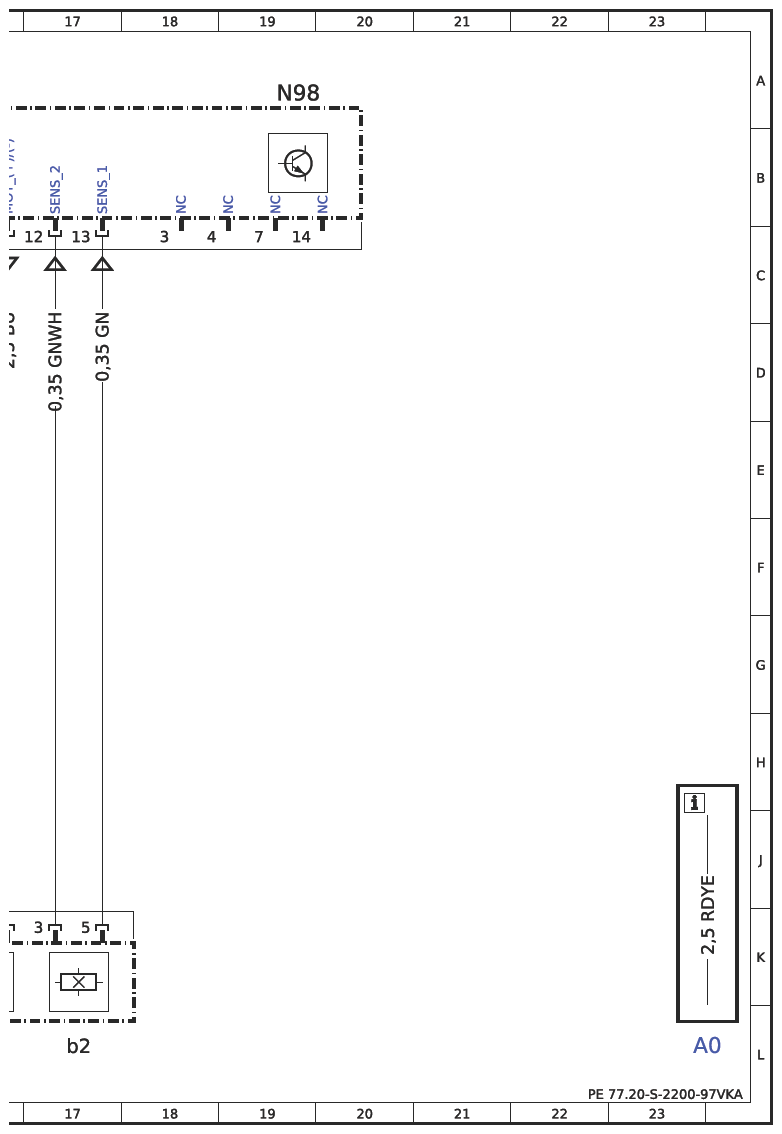

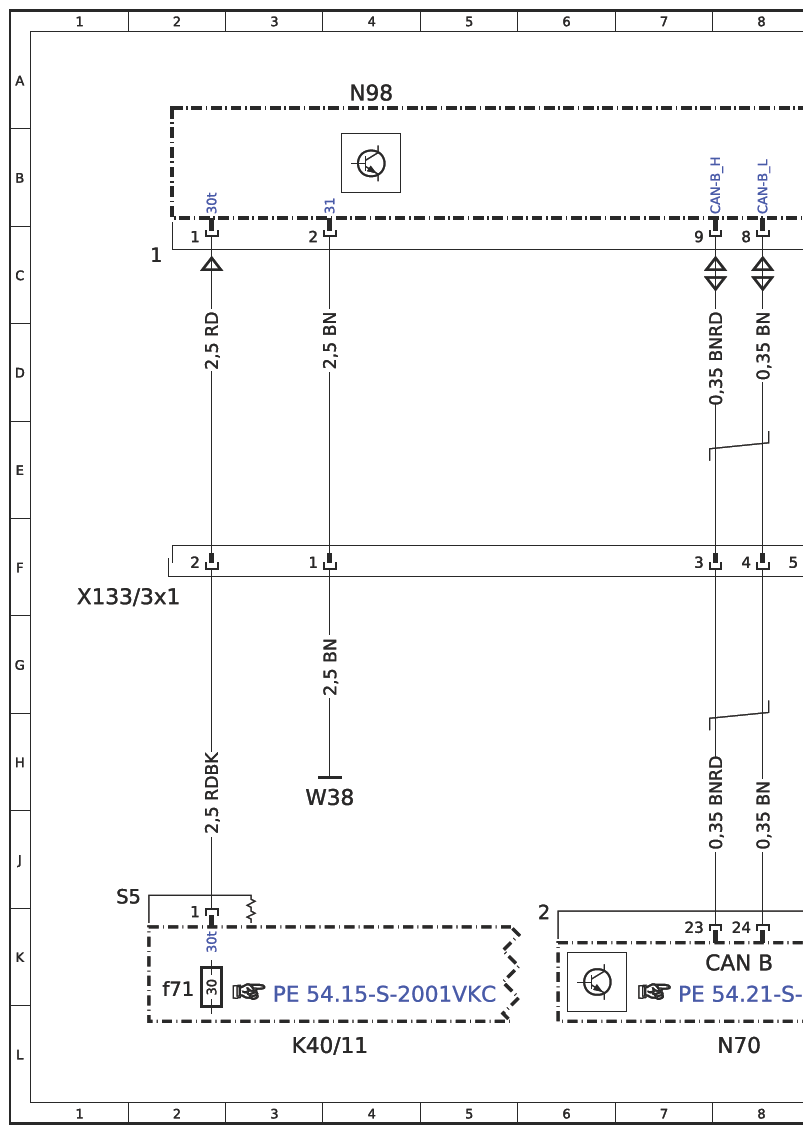

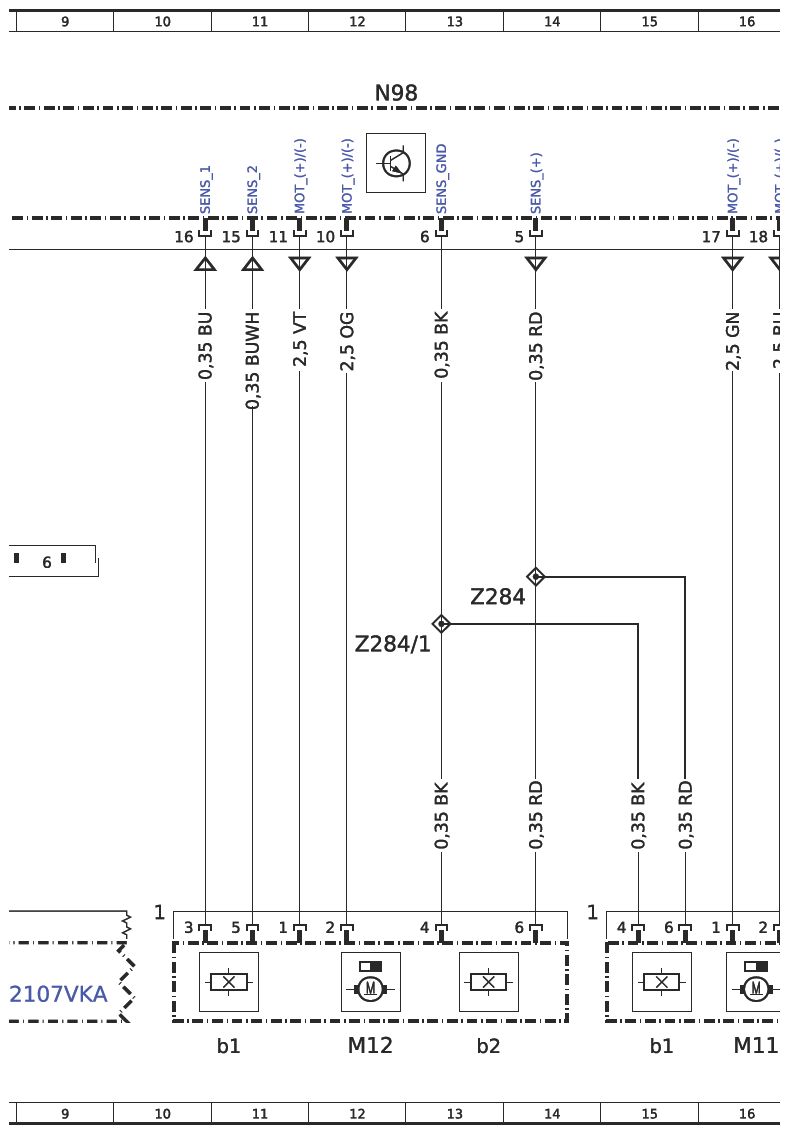

Electric Wiring Diagram For Panoramic Sliding Roof - PE77.20-S-2200-97VKA
Model 447 With Code D34 (Automatic panoramic sliding sunroof) With Code XM7 (MOPF II) N98
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| CAN B | Interior CAN | 8K |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f71 | Fuse 71 | 2K |
| M11 | Panoramic sliding roof roller sun blind drive unit | 16L |
| M11b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 15L |
| M11b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 17L |
| M12 | Panoramic sliding roof drive unit | 12L |
| M12b1 | Hall sensor 1, panoramic sliding roof | 11L |
| M12b2 | Hall sensor 2, panoramic sliding roof | 13L |
| N70 | Overhead control panel (OCP [DBE]) control unit | 8L |
| N98 | Panoramic sliding sunroof (PSD) control unit | 4A |
| N98 | Panoramic sliding sunroof (PSD) control unit | 12A |
| N98 | Panoramic sliding sunroof (PSD) control unit | 19A |
| W38 | Roof frame ground point 1 | 3H |
| X133/3x1 | Panoramic sliding roof electrical connector | 2F |
| Z284 | Panoramic roof Hall sensors end sleeve | 14F |
| Z284/1 | Panoramic roof Hall sensors end sleeve | 12G |
