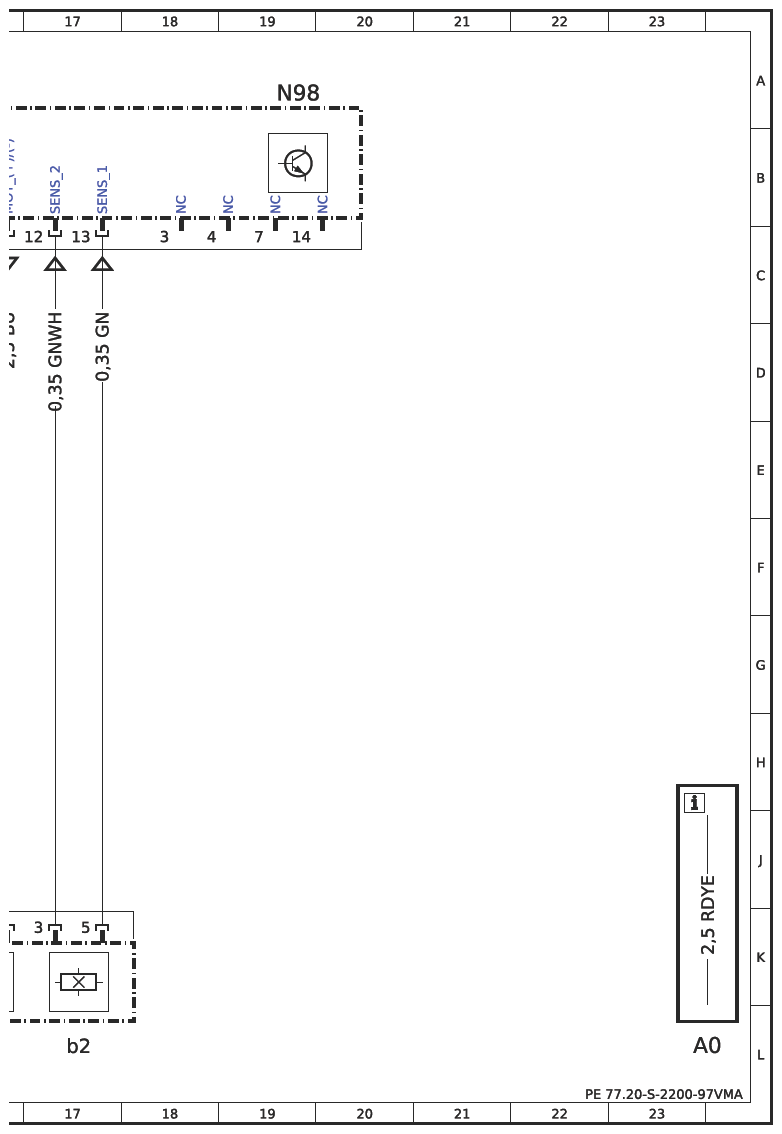

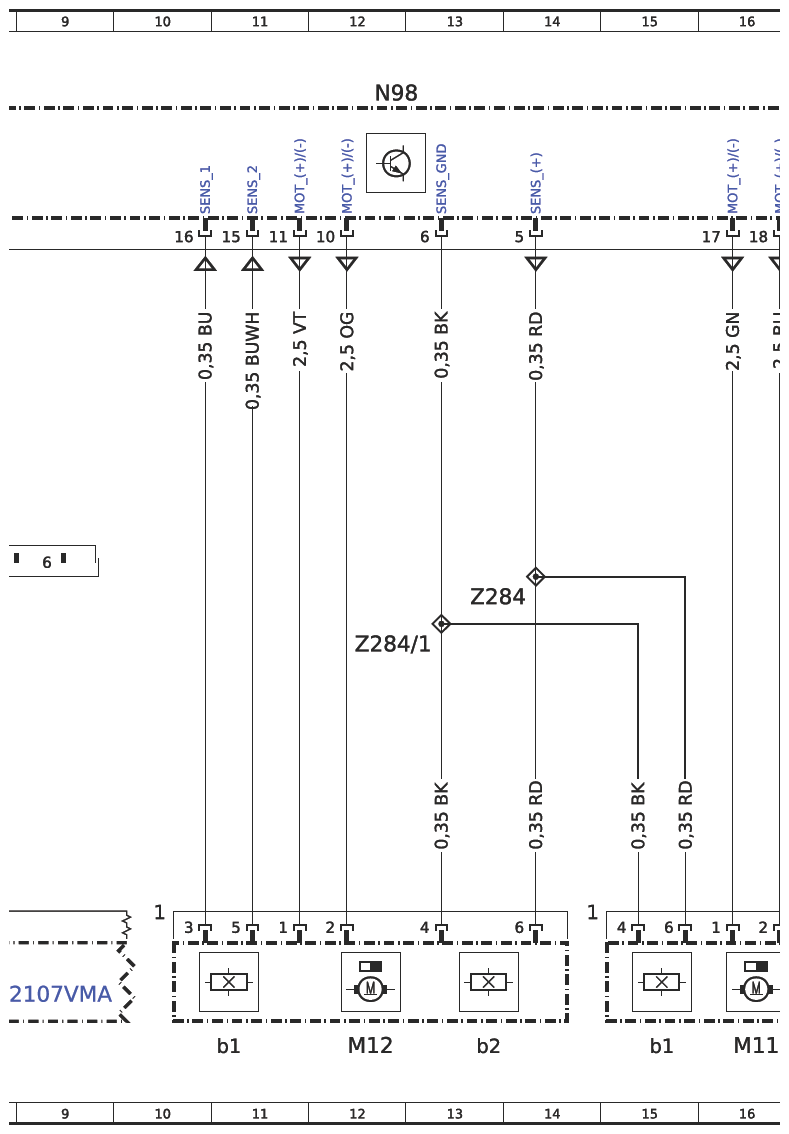

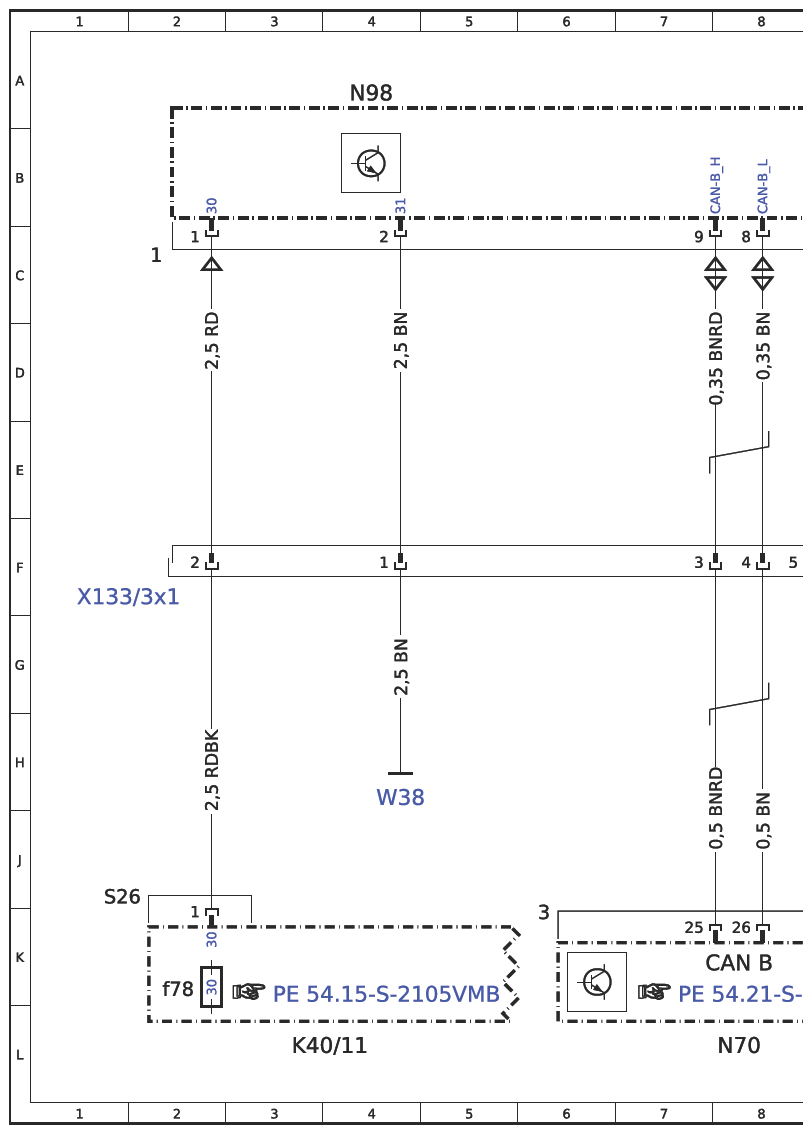

(Electric Wiring Diagram For Panoramic Sliding Roof - PE77.20-S-2200-97VMA)
Model 447.7
With Code D34 (Automatic panoramic sliding sunroof)
With Code M7E (Electric motor 150 kW/battery 60 kWh (usable))
except code XM7 (MOPF II)
N98
Model 447.7
With Code D34 (Automatic panoramic sliding sunroof)
With Code ME4 (Electric motor 145 kW)
except code XM7 (MOPF II)
N98
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| CAN B | Interior CAN | 8K |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f78 | Fuse 78 | 2K |
| M11 | Panoramic sliding roof roller sun blind drive unit | 16L |
| M11b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 15L |
| M11b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 17L |
| M12 | Panoramic sliding roof drive unit | 12L |
| M12b1 | Hall sensor 1, panoramic sliding roof | 11L |
| M12b2 | Hall sensor 2, panoramic sliding roof | 13L |
| N70 | Overhead control panel (OCP [DBE]) control unit | 8L |
| N98 | Panoramic sliding sunroof (PSD) control unit | 4A |
| N98 | Panoramic sliding sunroof (PSD) control unit | 12A |
| N98 | Panoramic sliding sunroof (PSD) control unit | 19A |
| W38 | Roof frame ground point 1 | 4H |
| X133/3x1 | Panoramic sliding roof electrical connector | 2F |
| Z284 | Panoramic roof Hall sensors end sleeve | 14F |
| Z284/1 | Panoramic roof Hall sensors end sleeve | 12G |
