Remove/Install Rubber Sealing Frame On Pop-Up Roof - AR77.70-S-0016E
Model 447.7/8
With Code ZK9 (Lifting roof hatch) Model 447.8
With Code ZK0 (EASY UP pop-up roof, electric)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||
| 1 | Open pop-up roof | Model 447.7/8 with code ZK9 (Lifting roof hatch) |
AR77.70-S-0001-01E |
| Model 447.8 with code ZK0 (EASY UP pop-up roof, electric) |
AR77.75-S-0001-03E | ||

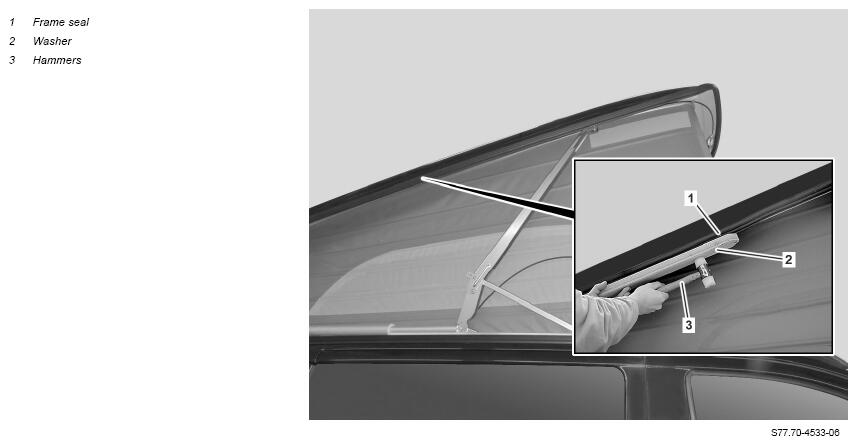

| 2 | Remove frame seal (1) | ||
| Install | |||
| 3 | Position sealing frame (1) | ||
| 4 | Press on sealing frame (1) with hammer (3) and base (2) as shown | ||
| 5 | Close pop-up roof | Model 447.7/8 with code ZK9 (Lifting roof hatch) |
AR77.70-S-0001-01E |
| Model 447.8 with code ZK0 (EASY UP pop-up roof, electric) |
AR77.75-S-0001-03E |
