Remove Boot On Pop-Up Roof - AR77.70-S-0080-03E
Model 447.7/8
With Code ZK9 (Lifting roof hatch)
Model 447.8
With Code ZK0 (EASY UP pop-up roof, electric)

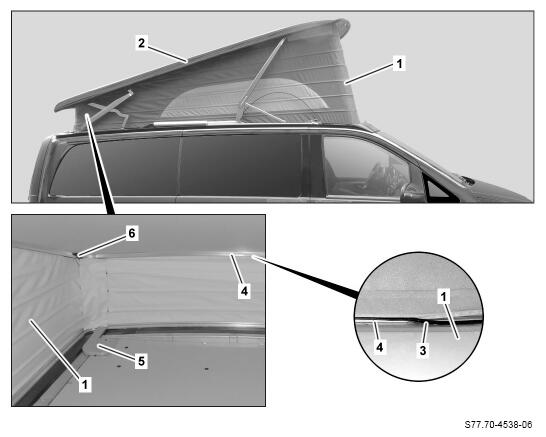

- Remove cover (5).
- Expose electrical wiring harness (6) and disconnect electrical connector.
- Mark assembly position of boot (1) and inner filler channel (3).
- Remove inner filler channel (3).
Carefully remove inner filler channel (3).
Otherwise the boot (1) can be damaged.
- Remove bot (1) on profile rail (4) from pop-up roof (2).
