Install Bellows On Vehicle Roof - AR77.70-S-0080-02E

Model 447.7/8

With Code ZK9 (Lifting roof hatch)

Model 447.8

With Code ZK0 (EASY UP pop-up roof, electric)

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Roller (639 589 08 63 00)

Courtesy of MERCEDES-BENZ USA

1. Cut seven, approx. 10 cm long, fastening elements out of removed old filler profile (2).
2. Transfer markings on removed boot (1) to new boot (1).

   If boot (1) is replaced.

3. Mark center of front profile rail (3).
4. Align markings on boot (1) with markings on profile rails (3) and hook boot (1) from outside into profile rails (3).

   The rear seam of the boot (1) is not located in the center due to design.

5. Install cut fastening elements on front center, front side, left, right and rear side.



   Model 447.8

   with code ZK0 (EASY UP pop-up roof, electric)

   Install front fastening element offset next to guide rail.

   Courtesy of MERCEDES-BENZ USA

6. Mark center of new filler profile (2).
7. Spray lubricant to filler profile (2).
8. Align center of filler profile (2) with marking made on front profile

   rail (3), remove front fastening element and install filler profile (2) on front from outside in profile rail (3) with roller.

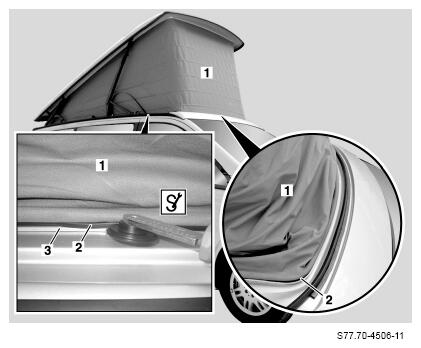

9. Uniformly install boot and filler profile (2) toward rear into profile rail (3) on roof paneling with roller and long wedge starting at front.

   Remove fastening elements one after another.

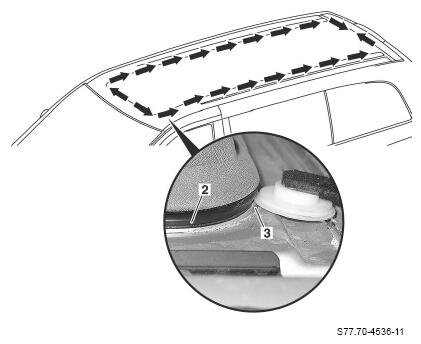

   Observe installation position (arrows) of filler profile (2).
