Install Bellows On Pop-Up Roof - AR77.70-S-0080-01E

Model 447.7/8

With Code ZK9 (Lifting roof hatch)

Model 447.8

With Code ZK0 (EASY UP pop-up roof, electric)

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Roller (639 589 08 63 00)

Courtesy of MERCEDES-BENZ USA

1. Cut seven, approx. 10 cm long, fastening elements out of removed old filler profile (2).
2. Transfer markings on removed boot (1) to new boot (1).

   If boot (1) is replaced.

3. Mark center of front profile rail (3).
4. Align markings on boot (1) according to markings on profile rails (3) and hook boot (1) into profile rails (3).

   The rear seam of the boot (1) is not located in the center due to design.

5. Install cut fastening elements on front center, front side, left, right and rear side.
6. Mark center of new filler profile (2).
7. Spray lubricant to filler channel (2).

   Courtesy of MERCEDES-BENZ USA

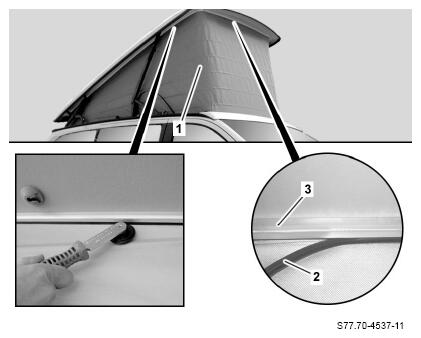

8. Align center of filler channel according to marking on front profile rail (3), remove front fastening section and install front filler channel with roller in front profile rail (3).
9. Starting at front, install boot and filler channel uniformly toward rear in profile rails (3) of pop-up roof using roller and long wedge.

   Remove fastening elements one after another.

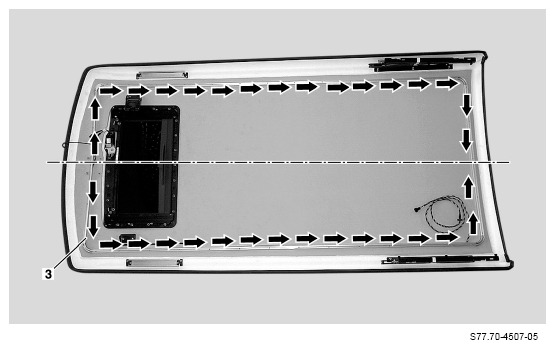

   Observe installation direction (arrows) of filler channel.

   Shown on removed pop-up roof

Courtesy of MERCEDES-BENZ USA
