Detach Roller Sun Blind From Guide Rails - AR77.21-S-0201-01E

Model 447.7/8, 448

Courtesy of MERCEDES-BENZ USA

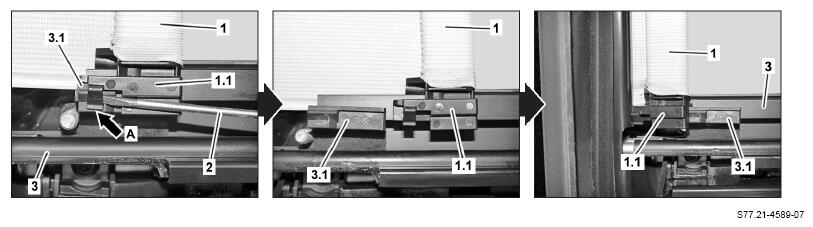

Shown on the right side of the front roller sun blind (1) as an example

1. Lift lug (arrow A) on driver (1.1) with suitable screwdriver (2).

   Carefully lift lug (arrow A).

   Otherwise the lug (arrow A) can break off.

2. Unclip driver (1.1) toward front from sliding shoe (3.1).

   Roller sun blind (1) is under tension and must be held by hand.

   Otherwise the roller sun blind (1) can roll up unintentionally and can be damaged.

3. Fold sliding shoe (3.1) to side and carefully guide loosened side of roller sun blind (1) toward rear.
4. Repeat operation steps  1 to  3 on opposite guide rail (3).
