Cut Out Panoramic Roof - AR77.21-S-0750-12E

Model 447.7/8, 448.8

Fig 1: Identifying Set Of Shields (222 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

Helper required to cut out.

When cutting out, protect adjacent paint surfaces against damage using set of shields.

1. Puncture adhesive bead on rear right corner of panoramic roof (1) with pull-in device (2) as shown and guide cutting wire into vehicle interior.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

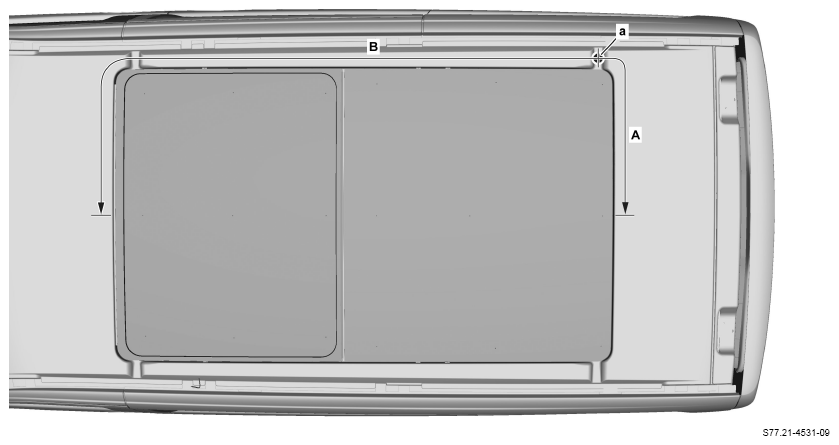

2. Cut adhesive bead starting at puncture point (a) in direction of arrow (arrow A) to center of panoramic roof.
3. Guide cutting wire to puncture point (a).
4. Cut adhesive bead starting at puncture point (a) in direction of arrow (arrow A) to center of panoramic roof.
5. Puncture adhesive bead on left right corner of panoramic roof (1) with pull-in device (2) as shown and guide cutting wire into vehicle interior.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

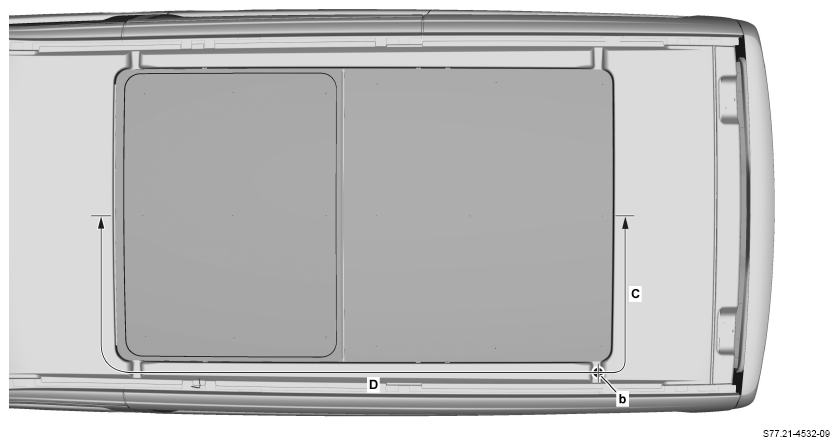

6. Cut adhesive bead starting at puncture point (b) in direction of arrow (arrow C) to center of panoramic roof.
7. Guide back cutting wire to puncture point (b).
8. Cut adhesive bead starting at puncture point (b) in direction of arrow (arrow D) to center of panoramic roof.
