Apply Adhesive Material For Panoramic Roof - AR77.21-S-0750-16E
Model 447.7/8, 448.8
| Topical note | Pretreatment of bonding surfaces | AH60.00-P-0008-01SX |
| 12.12.2017 | Work procedure revised | Operation step 1 | |
| 12.12.2017 | Repair material update |
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1180-02A | Repair kit for installing windshields, 1-component adhesive | A 000 989 49 05 |
Do not touch bonding surfaces with bare fingers and bonding surfaces must be free of dust, oil, grease, wax, dirt residues and other adhesive components.
Otherwise the strength of the adhesive connection can be impaired and proper adhesion of the adhesive material is not ensured.
Object and room temperatures must be at least 15°C and may not exceed 35°C.
Otherwise the strength of the adhesive connection can be impaired and proper adhesion of the adhesive material is not ensured.
Glue in panoramic roof immediately after application of adhesive material.
Otherwise it may not be possible to maintain permissible processing and joining times.

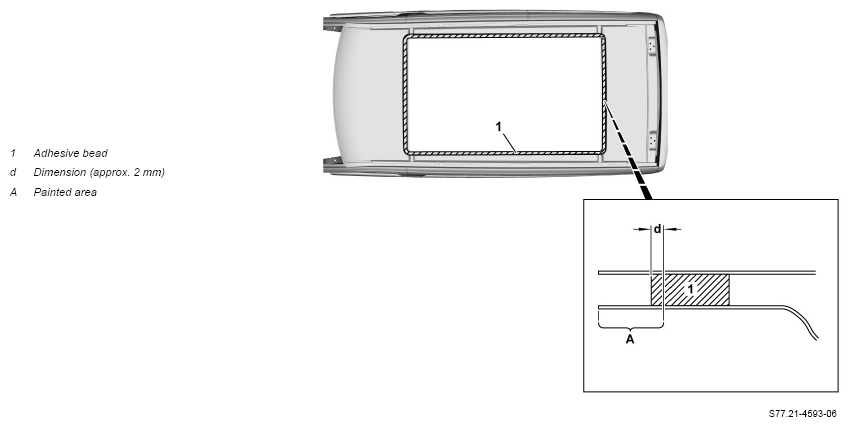

In the installed condition, adhesive bead (1) must overlap on entire body flange by dimension (d), as shown, in painted area (A) of body flange For this reason, the instructions for applying the adhesive material must be complied with.
Otherwise, the strength of the adhesively bonded connection will be impaired, the required adhesion of the adhesive material will not be ensured and the anti-corrosion protection will be insufficient.

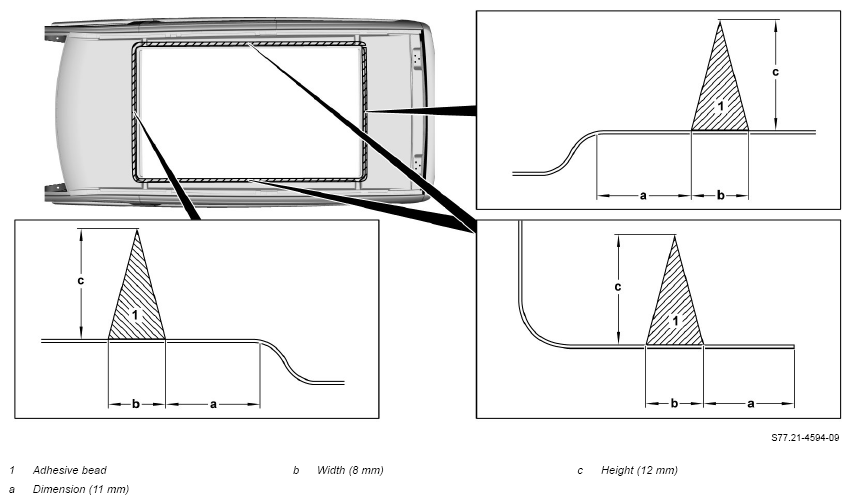

Shown in panoramic roof installed condition
- Adhesive material in form of an adhesive bead (1).
Note dimension (a) as well as width (b) and height (c) of adhesive bead (1).
Otherwise, the strength of the adhesively bonded connection will be impaired, the required adhesion of the adhesive material will not be ensured and the anti-corrosion protection will be insufficient.
Immediately eliminate contamination due to adhesive material.
