Align Panoramic Roof In Opening Of Body - AR77.21-S-0750-15E

Model 447.7/8, 448.8

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Carefully handle prepared panoramic roof (1) and lay down.

Otherwise the adhesive surface can be soiled or the spacers glued to the panoramic roof (1) can fall off or slip.

Helper required.

1. Guide prepared panoramic roof (1) over liftgate cutout into vehicle interior and put down.
2. Guide panoramic roof (1) through panoramic roof cutout toward outside and lay down on body flange.
3. Center panoramic roof (1) in lateral and longitudinal direction.

   To align, do not move panoramic roof (1) aid down, otherwise lift or reposition.

   Otherwise the spacers glued to the panoramic roof (1) can detach.

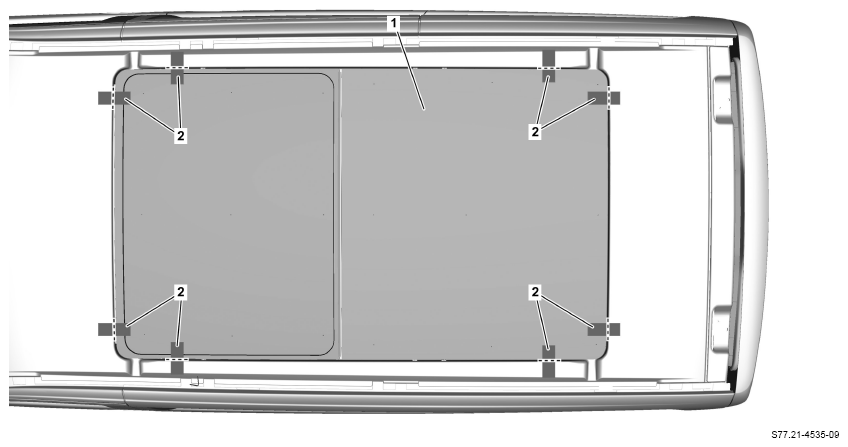

4. Mark installation position of aligned panoramic roof (1) with adhesive strips (2) as shown.
5. Cut adhesive strips (2) with knife.
6. Remove panoramic roof (1) upward, guide through panoramic roof cutout downward into vehicle interior and put down.
7. Remove panoramic roof (1) toward rear from vehicle and lay down on assembly stands with inside pointing upward.
