Replace Mount On Bumper - AR88.20-S-2150E
Model 447, 448
| Remove/install | |||
| 1 | Remove front bumper | AR88.20-S-2000E | |
| 2 | Remove washer fluid reservoir | AR82.35-S-6000E | |
| 3 | Remove alarm siren with additional battery (H3) | Model 447 with code FY1 (Anti-Theft Protection package) | AR80.50-S-9840E |

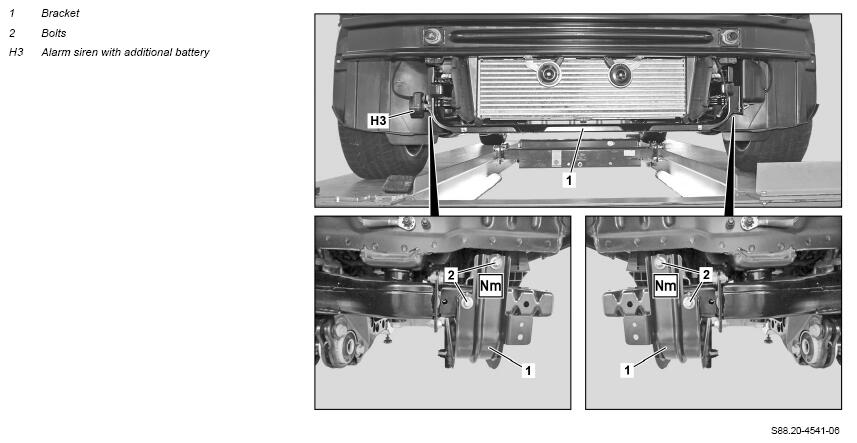

| 4 | Unscrew bolts (2) and remove bracket (1) | ||
| Notice | Notes on using electrical or pneumatic screwdrivers/impact wrenches | AH00.00-S-0017-01KOA | |
| *BA00.10-Z-1004-01KOA | |||
| 5 | Install in the reverse order |
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD
| Number | Designation | 8.8 | 10.9 | ||
|---|---|---|---|---|---|
| BA00.10-Z-1004-01KOA | M10 | Galvanized | Nm | 45 | 63 |
| Phosphated | Nm | 42 | 58 | ||
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD
| Number | Designation | 12.9 | ||
|---|---|---|---|---|
| BA00.10-Z-1004-01KOA | M10 | Galvanized | Nm | 76 |
| Phosphated | Nm | 70 | ||
