Remove/Install Roof Railing - AR88.80-S-9580E
Model 447.7/8
except code D12 (Roof railing)
except code D14 (Anodised roof rails)
Model 448.8
except code D14 (Anodised roof rails)

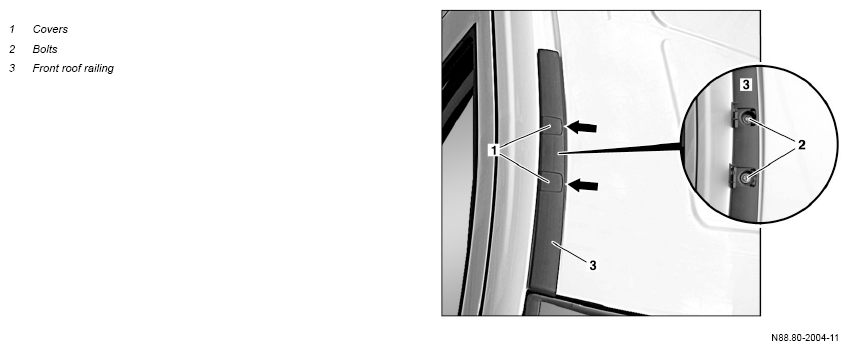

Shown on right side of vehicle
| Remove/install | |||
| 1 | Release covers (1) in areas of arrows with suitable tool, and fold up | ||
| 2 | Unscrew screws/bolts (2) | ||
| 3 | Remove front roof railing (3) | Ensure that front roof railing (3) is seated correctly. If adhesive strips are damaged ↓ Replace adhesive strips |
|
| Clean | |||
| 4 | Clean roof in area of front roof strip (3) | ||
| 5 | Install in the reverse order |
