Remove/Install Awning - AR88.30-S-7000E
Model 447.7/8
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Remove/install | |||

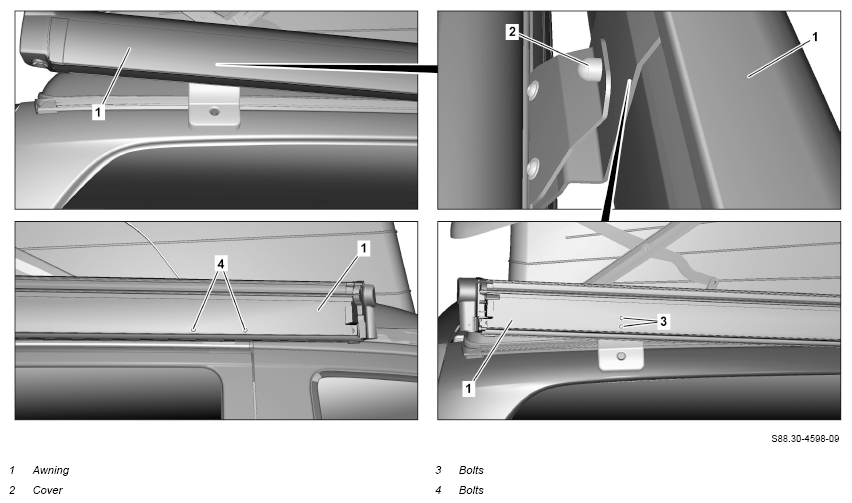

| 1 | Take off cover (2) | ||
| 2 | Roll out awning (1) and support | ||
| 3 | Unscrew bolts (3, 4) | *BA88.30-Z-1001-01KOF | |
| 4 | Roll in awning (1) and remove upward | ||
| 5 | Transfer holes for bolts (3, 4) to new awning (1) | If awning (1) is replaced. | |
| 6 | Install in the reverse order |
DETACHABLE BODY COMPONENTS, UNDERRIDE GUARD
| Number | Designation | Model 447 with code YS3 (Side-mounted awning) | |
|---|---|---|---|
| BA88.30-Z-1001-01KOF | Bolt, outer awning to bracket | Nm | 10 |
