Left Front Longitudinal Member CROSSMEMBER Prepare For Installation - Ar62.20-S-1856-05E

Model 447, 448

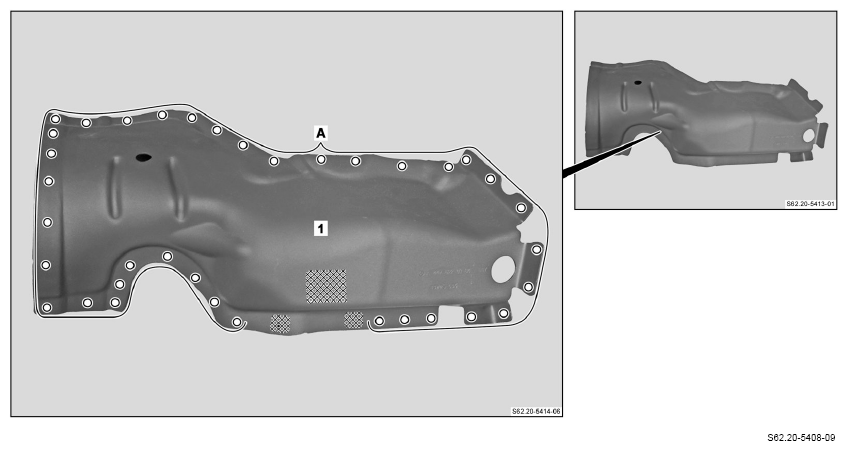

G16483355Courtesy of MERCEDES-BENZ USA
  1. Drill holes for MAG welding (area A).
  2. Grind mating surfaces on crossmember on front longitudinal member (1) in crosshatched areas and around holes (area A) down to bare metal.
  3. Remove shavings and drill chips.
