Left Front Longitudinal Member CROSSMEMBER Installation - Ar62.20-S-1856-06E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

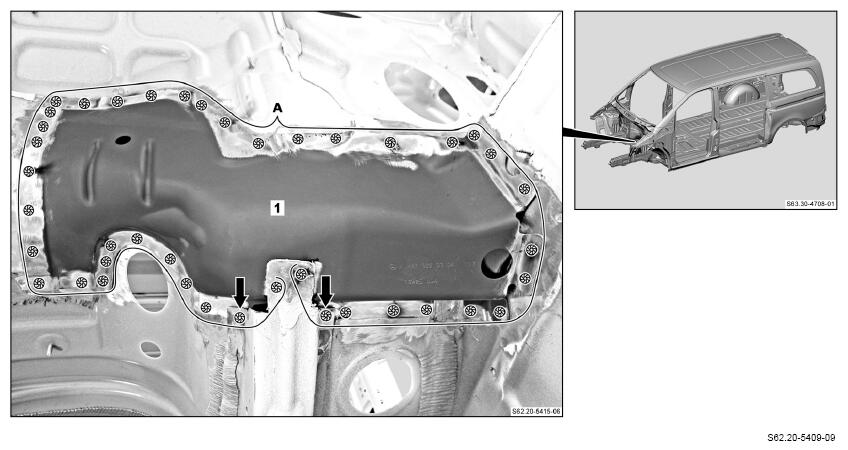

1. Install crossmember on front longitudinal member (1), fit and fix in place.
2. Drill pilot hole in crossmember on front longitudinal member (1) before inert gas welding (arrows).
3. Crossmember on front longitudinal member (1) (area A).
4. Clean weld joints.
5. Remove shavings and drill chips.
