Wiring Diagram Of Exterior Lights - PE82.10-S-2000-97VVH
Model 447.6 with code XM0 (Facelift) except code LG2 (LED Intelligent Light System) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) E1, E2, E3, E4
Model 447.7 with code XM0 (Facelift) except code LG2 (LED Intelligent Light System) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) E1, E2, E3, E4
| Code: | Designation: | Position: |
|---|---|---|

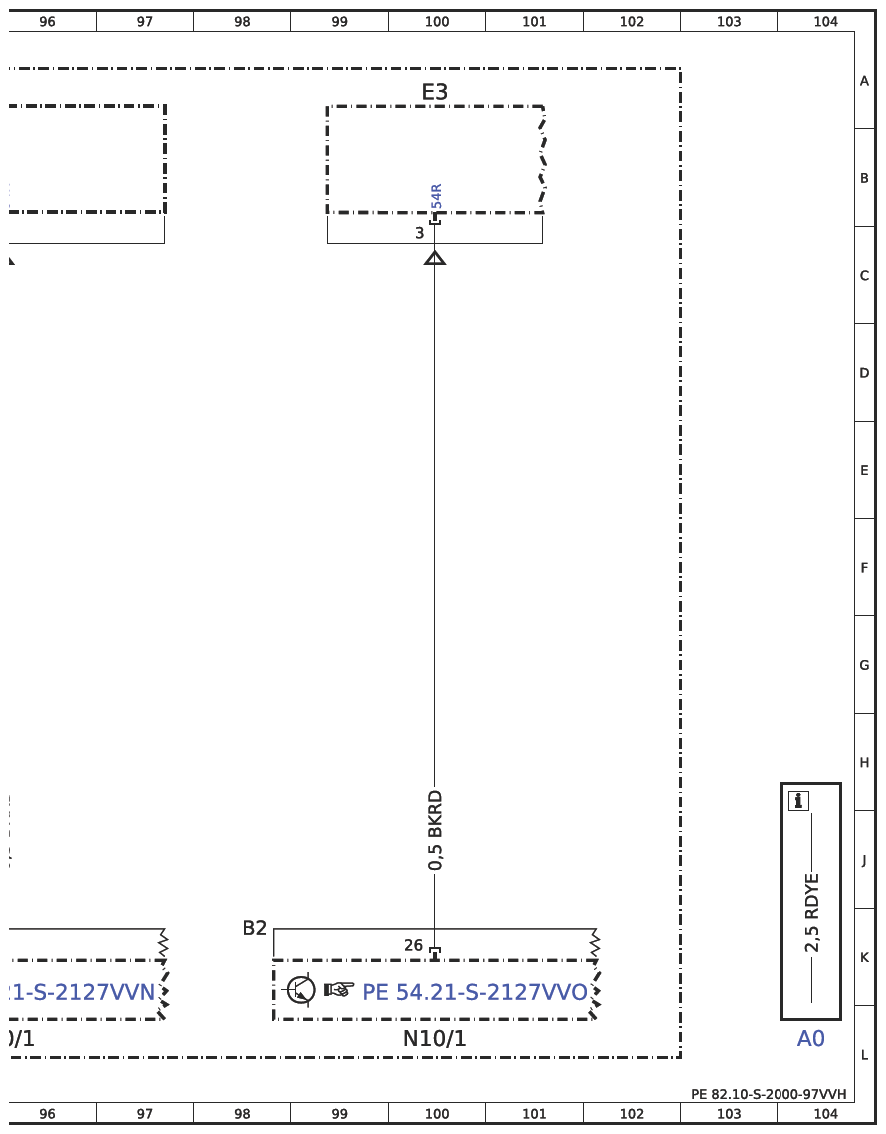

| A0 | Color code key | 104L |
| Code ER0 | Radio preinstallation | 8D |
| Code ER0 | Radio preinstallation | 11D |
| Code JW0 | Backup warning system | 65D |
| Code JW0 | Backup warning system | 63D |
| Code L84 | Additional rear turn signal lamps on roof | 70D |
| Code L84 | Additional rear turn signal lamps on roof | 74D |
| Code L84 | Additional rear turn signal lamps on roof | 85D |
| Code L84 | Additional rear turn signal lamps on roof | 89D |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 59A |
| Code R | Valid for right-hand drive vehicles | 81C |
| Code V85 | Smoker's package | 8D |
| Code V85 | Smoker's package | 11D |
| Code ZK2 | Taxi version with emergency alarm system | 8D |
| Code ZK2 | Taxi version with emergency alarm system | 11D |
| Code ZK3 | Taxi version without emergency alarm system | 8D |
| Code ZK3 | Taxi version without emergency alarm system | 11D |
| Code ZM7 | Rental vehicle package with emergency alarm system | 8E |
| Code ZM7 | Rental vehicle package with emergency alarm system | 11E |
| Code ZM8 | Rental vehicle package without emergency alarm system | 8E |
| Code ZM8 | Rental vehicle package without emergency alarm system | 11E |
| Code ZU7 | Canada version | 27B |
| Code ZU7 | Canada version | 70D |
| Code ZU7 | Canada version | 48B |
| Code ZU7 | Canada version | 85D |
| Code ZU7 | Canada version | 93A |
| Code ZU8 | USA version | 27B |
| Code ZU8 | USA version | 70D |
| Code ZU8 | USA version | 48B |
| Code ZU8 | USA version | 93A |
| Code ZU8 | USA version | 85D |

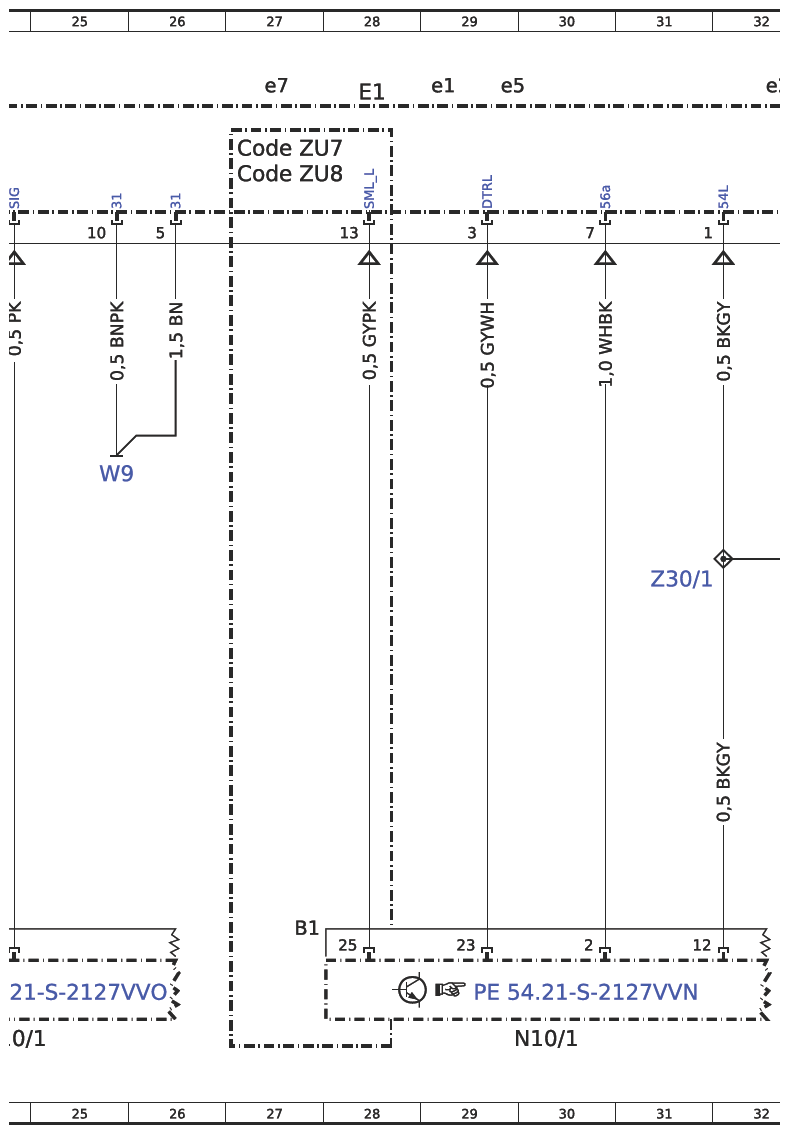

| E1 | Left front lamp unit | 20A |
| E1 | Left front lamp unit | 28A |
| E1 | Left front lamp unit | 36A |
| E1e1 | Left high beam | 29A |
| E1e2 | Left low beam | 32A |
| E1e5 | Left front turn signal lamp | 29A |
| E1e7 | Left parking light, standing light and daytime running light | 27A |

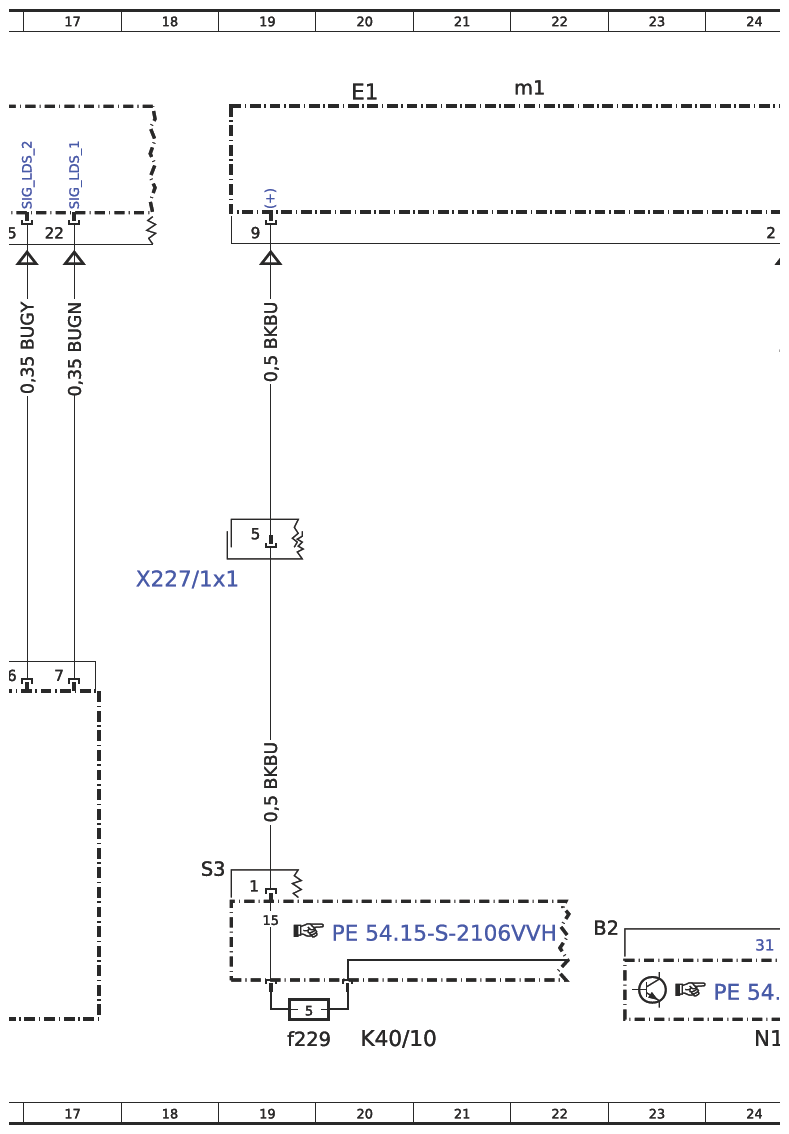

| E1m1 | Left headlamp range adjustment actuator motor | 22A |

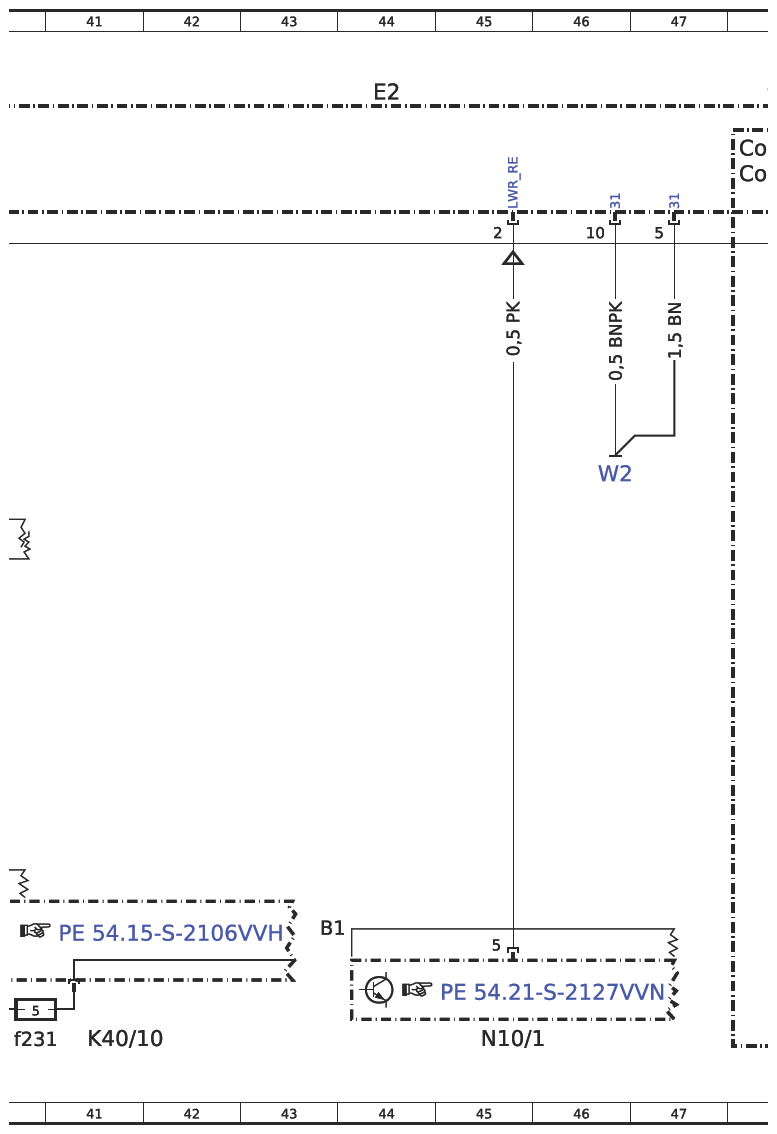

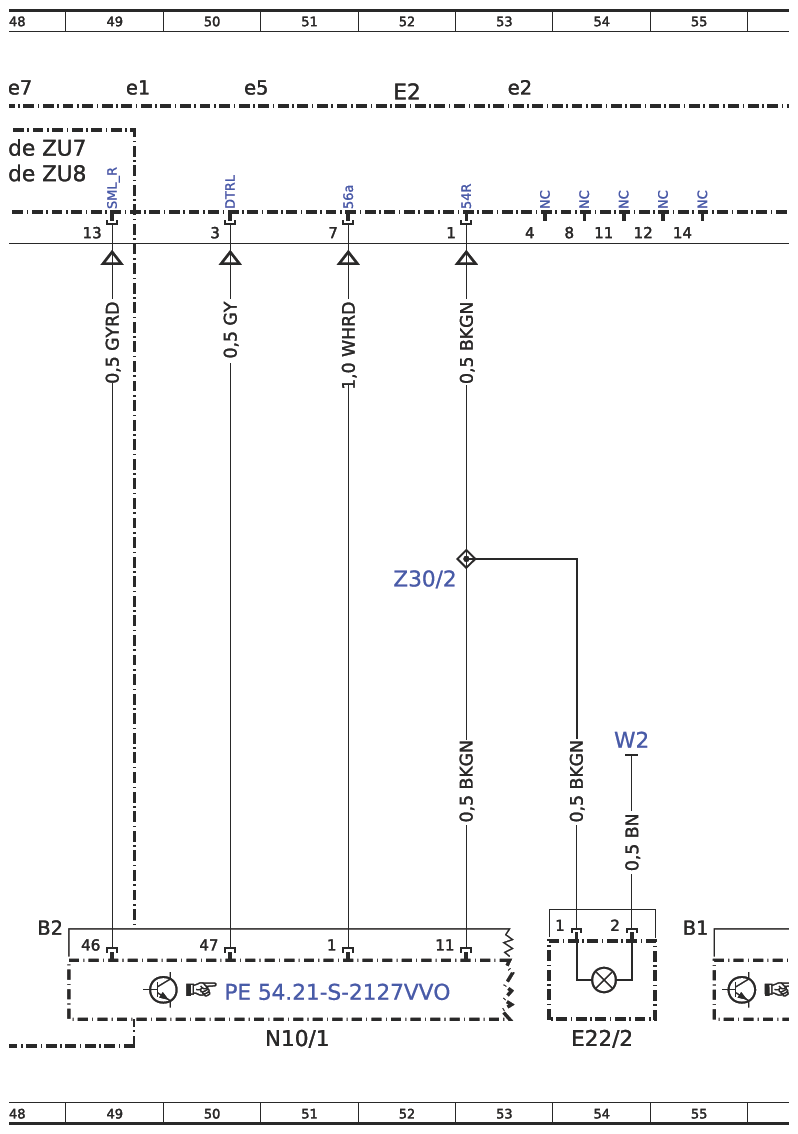

| E2 | Right front lamp unit | 44A |
| E2 | Right front lamp unit | 52A |
| E2 | Right front lamp unit | 58A |

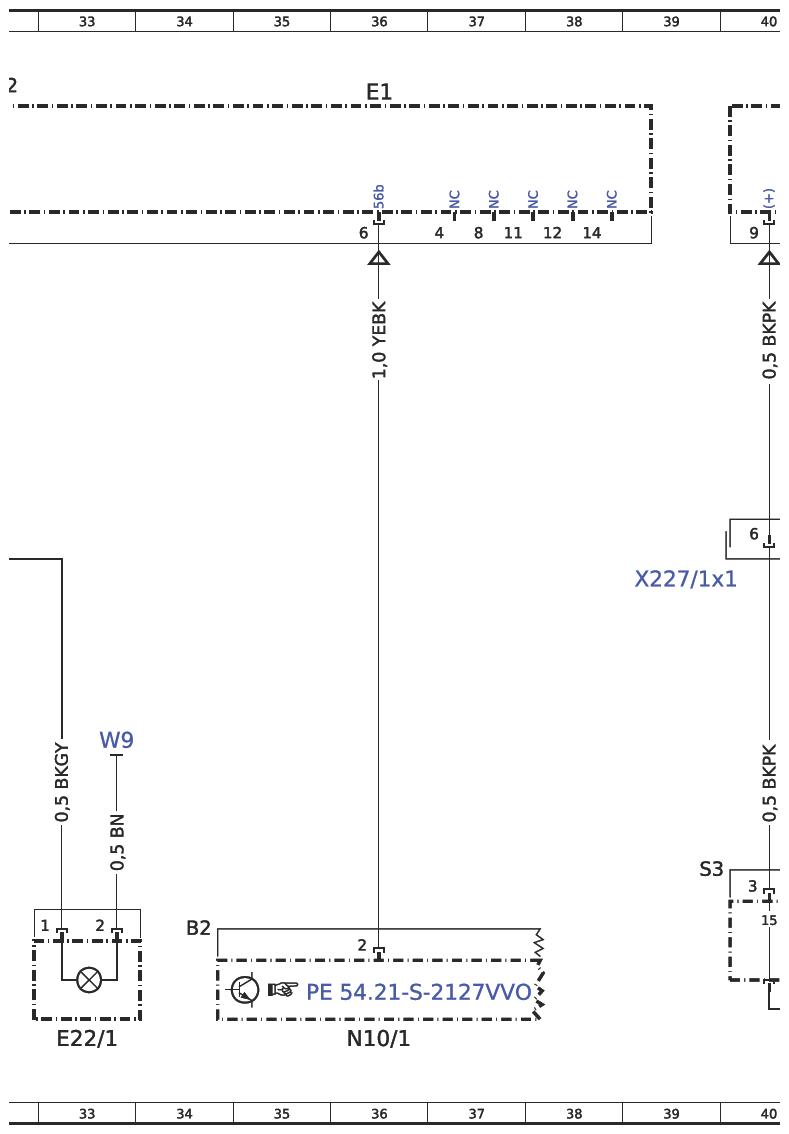

| E22/1 | Left additional turn signal lamp | 33L |
| E22/2 | Right additional turn signal lamp | 54L |
| E2e1 | Right high beam | 49A |
| E2e2 | Right low beam | 53A |
| E2e5 | Right front turn signal lamp | 50A |
| E2e7 | Right parking light, standing light and daytime running light | 48A |
| E2m1 | Right headlamp range adjustment actuator motor | - |

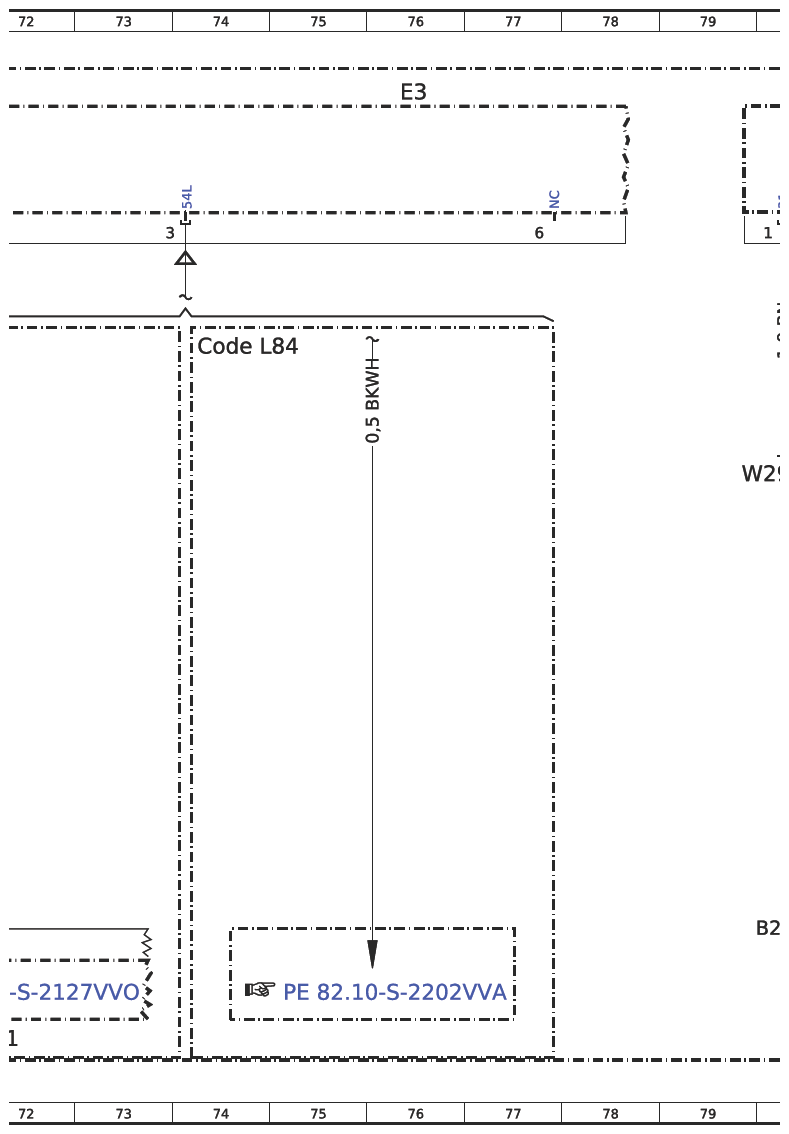

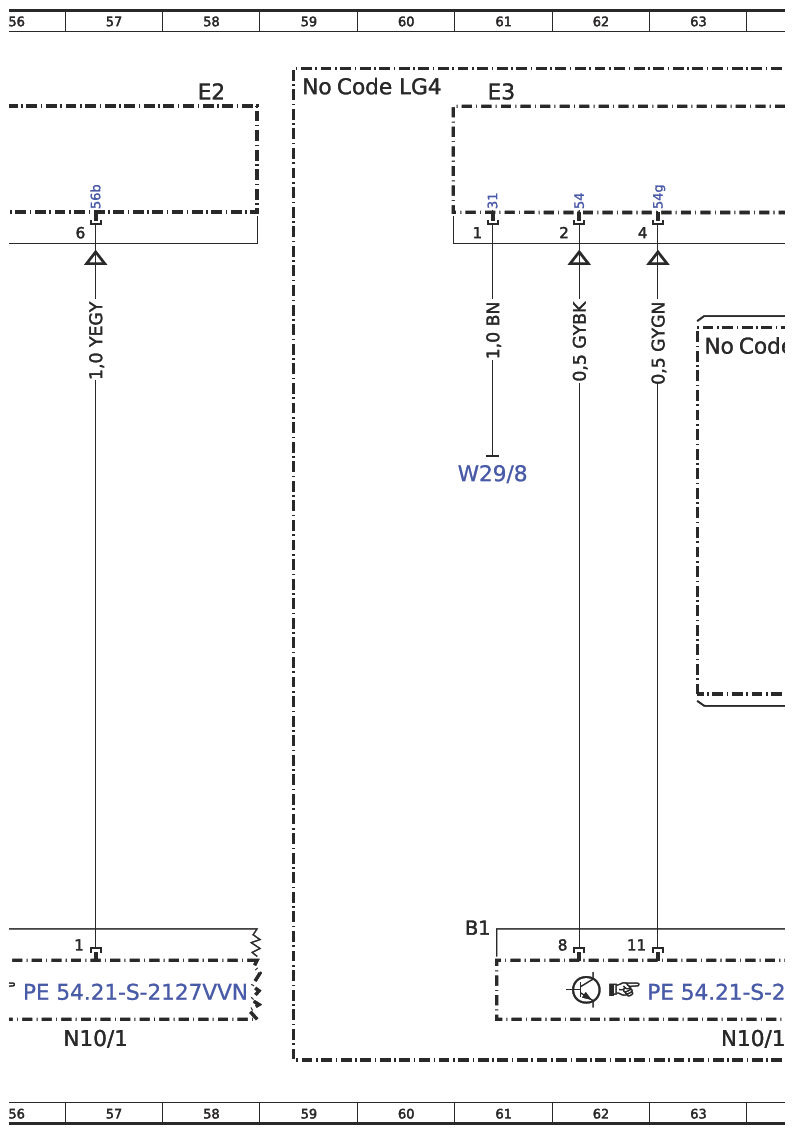

| E3 | Left rear lamp unit | 68A |
| E3 | Left rear lamp unit | 100A |
| E3 | Left rear lamp unit | 61A |
| E3 | Left rear lamp unit | 76A |
| E3e1 | Left rear turn signal lamp | 70A |
| E3e3 | Left backup lamp | 67A |
| E3e4 | Left taillight and brake light | 65A |
| E3e5 | Left rear fog lamp | 66A |

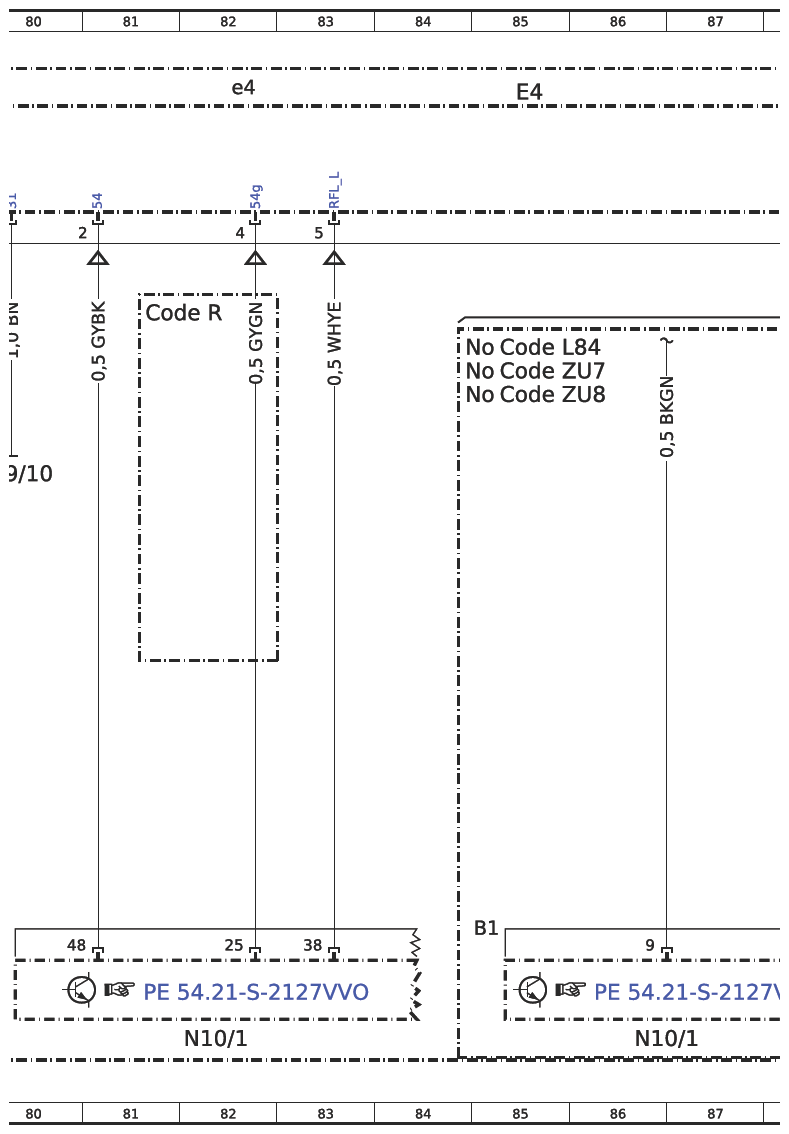

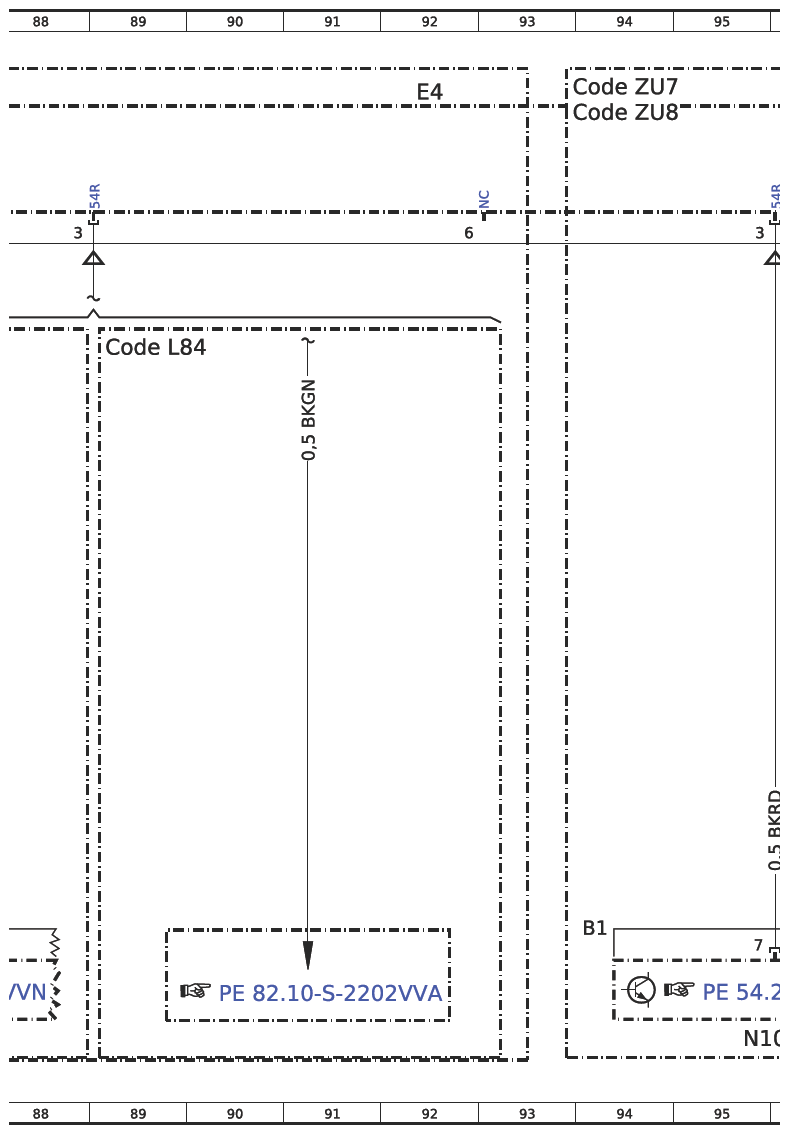

| E4 | Right rear lamp unit | 85A |
| E4 | Right rear lamp unit | 92A |
| E4e1 | Right rear turn signal lamp | - |
| E4e3 | Right backup lamp | - |
| E4e4 | Right taillight and brake light | 82A |
| E4e5 | Right rear fog lamp | - |

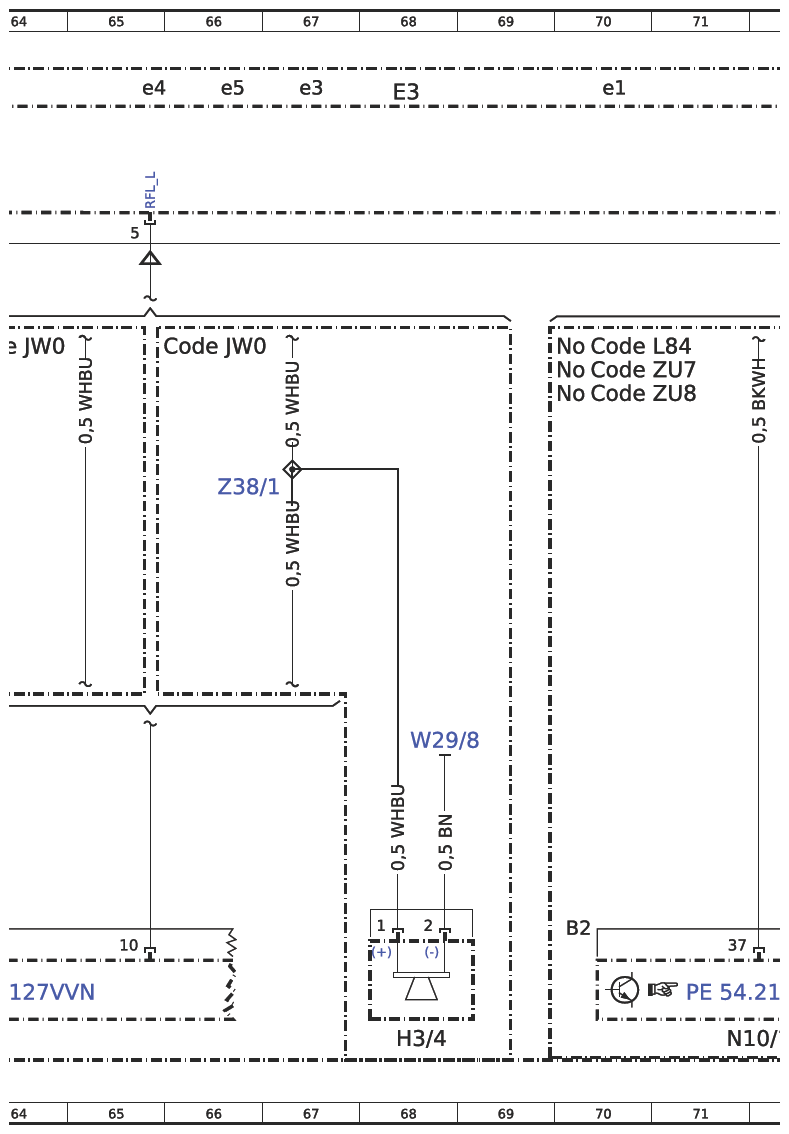

| H3/4 | Backup warning system horn | 68L |
| K40/10 | Engine compartment fuse and relay module | 20L |
| K40/10 | Engine compartment fuse and relay module | 41L |
| K40/10f229 | Fuse 229 | 19L |
| K40/10f231 | Fuse 231 | 40L |

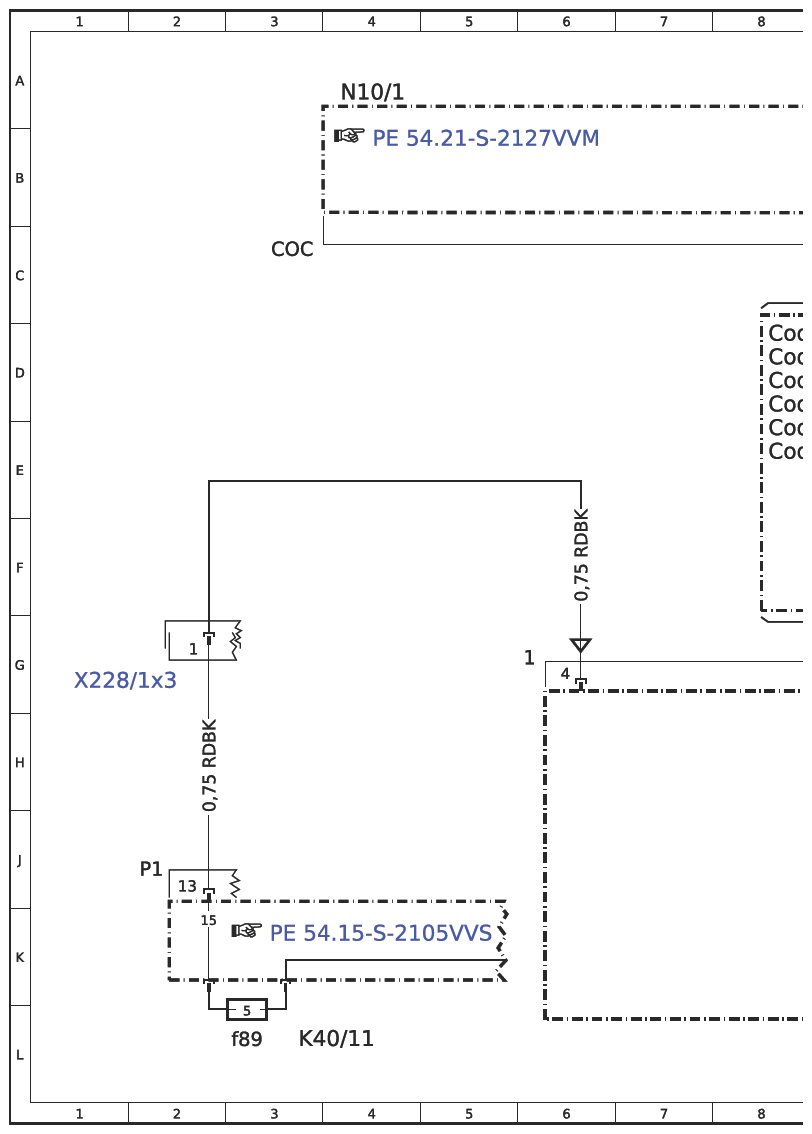

| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f89 | Fuse 89 | 3L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 24L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 30L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 36L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 45L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 51L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 57L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 63L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 82L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 4A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 12A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 71L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 95L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 86L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 100L |

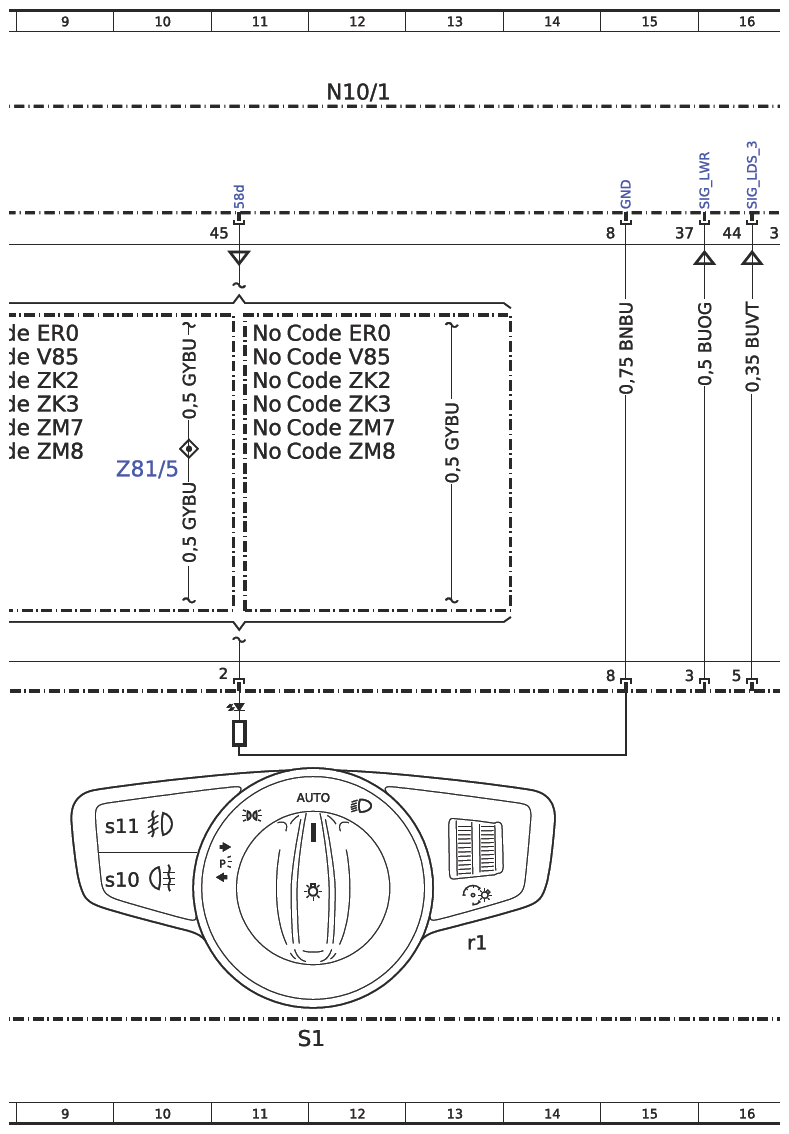

| S1 | Light switch | 11L |
| S1r1 | Instrument illumination brightness control | 13K |
| S1s10 | Rear fog light button | 10J |
| S1s11 | Front fog lamp button | 10J |
| W2 | Right front lamp unit ground point | 46E |
| W2 | Right front lamp unit ground point | 54H |
| W29/10 | Right D-pillar ground point | 80E |
| W29/8 | Left D-pillar ground point | 61E |
| W29/8 | Left D-pillar ground point | 68H |
| W9 | Left front lamp unit ground point | 25E |
| W9 | Left front lamp unit ground point | 33H |
| X227/1x1 | Main wiring harness/fuse and relay module electrical connector 1 | 18F |
| X227/1x1 | Main wiring harness/fuse and relay module electrical connector 1 | 39F |
| X228/1x3 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 2G |
| Z30/1 | Left turn signal lamp connector sleeve | 31F |
| Z30/2 | Right turn signal lamp connector sleeve | 52F |
| Z38/1 | Backup lamp connector sleeve | 66E |
| Z81/5 | Cockpit terminal 58d connector sleeve | 10E |
