Wiring Diagram For Pre-Fuse Box - PE54.15-S-2510-97VVD
Model 447.6 with Code XM0 (Facelift)
except Code M8E (Electric motor 85 kW/battery 60 kWh (usable))
except Code ME0 (Electric motor 85 kW)
except Code XM7 (MOPF II) F1
Model 447.7
with Code XM0 (Facelift)
except Code M7E (Electric motor 150 kW/battery 60 kWh (usable))
except Code ME0 (Electric motor 85 kW)
except Code ME4 (Electric motor 145 kW) except Code XM7 (MOPF II) F1
| Code : | Designation: | Position: |
|---|---|---|
| AO | Color Code key | 72L |
| Code CA4 | AIRMATIC | 47J |
| Code E28 | Additional battery for retrofitted consumers | 32J |
| Code E28 | Additional battery for retrofitted consumers | 59J |
| Code E36 | Additional battery cutoff relay | 59J |
| Code ES3 | 12V sockets for right and left rear seat rows | 32J |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 52J |
| Code G43 | 9G-TRONIC | 31J |
| Code G43 | 9G-TRONIC | 53J |
| Code JH3 | Communication module (LTE) for digital services | 5F |
| Code JH3 | Communication module (LTE) for digital services | 8F |
| Code JH4 | Communication module (LTE) for ERA-GLONASS | 11E |
| Code JH6 | Pre-installation for communication module for digital services (LTE) | 5F |
| Code JH6 | Pre-installation for communication module for digital services (LTE) | 8F |
| Code J02 | OLU pre-installation | 66J |
| Code MG3 | Engine OM 651 DE 22 LA 120 kW (163 hp) 3800 rpm | 18E |
| Code MG3 | Engine OM 651 DE 22 LA 120 kW (163 hp) 3800 rpm | 48J |
| Code MG4 | Engine OM 651 DE 22 LA 140 kW (190 hp) 3800 rpm | 18E |
| Code MG4 | Engine OM 651 DE 22 LA 140 kW (190 hp) 3800 rpm | 49J |
| Code MG7 | Engine OM 651 DE 22 LA 100 kW 3800 rpm | 18E |
| Code MG7 | Engine OM 651 DE 22 LA 100 kW 3800 rpm | 49J |
| Code MJ8 | ECO start/stop function | 28B |
| Code MJ8 | ECO start/stop function | 26E |
| Code MM1 | Engine M274 DEH 20 LA 155 kW (211 hp) 5500 rpm | 51J |
| Code MM1 | Engine M274 DEH 20 LA 155 kW (211 hp) 5500 rpm | 53J |
| Code MUO | OM 654 DE 20 LA 75 kW (102 hp) 3800 rpm | 23E |
| Code MUO | OM 654 DE 20 LA 75 kW (102 hp) 3800 rpm | 55J |
| Code MU2 | OM 654 DE 20 LA 100 kW (136 hp) 3800 rpm | 23E |
| Code MU2 | OM 654 DE 20 LA 100 kW (136 hp) 3800 rpm | 56J |
| Code MU4 | OM 654 DE 20 LA 120 kW (163 hp) 3800 rpm | 23E |
| Code MU4 | OM 654 DE 20 LA 120 kW (163 hp) 3800 rpm | 56J |
| Code MU6 | OM 654 DE 20 LA 140 kW (190 hp) 3800 rpm | 23F |
| Code MU6 | OM 654 DE 20 LA 140 kW (190 hp) 3800 rpm | 56J |
| Code MU8 | OM 654 DE 20 LA 176 kW (239 hp) 3800 rpm | 23F |
| Code MU8 | OM 654 DE 20 LA 176 kW (239 hp) 3800 rpm | 56J |
| Code MX1 | Engine OM 622 DE 16 LA 65 kW (88 hp) 3800 rpm | 21E |
| Code MX1 | Engine OM 622 DE 16 LA 65 kW (88 hp) 3800 rpm | 50J |
| Code MX2 | Engine OM 622 DE 16 LA 84 kW (114 hp) 3800 rpm | 21E |
| Code MX2 | Engine OM 622 DE 16 LA 84 kW (114 hp) 3800 rpm | 50J |
| Code MX4 | Engine OM 622 DE 17 LA 75 kW (102 hp) 3800 rpm | 21E |
| Code MX4 | Engine OM 622 DE 17 LA 75 kW (102 hp) 3800 rpm | 54J |
| Code MX8 | Engine OM 622 DE 17 LA 100 kW (136 hp) 3800 rpm | 21F |
| Code MX8 | Engine OM 622 DE 17 LA 100 kW (136 hp) 3800 rpm | 54) |
| Code S00 | Airbag control unit generation AB12 | 8E |
| Code S00 | Airbag control unit generation AB12 | 5E |
| Code S00 | Airbag control unit generation AB12 | 12E |
| Code S00 | Airbag control unit generation AB12 | 15E |
| Code SHI | Driver thorax-pelvis side airbag | 5E |
| Code SHI | Driver thorax-pelvis side airbag | 8E |
| Code SH2 | Front passenger thorax-pelvis side airbag | 5E |
| Code SH2 | Front passenger thorax-pelvis side airbag | 8E |
| Code SH8 | Window airbag for driver, front passenger and rear passenger compartment | 5F |
| Code SH8 | Window airbag for driver, front passenger and rear passenger compartment | 8F |
| Code SH9 | Window airbags for driver and front passenger | 5F |
| Code SH9 | Window airbags for driver and front passenger | 8F |
| Code ZH6 | Marco Polo ACTIVITY | 59J |
| Code ZU7 | Canada version | 11E |
| Code ZU7 | Canada version | 33J |
| Code ZU8 | USA version | 11F |
| Code ZU8 | USA version | 33J |

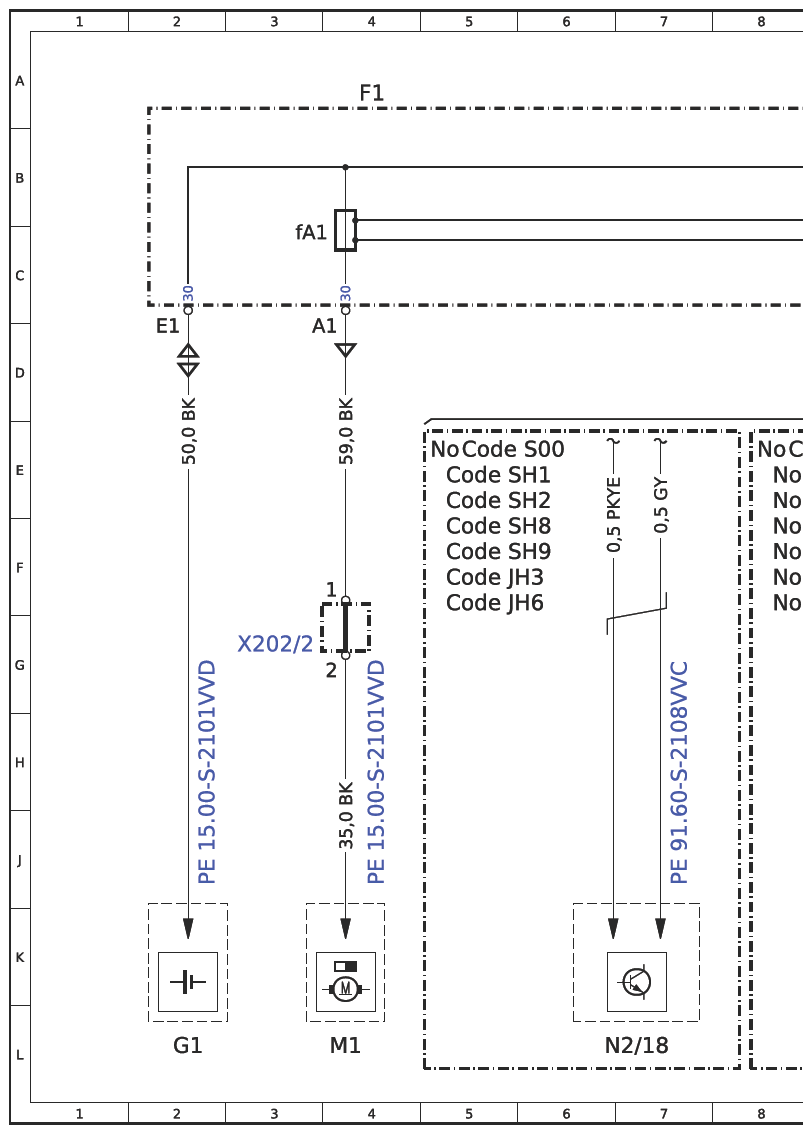

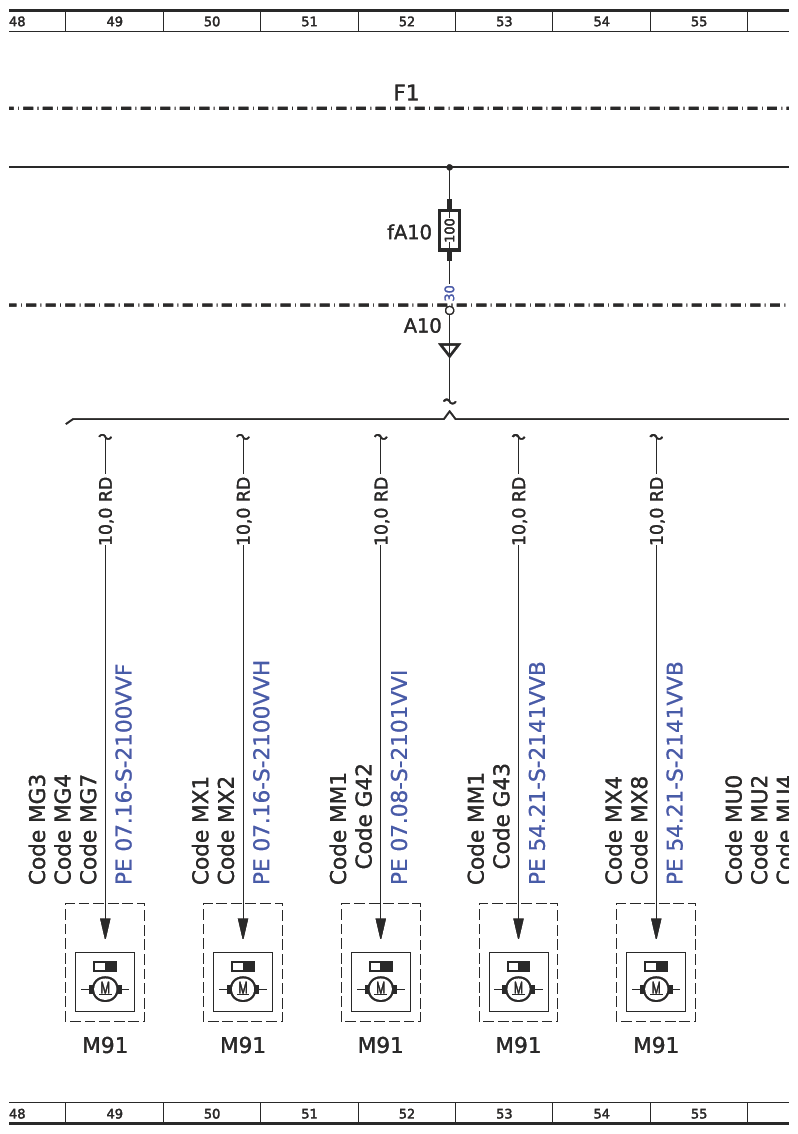

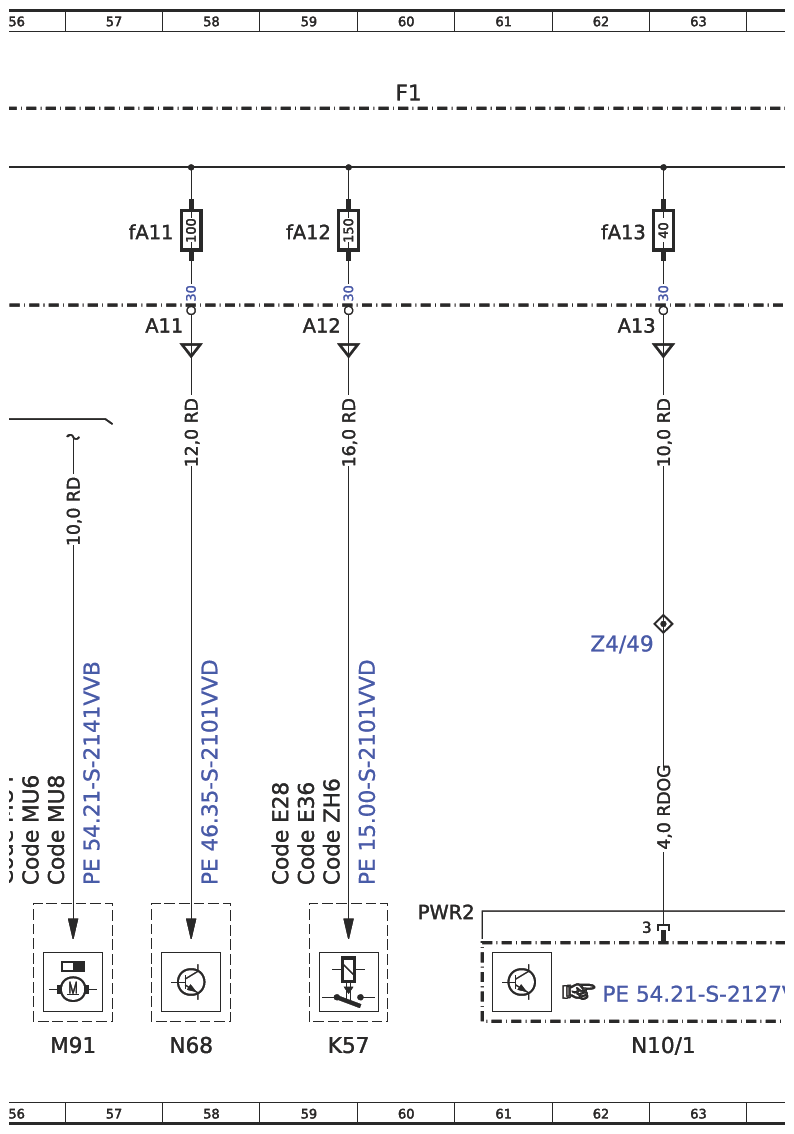

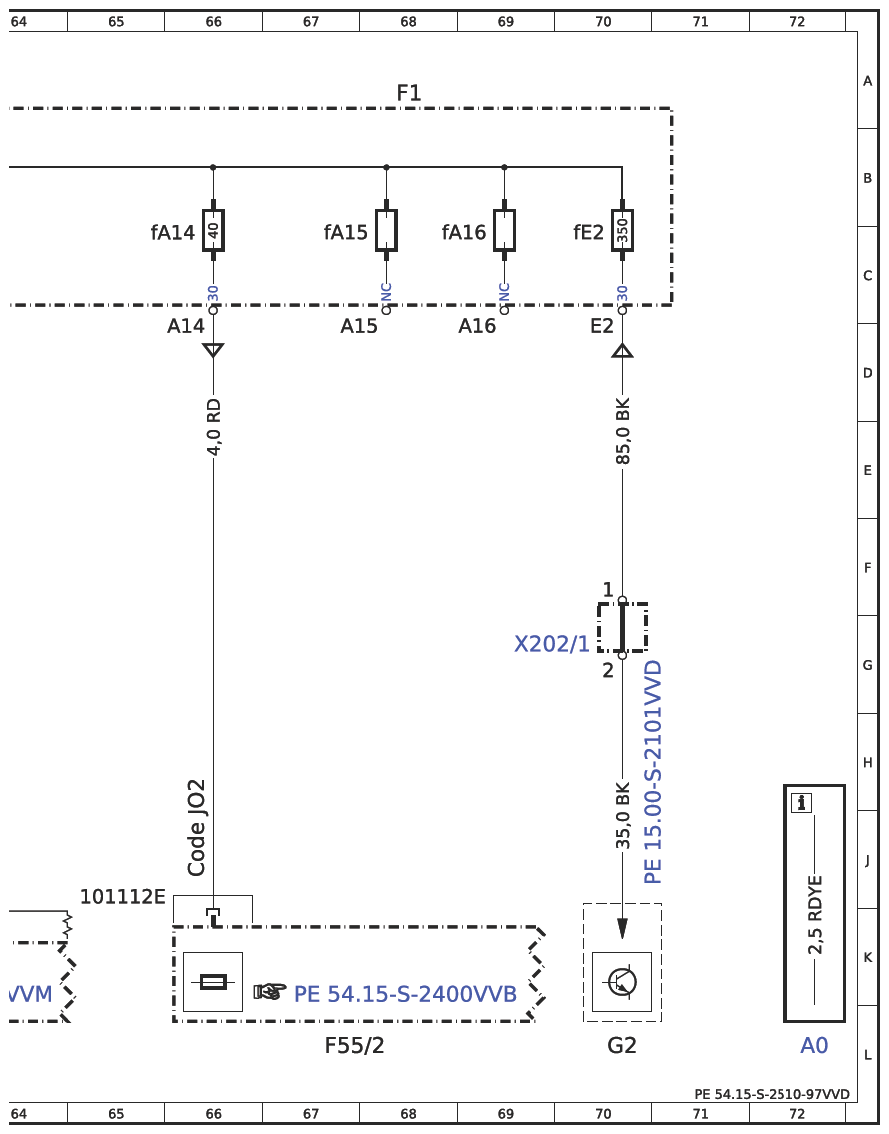

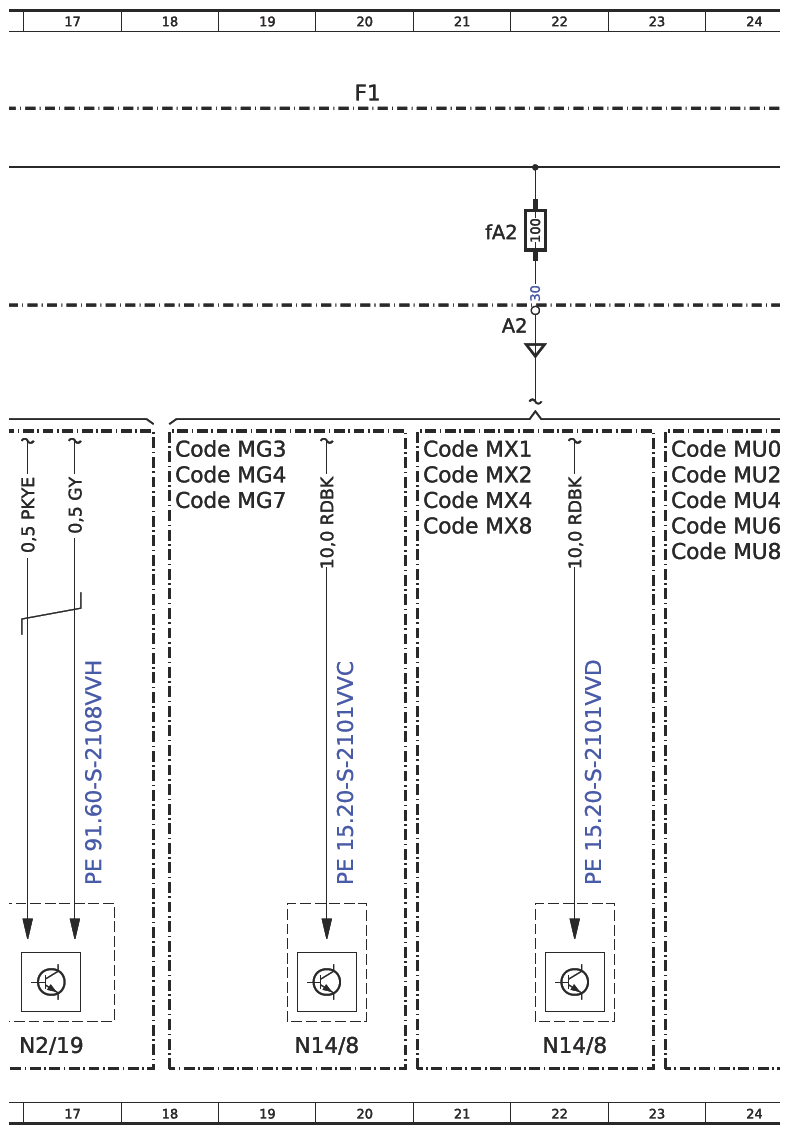

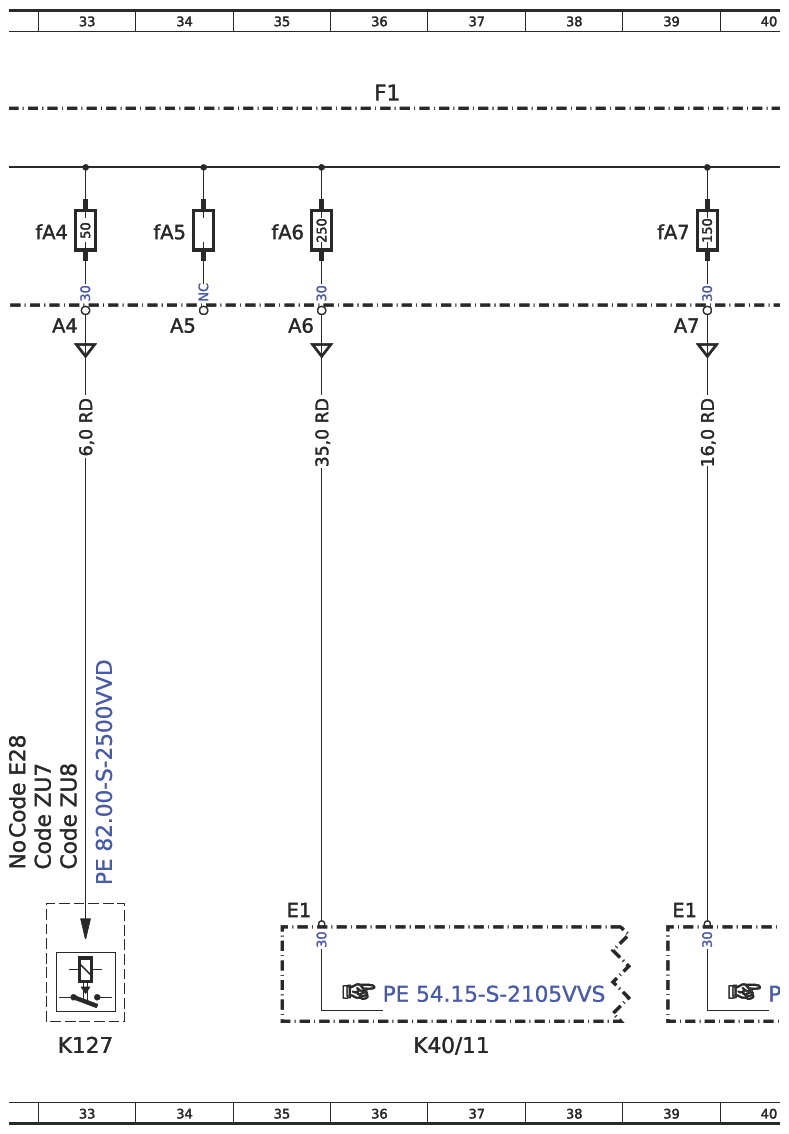

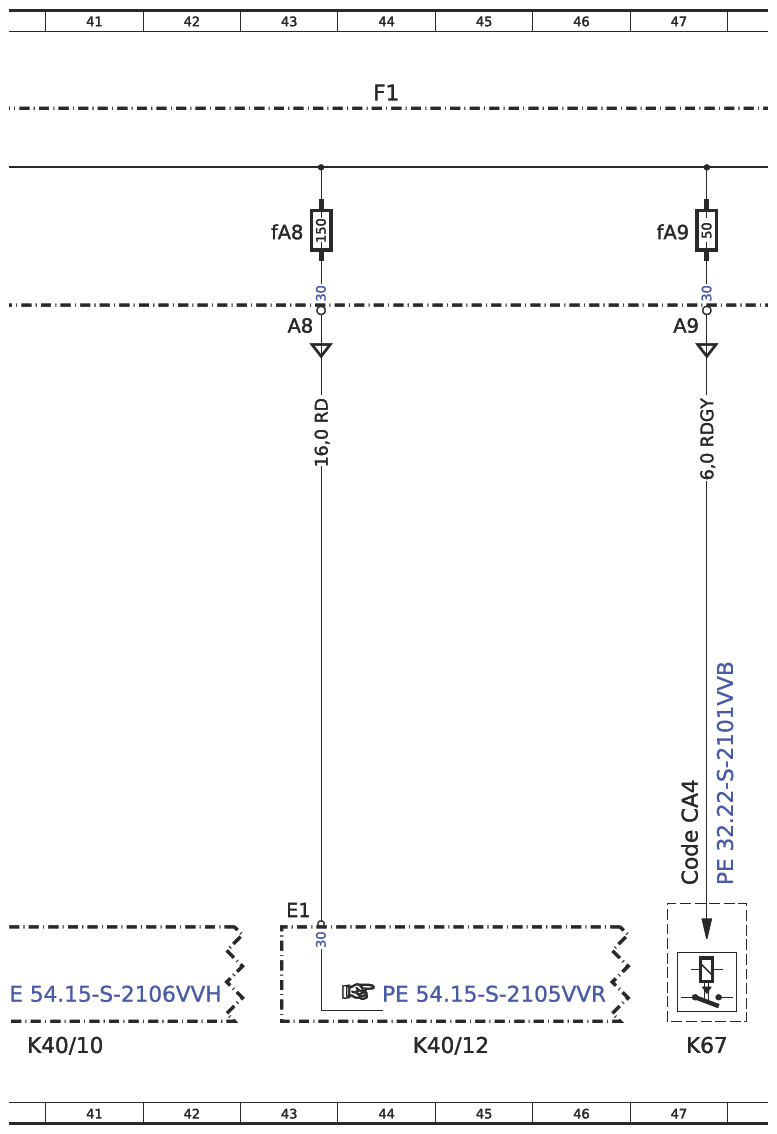

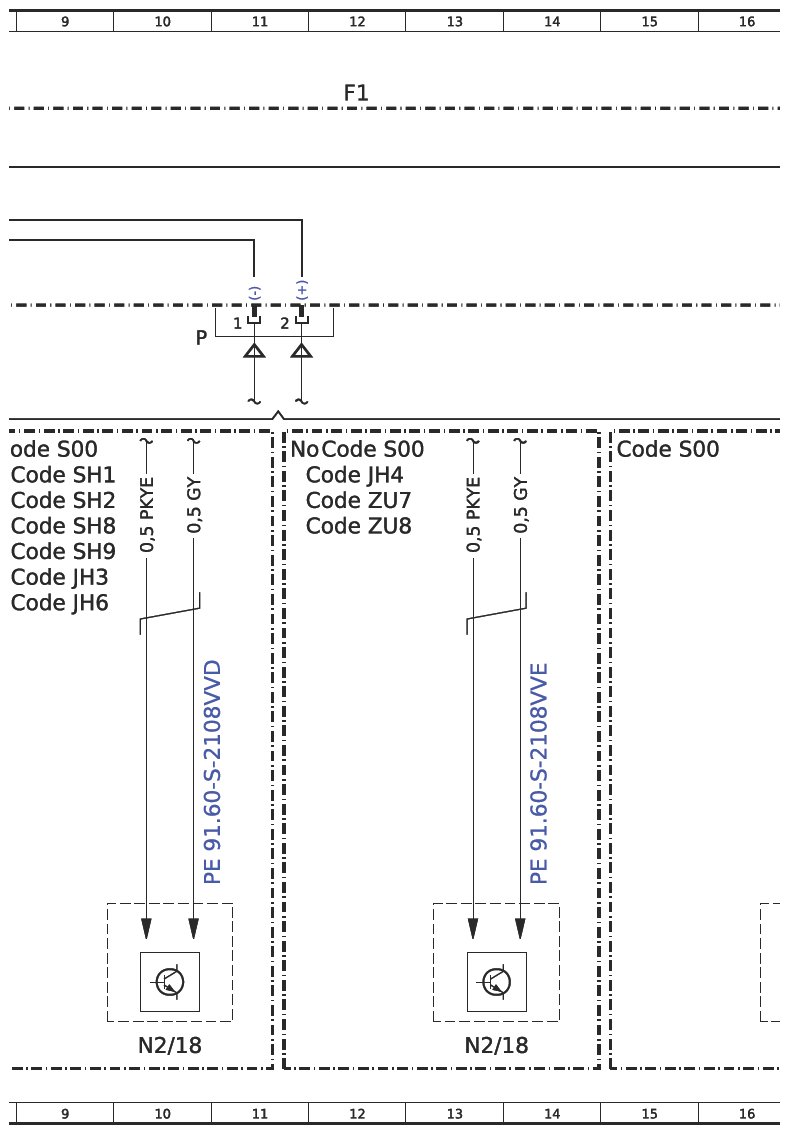

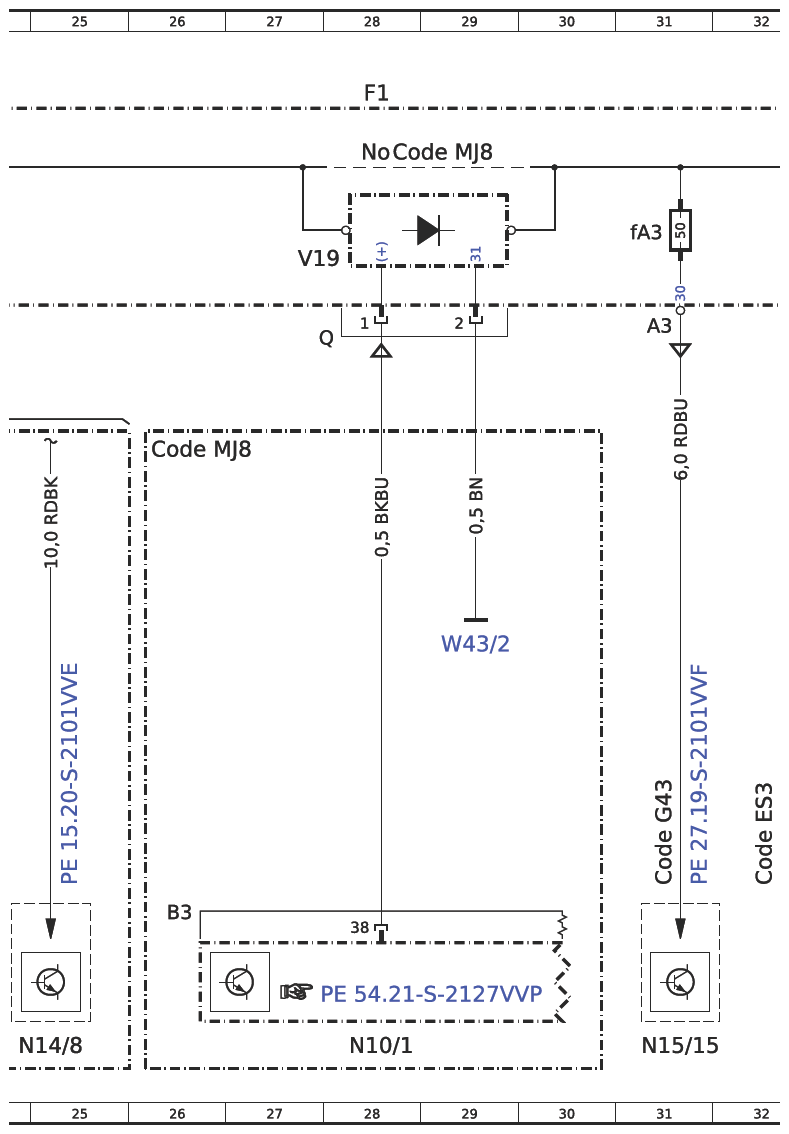

| F1 | Pre-fuse box | 4A |
| F1 | Pre-fuse box | 36A |
| F1 | Pre-fuse box | 52A |
| F1 | Pre-fuse box | 12A |
| F1 | Pre-fuse box | 28A |
| F1 | Pre-fuse box | 20A |
| F1 | Pre-fuse box | 60A |
| F1 | Pre-fuse box | 68A |
| F1 | Pre-fuse box | 44A |
| F1fA1 | Pyrofuse A1 | 3C |
| F1fA10 | Pre-fuse A10 | 52C |
| F1fA11 | Pre-fuse A11 | 57C |
| F1fA12 | Pre-fuse A12 | 59C |
| F1fA13 | Pre-fuse A13 | 62C |
| F1fA14 | Pre-fuse A14 | 66C |
| F1fA2 | Pre-fuse A2 | 21C |
| F1fA3 | Pre-fuse A3 | 31C |
| F1fA4 | Pre-fuse A4 | 33C |
| F1fA6 | Pre-fuse A6 | 35C |
| F1fA7 | Pre-fuse A7 | 39C |
| F1fA8 | Pre-fuse A8 | 43C |
| F1fA9 | Pre-fuse A9 | 47C |
| F1fE2 | Pre-fuse E2 | 70C |
| F55/2 | Fuse block 2 (9-pin) | 67L |
| G1 | On-board electrical system battery | 2L |
| G2 | Alternator | 70L |
| K127 | Rear passenger compartment socket relay | 33L |
| K40/10 | Engine compartment fuse and relay module | 41L |
| K40/11 | Firewall fuse and relay module | 37L |
| K40/12 | Fuse and relay module, front passenger footwell | 44L |
| K57 | Battery cutoff relay | 59L |
| K67 | AIRMATIC relay | 47L |
| M1 | Starter | 4L |
| M91 | Electric fan | 53L |
| M91 | Electric fan | 56L |
| M91 | Electric fan | 52L |
| M91 | Electric fan | 49L |
| M91 | Electric fan | 50L |
| M91 | Electric fan | 54L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 62L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 28L |
| N14/8 | Glow output stage | 19L |
| N14/8 | Glow output stage | 22L |
| N14/8 | Glow output stage | 25L |
| N15/15 | Fully integrated transmission control (VGS) electric controller unit | 31L |
| N2/18 | Supplemental restraint system (SRS) control unit | 7L |
| N2/18 | Supplemental restraint system (SRS) control unit | 10L |
| N2/18 | Supplemental restraint system (SRS) control unit | 13L |
| N2/19 | Supplemental restraint system (SRS) control unit | 17L |
| N68 | Electrical power steering (ES) control unit | 58L |
| V19 | ECO start/stop function diode | 28C |
| W43/2 | Right vehicle interior firewall ground point | 29G |
| X202/1 | Pre-fuse box/alternator electrical distributor rail | 70G |
| X202/2 | Pre-fuse box/starter electrical distributor rail | 3G |
| Z4/49 | Pre-fuse box tml. 30 connector sleeve | 62G |
