Wiring Diagram For Fuse Block (9 Fuses) - PE54.15-S-2400-97VKA
Model 447 with Code XM7 (MOPF II) F55/1
| Code : | Designation: | Position: |
|---|---|---|
| A0 | Color Code key | 40L |
| A79/3 | Power electronics control unit | 28L |
| Code CA4 | AIRMATIC | 3H |
| Code CA4 | AIRMATIC | 22J |
| Code J03 | OLU Connect Unit | 14H |
| Code J03 | OLU Connect Unit | 7H |
| Code J03 | OLU Connect Unit | 12H |
| Code J03 | OLU Connect Unit | 32J |
| F1 | Pre-fuse box | 18L |
| F1 | Pre-fuse box | 8L |
| F1 | Pre-fuse box | 14L |

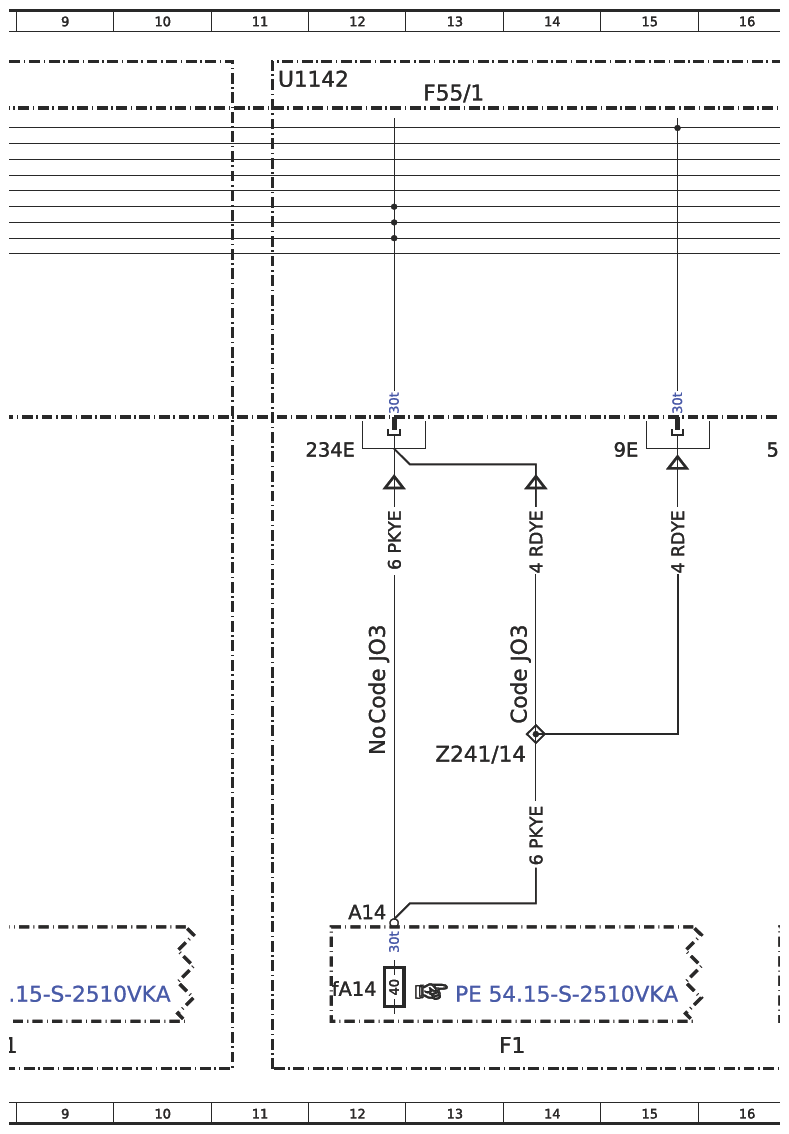

| F1fA14 | Pre-fuse A14 | 7K |
| F1fA14 | Pre-fuse A14 | 12K |
| F1fA15 | Pre-fuse A15 | 17K |

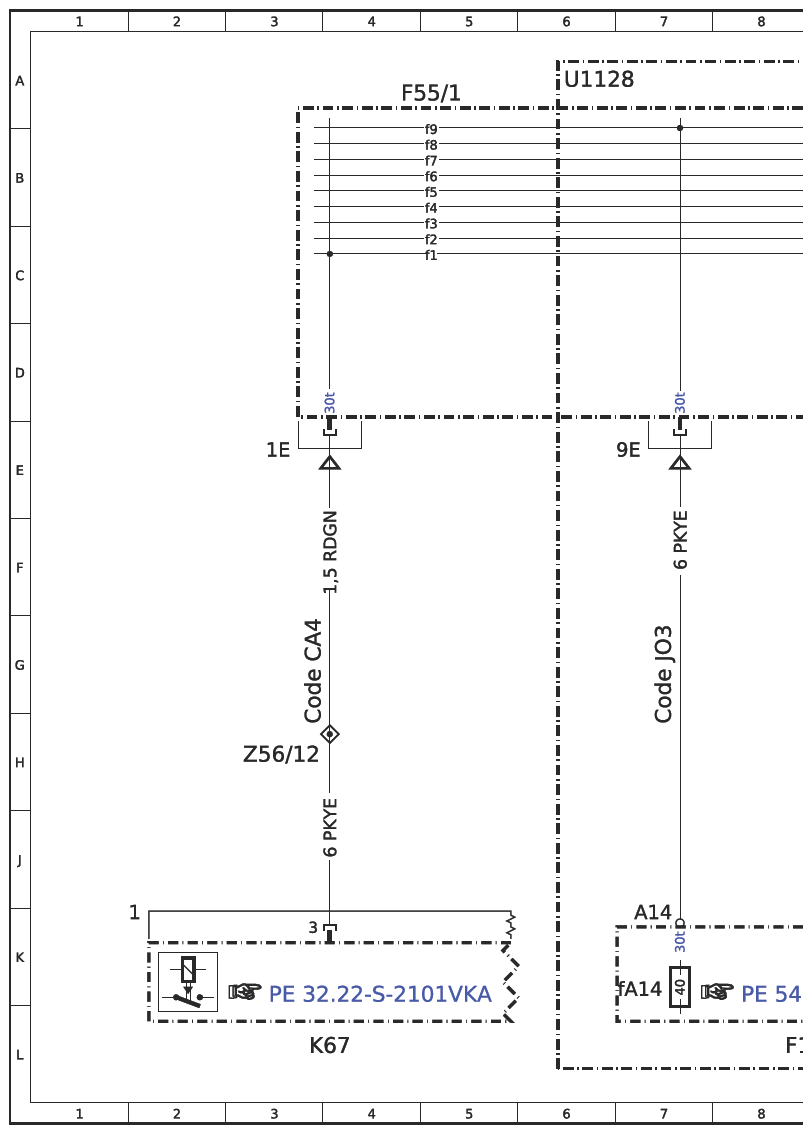

| F55/1 | Fuse block (1, 9-pin) | 4A |
| F55/1 | Fuse block (1, 9-pin) | 21A |
| F55/1 | Fuse block (1, 9-pin) | 29A |
| F55/1 | Fuse block (1, 9-pin) | 13A |

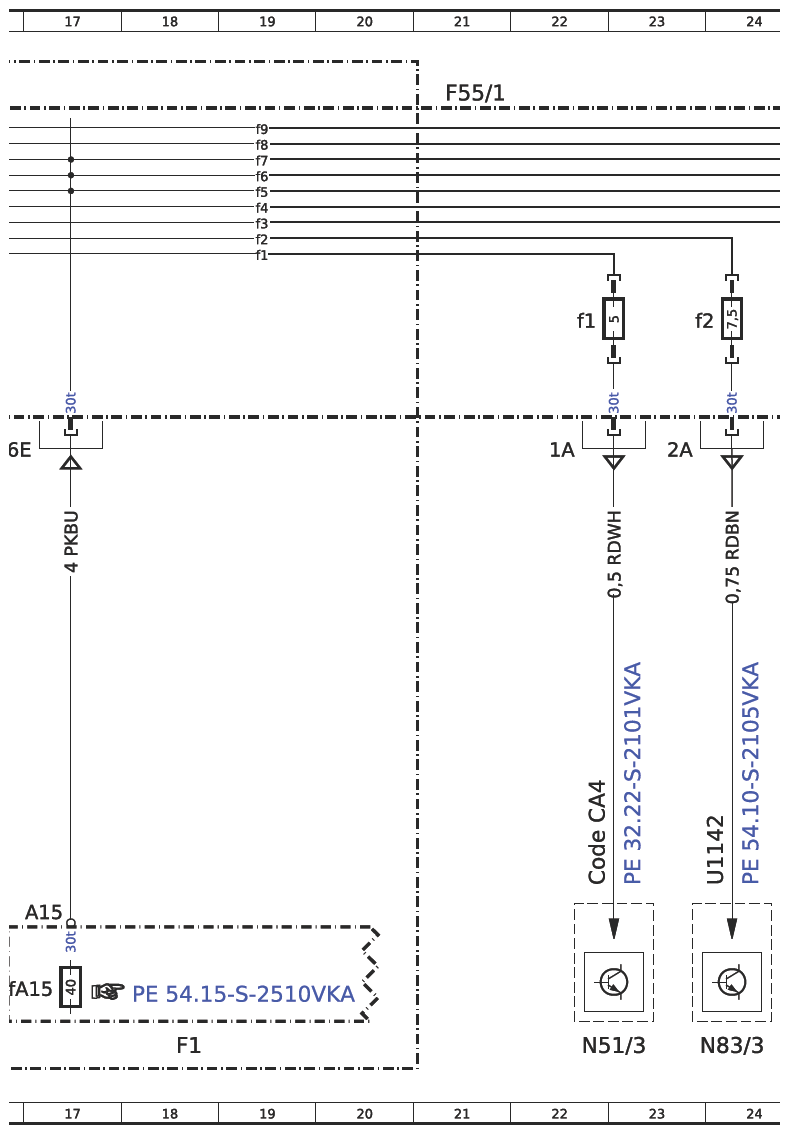

| F55/1 f 1 | Fuse 1 | 22D |
| F55/1f2 | Fuse 2 | 23D |

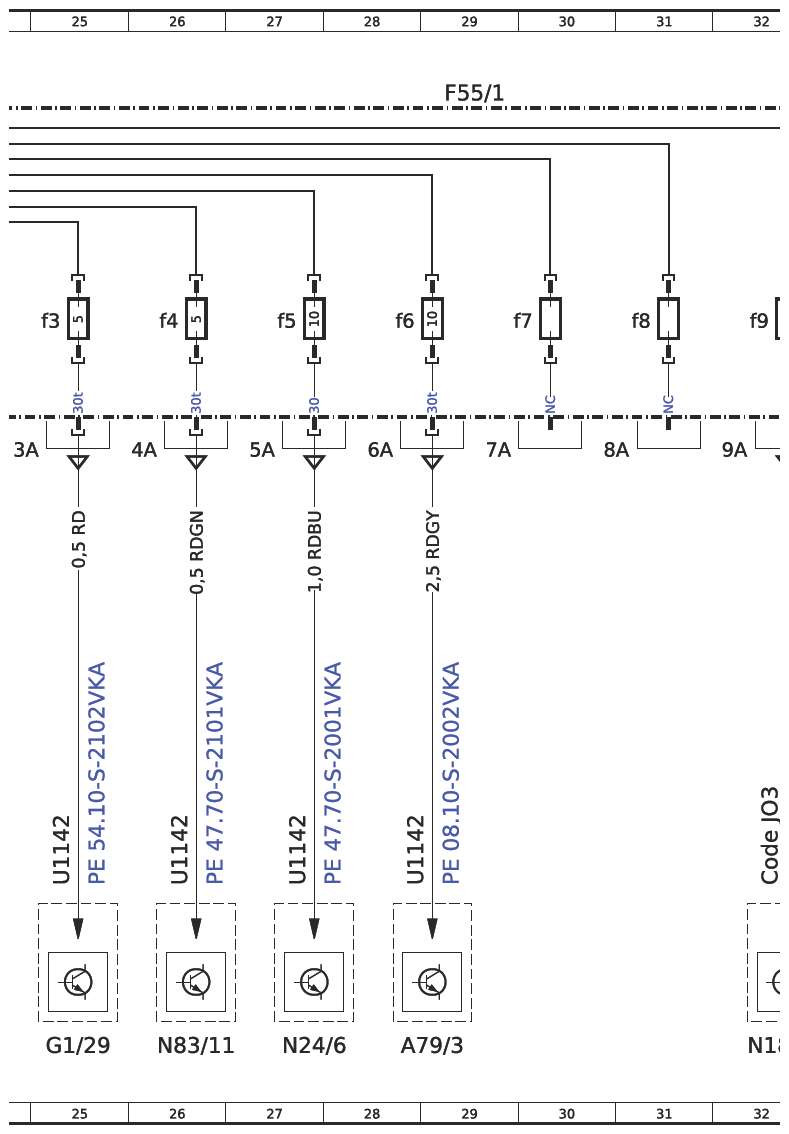

| F55/1f3 | Fuse 3 | 25D |
| F55/1f4 | Fuse 4 | 26D |
| F55/1f5 | Fuse5 | 27D |
| F55/1f6 | Fuse 6 | 28D |
| F55/1f9 | Fuse 9 | 32D |
| G1/29 | High-voltage battery | 25L |
| K67 | AIRMATIC relay | 3L |

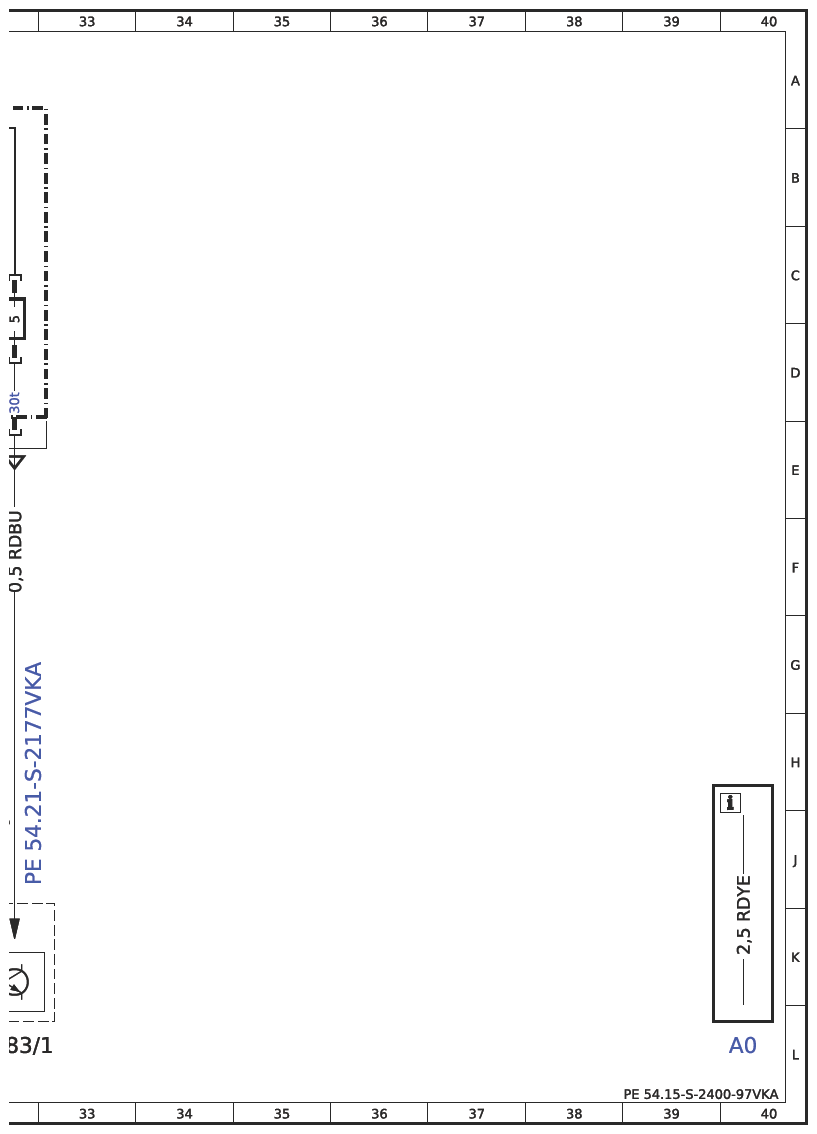

| N183/1 | Onboard Logic Unit (OLU) control unit - Connect Unit | 32L |
| N24/6 | DC charge-connection unit | 27L |
| N51/3 | AIRMATIC control unit | 22L |
| N83/11 | Alternating current charger for high-voltage battery | 26L |
| N83/3 | DC/DC converter control unit | 24L |
| U1128 | Valid for combustion engine | 6A |
| U1142 | Valid for electric vehicle | 11A |
| U1142 | Valid for electric vehicle | 24J |
| U1142 | Valid for electric vehicle | 25J |
| U1142 | Valid for electric vehicle | 26J |
| U1142 | Valid for electric vehicle | 27J |
| U1142 | Valid for electric vehicle | 29J |
| Z241/14 | Tml. 30 connector sleeve | 13H |
| Z56/12 | Voltage supply connector sleeve | 3H |
