(Wiring Diagram For Pre-Fuse Box - PE54.15-S-2510-97VMA)
Model 447.6/7 with Code ME0 (Electric motor 85 kW) except Code XM7 (MOPF II) F1
Model 447.6 with Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) F1
Model 447.7 with Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) F1
Model 447.7 with Code ME4 (Electric motor 145 kW) except Code XM7 (MOPF II) F1

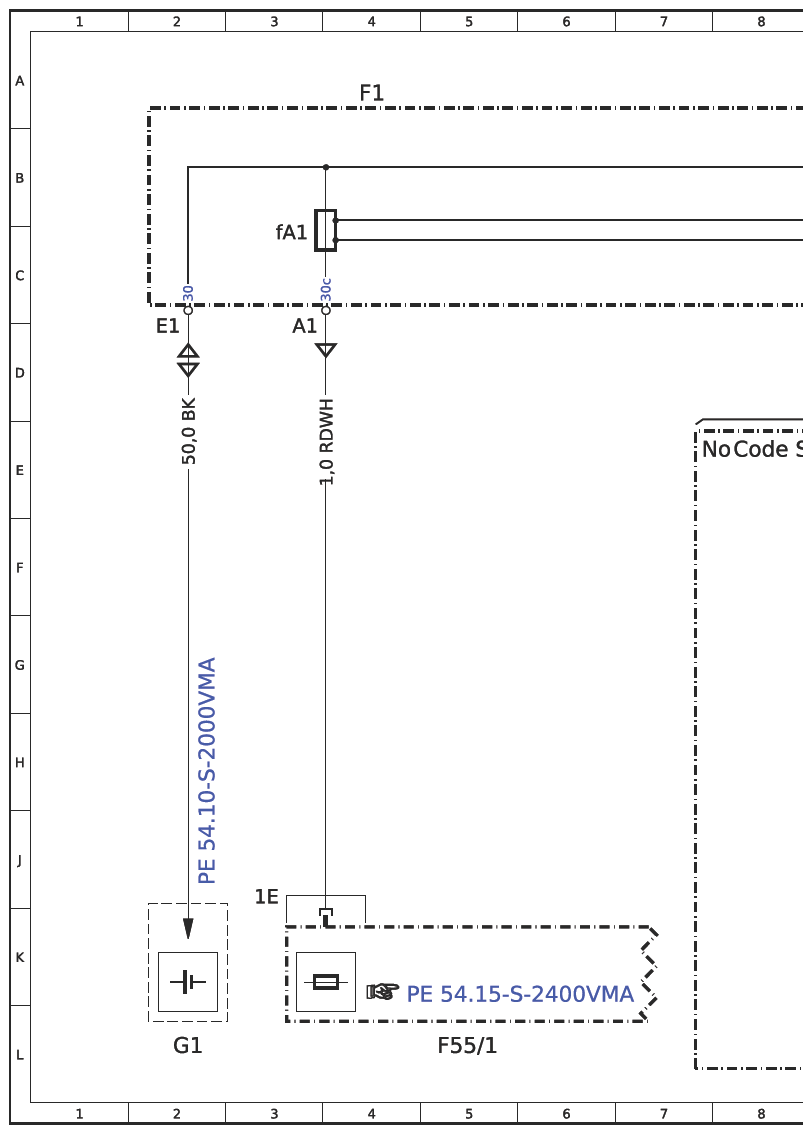

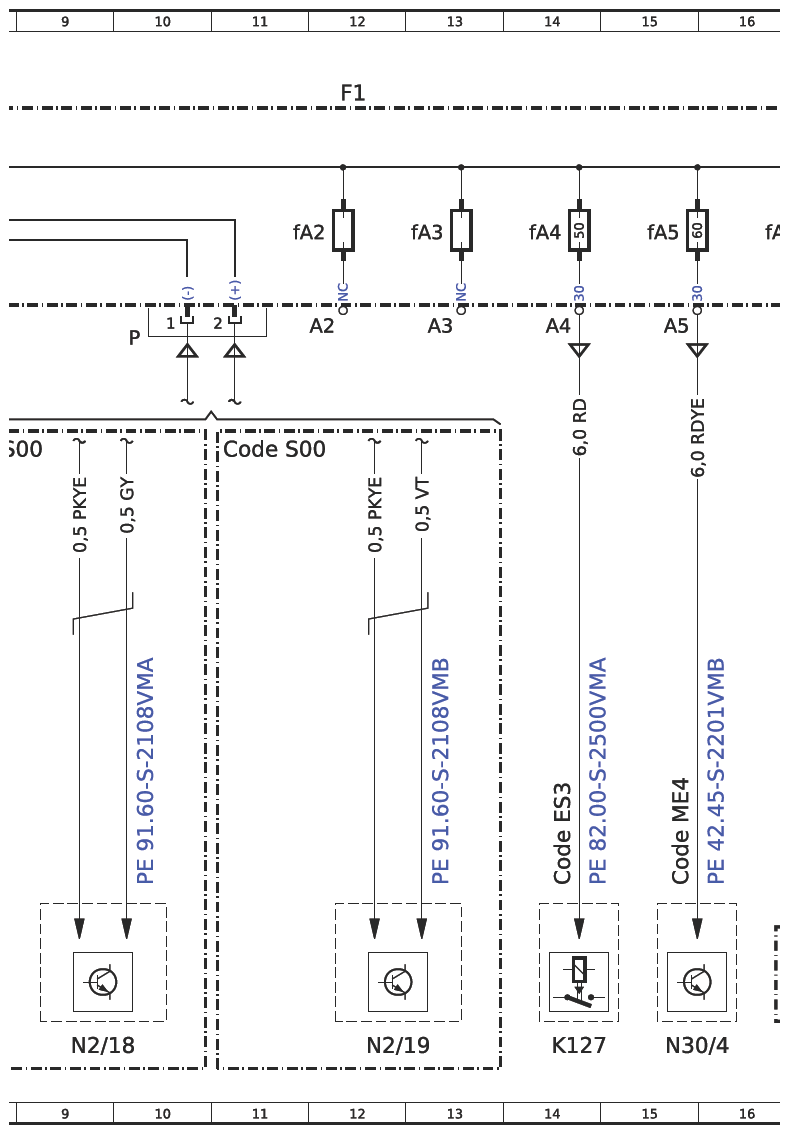

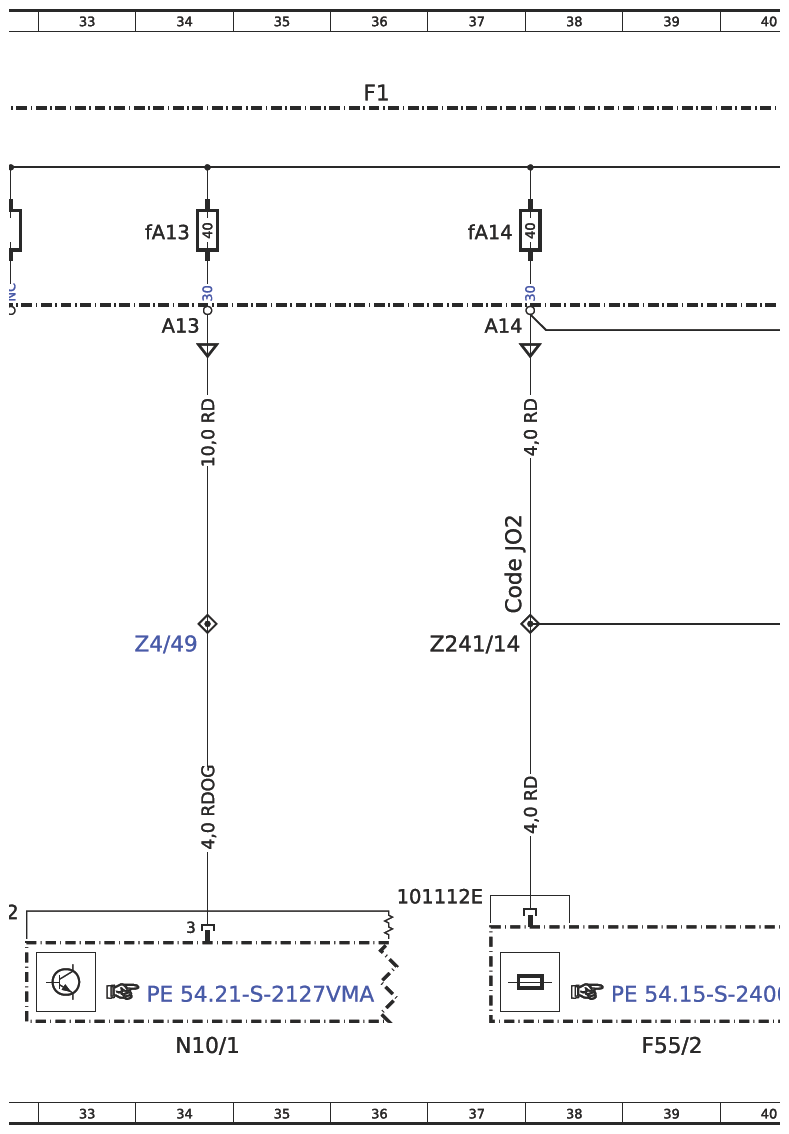

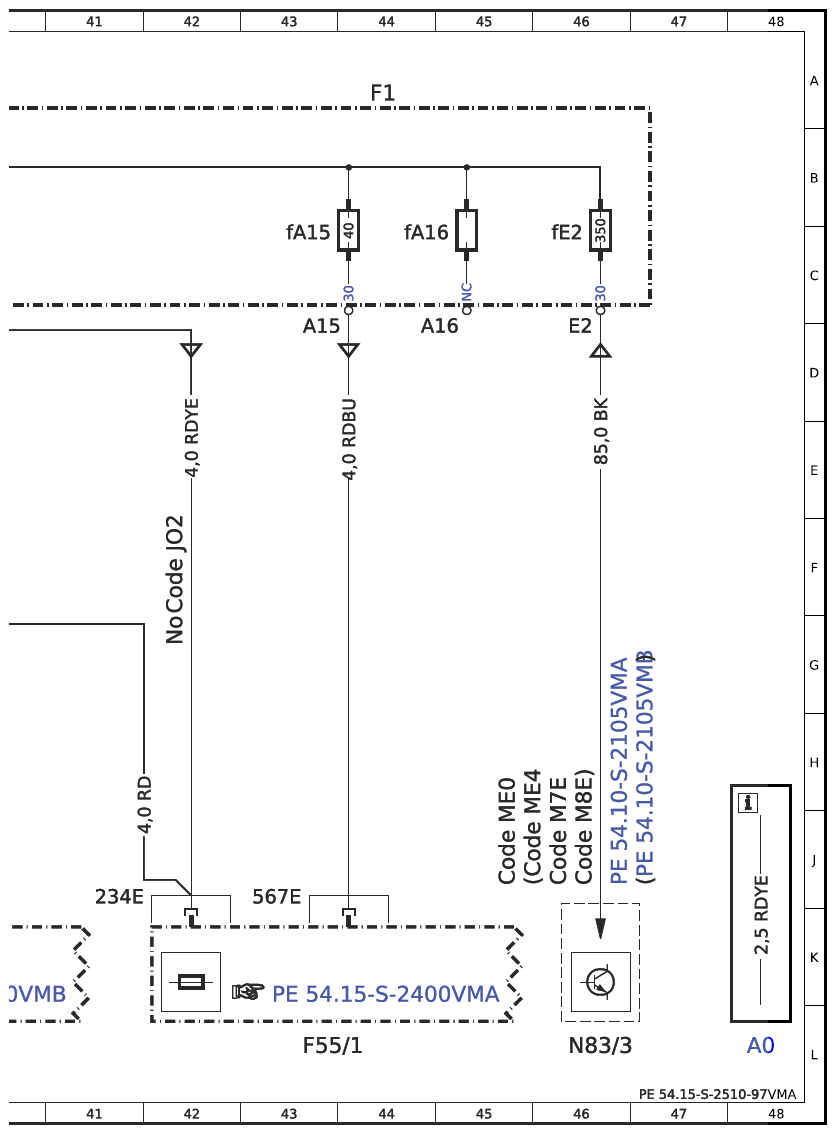

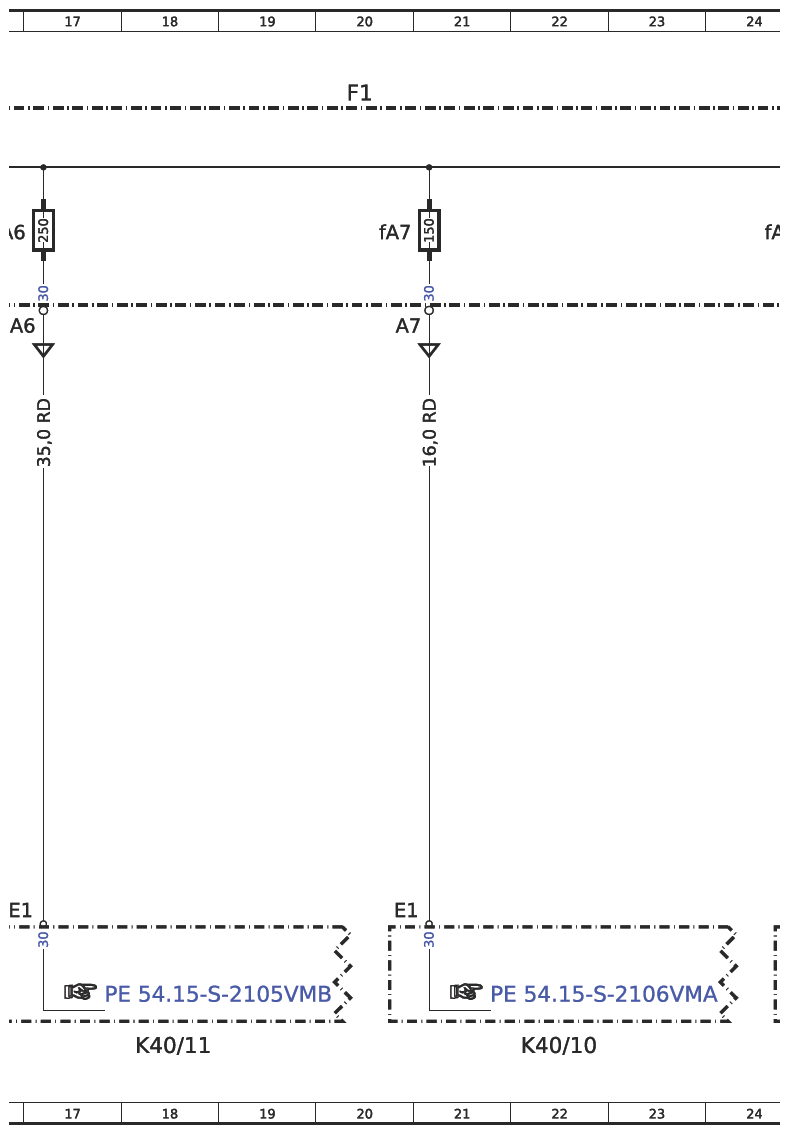

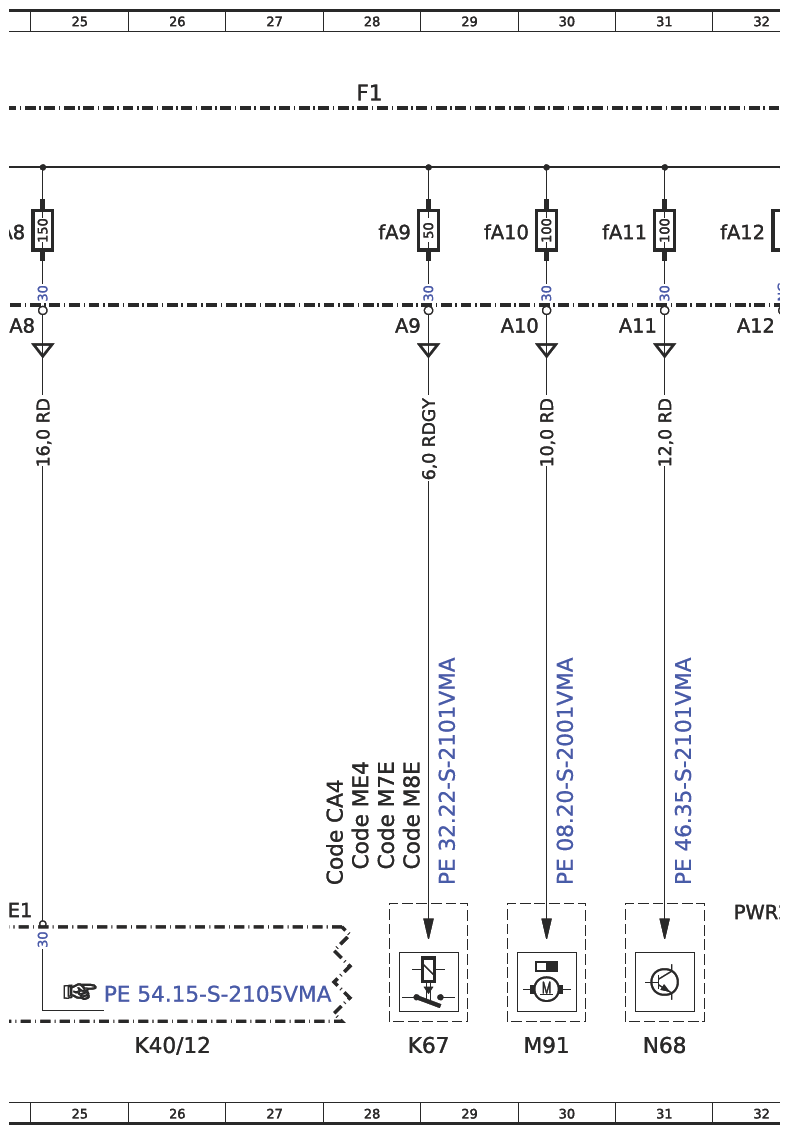

| Code : | Designation: | Position: |
|---|---|---|
| A0 | Color Code key | 48L |
| Code CA4 | AIRMATIC | 28J |
| Code ES3 | 12V sockets for right and left rear seat rows | 14J |
| Code J02 | OLU pre-installation | 42F |
| Code J02 | OLU pre-installation | 37F |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 46J |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 28J |
| Code M8E | Electric motor 85 kW/battery 60 kWh (usable) | 28J |
| Code M8E | Electric motor 85 kW/battery 60 kWh (usable) | 46J |
| Code ME0 | Electric motor 85 kW | 45J |
| Code ME4 | Electric motor 145 kW | 15J |
| Code ME4 | Electric motor 145 kW | 28J |
| Code ME4 | Electric motor 145 kW | 46J |
| Code S00 | Airbag control unit generation AB12 | 11E |
| Code S00 | Airbag control unit generation AB12 | 8E |
| F1 | Pre-fuse box | 4A |
| F1 | Pre-fuse box | 12A |
| F1 | Pre-fuse box | 20A |
| F1 | Pre-fuse box | 28A |
| F1 | Pre-fuse box | 36A |
| F1 | Pre-fuse box | 44A |
| F1fA1 | Pyrofuse A1 | 3C |
| F1fA10 | Pre-fuse A10 | 29C |
| F1fA11 | Pre-fuse A11 | 31C |
| F1fA13 | Pre-fuse A13 | 34C |
| F1fA14 | Pre-fuse A14 | 37C |
| F1fA15 | Pre-fuse A15 | 43C |
| F1fA4 | Pre-fuse A4 | 14C |
| F1fA6 | Pre-fuse A6 | 16C |
| F1fA7 | Pre-fuse A7 | 20C |
| F1fA8 | Pre-fuse A8 | 24C |
| F1fA9 | Pre-fuse A9 | 28C |
| F1fE2 | Pre-fuse E2 | 46C |
| F55/1 | Fuse block (1, 9-pin) | 5L |
| F55/1 | Fuse block (1, 9-pin) | 43L |
| F55/2 | Fuse block 2 (9-pin) | 39L |
| G1 | On-board electrical system battery | 2L |
| K127 | Rear passenger compartment socket relay | 14L |
| K40/10 | Engine compartment fuse and relay module | 22L |
| K40/11 | Firewall fuse and relay module | 18L |
| K40/12 | Fuse and relay module, front passenger footwell | 26L |
| K67 | AIRMATIC relay | 28L |
| M91 | Electric fan | 30L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 34L |
| N2/18 | Supplemental restraint system (SRS) control unit | 9L |
| N2/19 | Supplemental restraint system (SRS) control unit | 12L |
| N30/4 | Electronic Stability Program (ESP) control unit | 15L |
| N68 | Electrical power steering (ES) control unit | 31L |
| N83/3 | DC/DC converter control unit | 46L |
| Z241/14 | Tml. 30 connector sleeve | 37G |
| Z4/49 | Pre-fuse box tml. 30 connector sleeve | 34G |
