(Wiring Diagram For Fuse Block (9 Fuses) - PE54.15-S-2400-97VMB)
Model 447.6 with Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) F55/2
Model 447.6 with Code ME0 (Electric motor 85 kW) except Code XM7 (MOPF II) F55/2
Model 447.7 with Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) F55/2
Model 447.7 with Code ME4 (Electric motor 145 kW) except Code XM7 (MOPF II) F55/2
| Code : | Designation: | Position: |
|---|---|---|
| A0 | Color Code key | 32L |
| Code J02 | OLU pre-installation | 15J |
| Code J03 | OLU Connect Unit | 20J |
| Code J04 | OLU Compute Unit | 19J |
| F1 | Pre-fuse box | 4L |

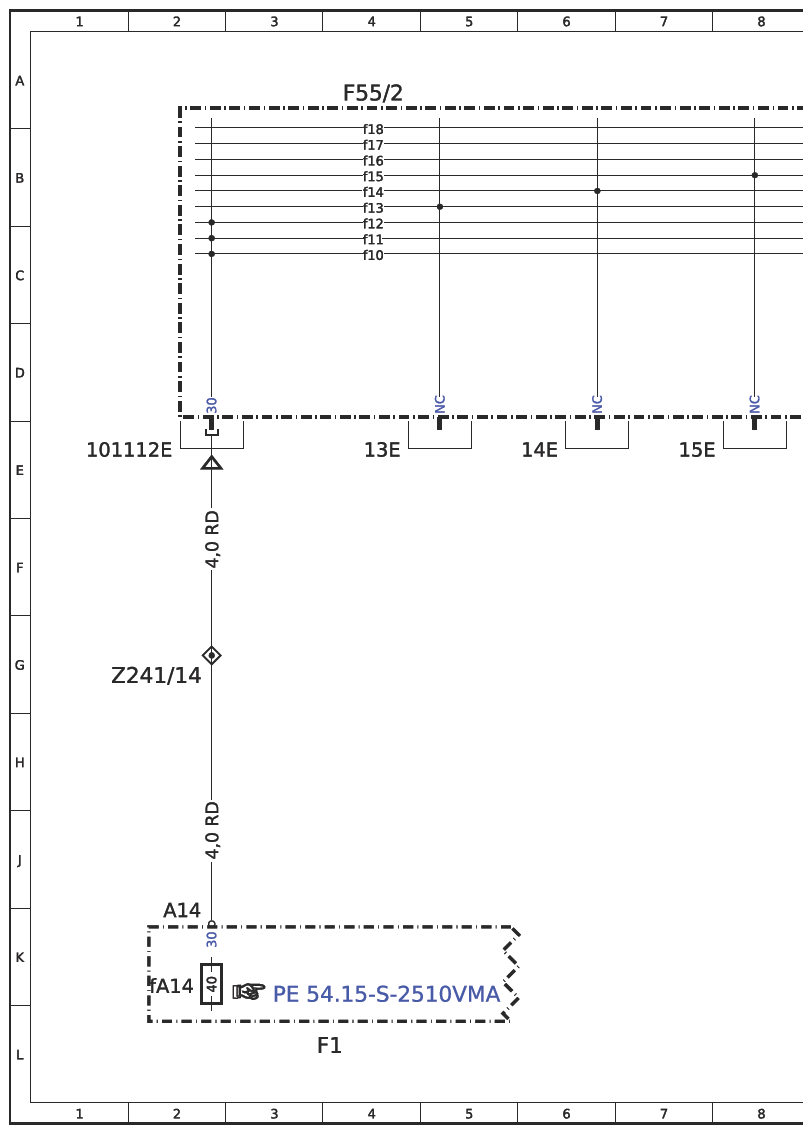

| F1fA14 | Pre-fuse A14 | 2K |

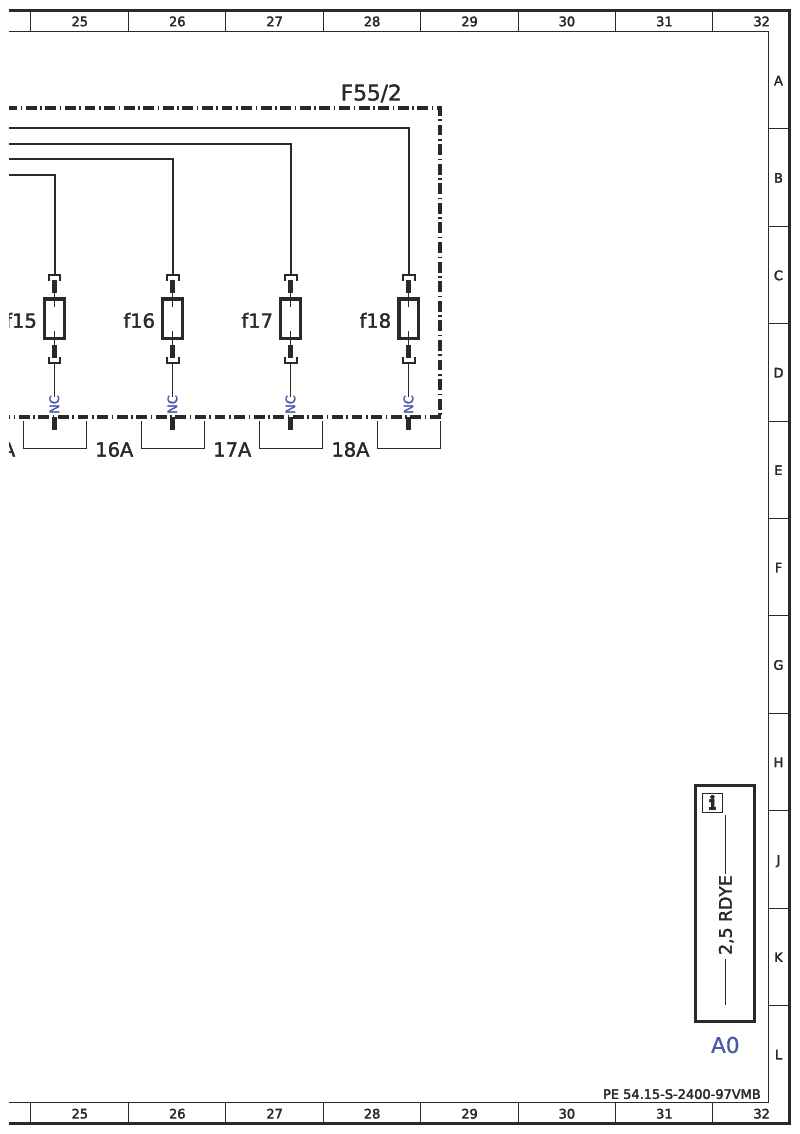

| F55/2 | Fuse block 2 (9-pin) | 4A |
| F55/2 | Fuse block 2 (9-pin) | 12A |
| F55/2 | Fuse block 2 (9-pin) | 20A |
| F55/2 | Fuse block 2 (9-pin) | 28A |

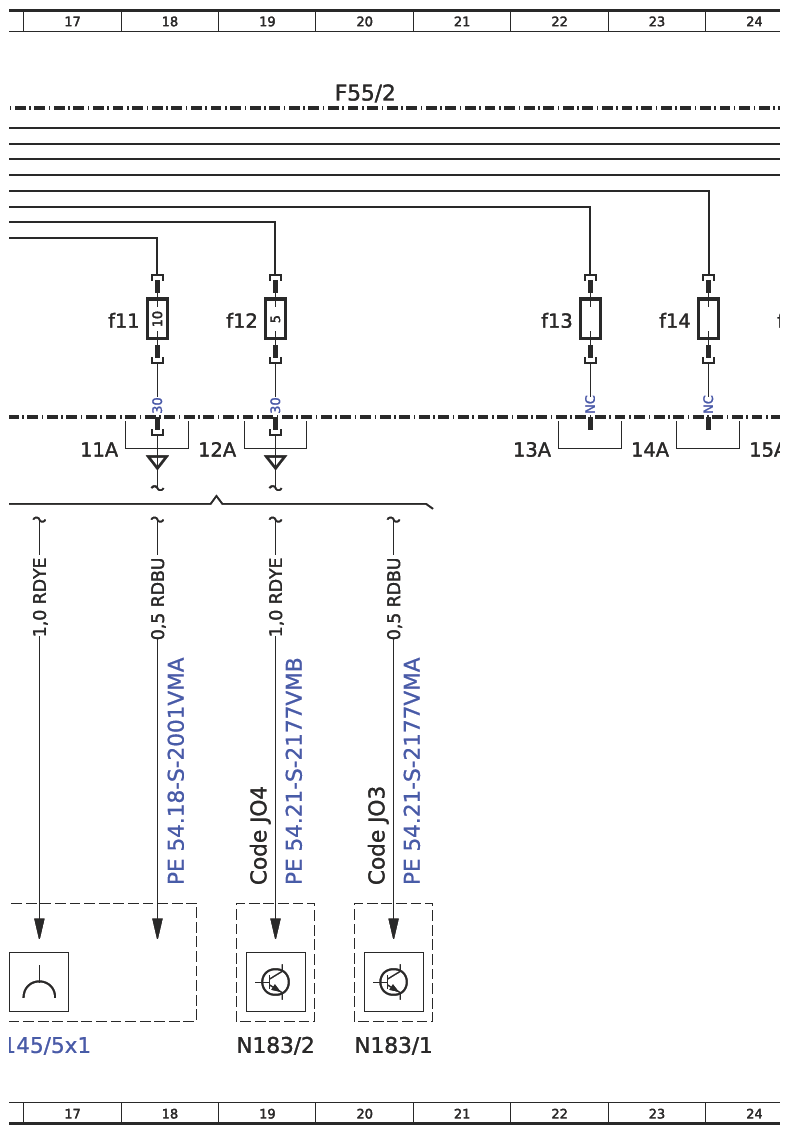

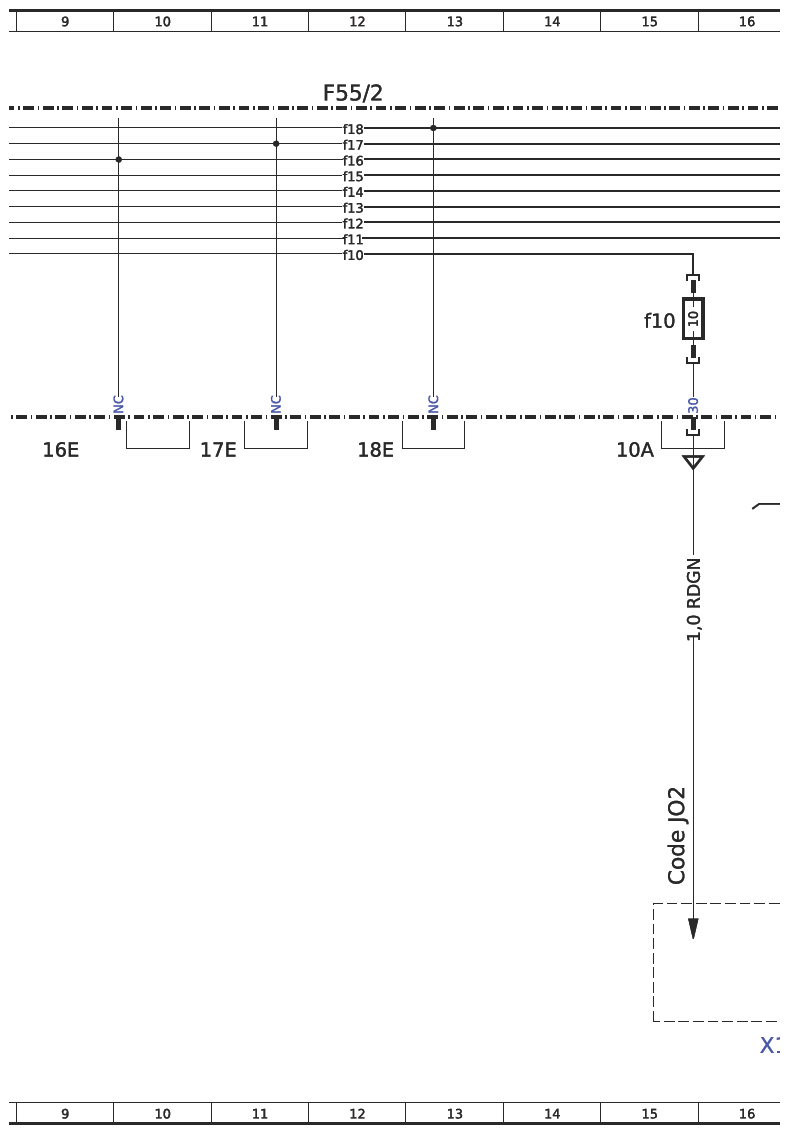

| F55/2f10 | Fuse 10 | 15D |
| F55/2f11 | Fuse 11 | 18D |
| F55/2f12 | Fuse 12 | 19D |
| N183/1 | Onboard Logic Unit (OLU) control unit - Connect Unit | 20L |
| N183/2 | Onboard Logic Unit (OLU) control unit - Compute Unit | 19L |
| X145/5x1 | OLU 1 body manufacturer electrical connector | 16L |
| Z241/14 | Tml. 30 connector sleeve | 2G |
