Remove/Install Parktronic System (PTS) Sensors In Rear Bumper - AR54.65-S-0002E
Model 447, 448
With Code EZ7 (Active Parking Assist)
Model 447, 448
With Code JB6 (Parking package with 360-degree camera)
Model 447, 448
With Code JB7 (Parking Package with reversing camera)
Model 447
With Code EZ5 (Active Parking Assist with reversing camera)
Model 447
With Code EZ6 (Parking package with 360-degree camera)
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with Motor 780 | AH00.00-Z-0300-01A |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

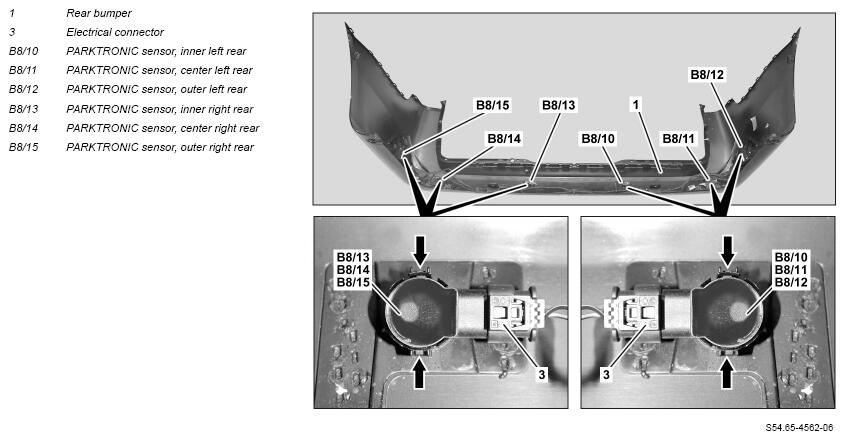

| 1 | Remove rear bumper (1). | AR88.20-S-2200E | |
| 2 | Disconnect electrical connector (3) from rear PARKTRONIC sensors (B8/10, B8/11, B8/12, B8/13, B8/14, B8/15). | ||

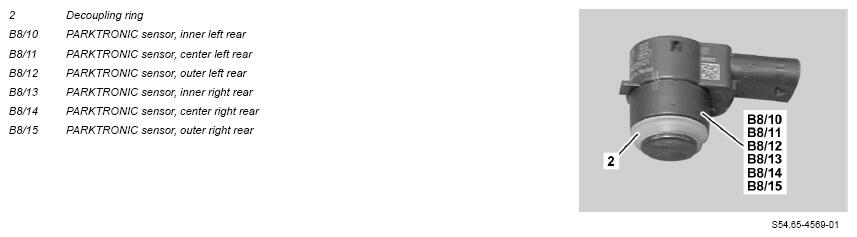

| 3 | Carefully push catch hooks (arrows) outwards and unclip rear PARKTRONIC sensors (B8/10, B8/11, B8/12, B8/13, B8/14, B8/15) from rear bumper (1). | If damage is present: ↓ replace damaged decoupling ring (2). If the rear PARKTRONIC sensor (B8/10, B8/11, B8/12, B8/13, B8/14, B8/15) is replaced, ↓ change relevant decoupling ring (2). |
|
| 4 | Install in the reverse order. | ||
| Check | |||
| 5 | Perform function check of Active Parking Assist. |
