Remove/Install Parktronic System (PTS) Sensors In Front Bumper - AR54.65-S-0001E
Model 447, 448
With Code EZ7 (Active Parking Assist)
Model 447, 448
With Code JB6 (Parking package with 360-degree camera)
Model 447, 448
With Code JB7 (Parking Package with reversing camera)
Model 447
With Code EZ5 (Active Parking Assist with reversing camera)
Model 447
With Code EZ6 (Parking package with 360-degree camera)

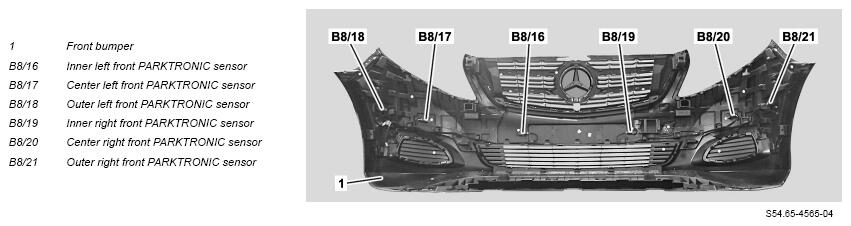

Shown on model 447.8 with removed front bumper (1) With Code JS1 (360° camera (360° CAMERA, SURROUND VIEW))

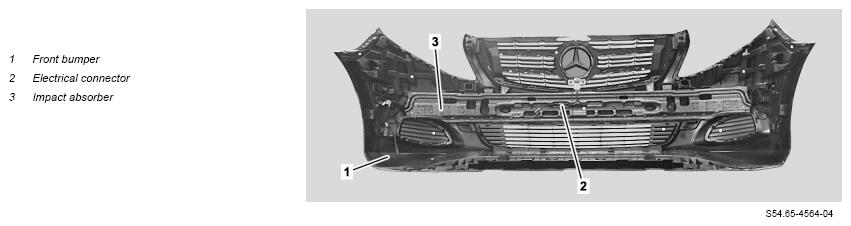

Shown on model 447.8 with removed front bumper (1)
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with Motor 780 | AH00.00-Z-0300-01A |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

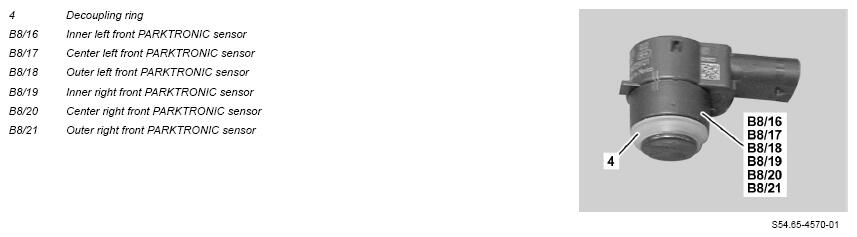

| 1 | Remove outer left front PARKTRONIC sensor (B8/18) or outer right front PARKTRONIC sensor (B8/21). | If damage is present, ↓ replace damaged decoupling ring (4). If the outer left front PARKTRONIC sensor (B8/18) or outer right front PARKTRONIC sensor (B8/21) is replaced, ↓ transfer decoupling ring (4). |
AR54.65-S-0001-01E |
| 2 | Remove center left front PARKTRONIC sensor (B8/17) or center right front PARKTRONIC sensor (B8/20). | Model 447.8, 448.8 with code PS2 (AMG Line) If damage is present, ↓ replace damaged decoupling ring (4). If the center left front PARKTRONIC sensor (B8/17) or center right front PARKTRONIC sensor (B8/20) is replaced, ↓ transfer decoupling ring (4). |
AR54.65-S-0001-02EA |
| 3 | Remove front bumper (1). | AR88.20-S-2000E | |
| 4 | Disconnect electrical connector (2). | Model 447.8, 448 with code EZ7 (Active Parking Assist) with code JS1 (360° camera (SURROUND VIEW)) Model 447.8, 448 with code JB6 (Parking package with 360-degree camera) Model 447.8 with code EZ6 (Parking package with 360-degree camera) |
|
| 5 | Remove impact absorber (3). | Model 447.8, 448 | |
| 6 | Remove center left front PARKTRONIC sensor (B8/17) or center right front PARKTRONIC sensor (B8/20). | Model 447.6/7, 448.7, model 447.8, 448.8 except code PS2 (AMG Line) If damage is present, ↓ replace damaged decoupling ring (4). If the center left front PARKTRONIC sensor (B8/17) or center right front PARKTRONIC sensor (B8/20) is replaced, ↓ transfer decoupling ring (4). |
AR54.65-S-0001-02E |
| 7 | Remove inner left front PARKTRONIC sensor (B8/16) or inner right front PARKTRONIC sensor (B8/19). | If damage is present, ↓ replace damaged decoupling ring (4). If the inner left front PARKTRONIC sensor (B8/16) or inner right front PARKTRONIC sensor (B8/19) is replaced, ↓ transfer decoupling ring (4). |
AR54.65-S-0001-03E |
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Carry out function check of the "Active Parking Assist" system. |
