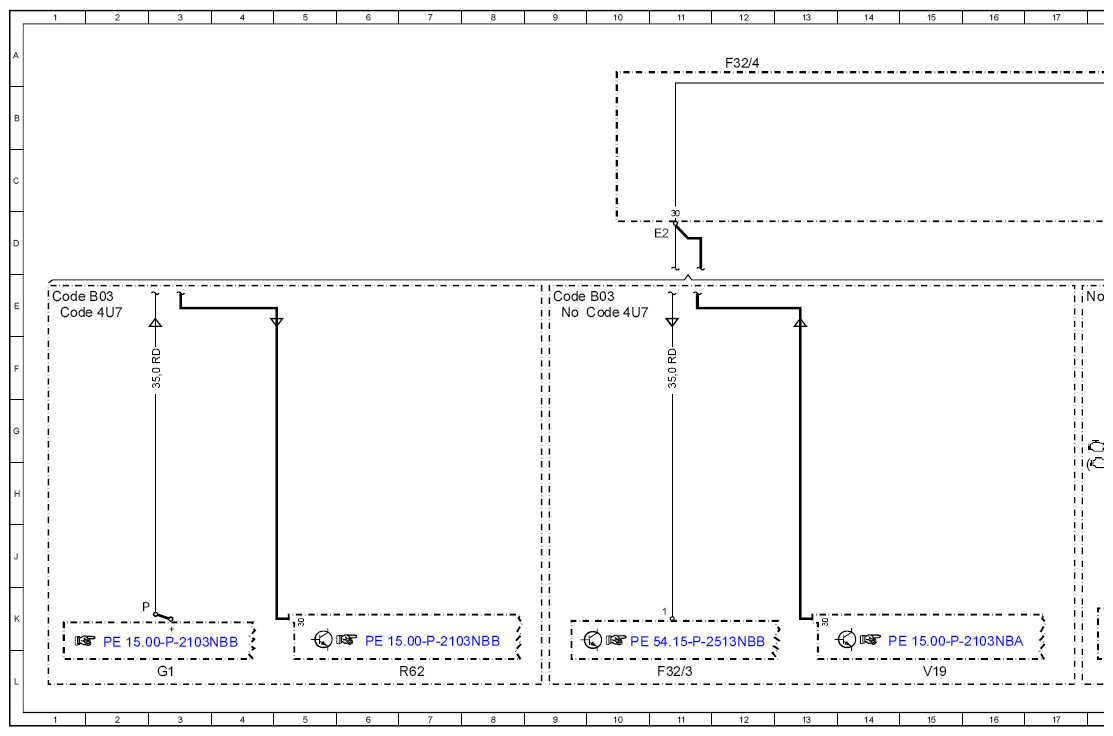

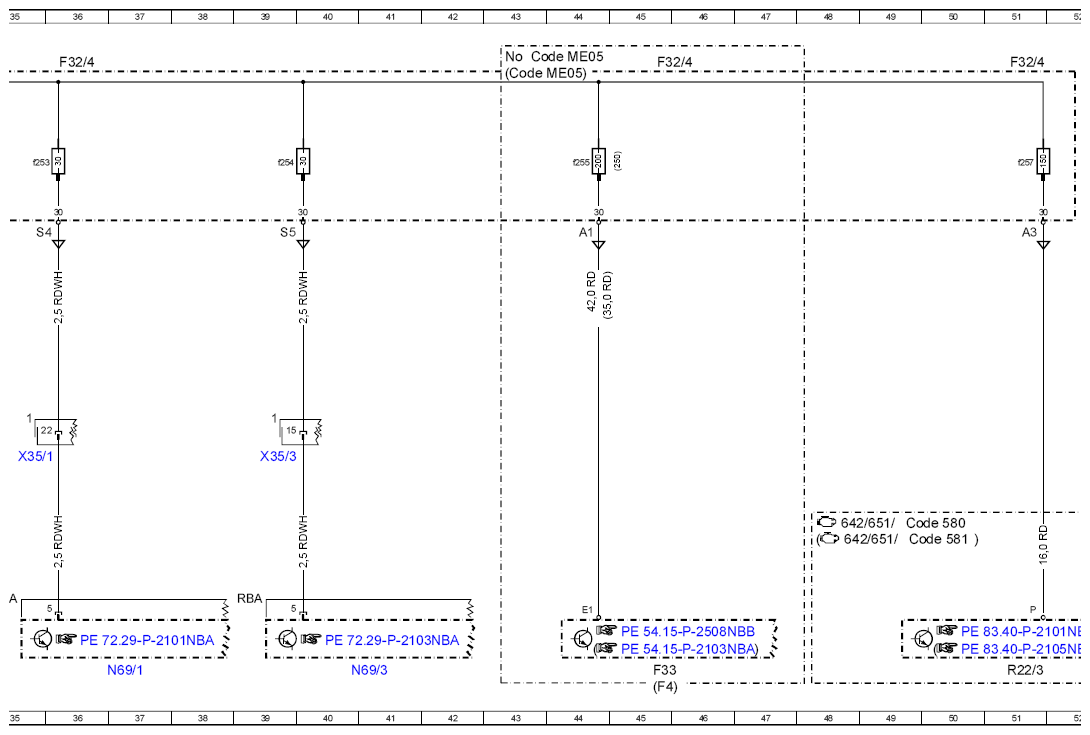

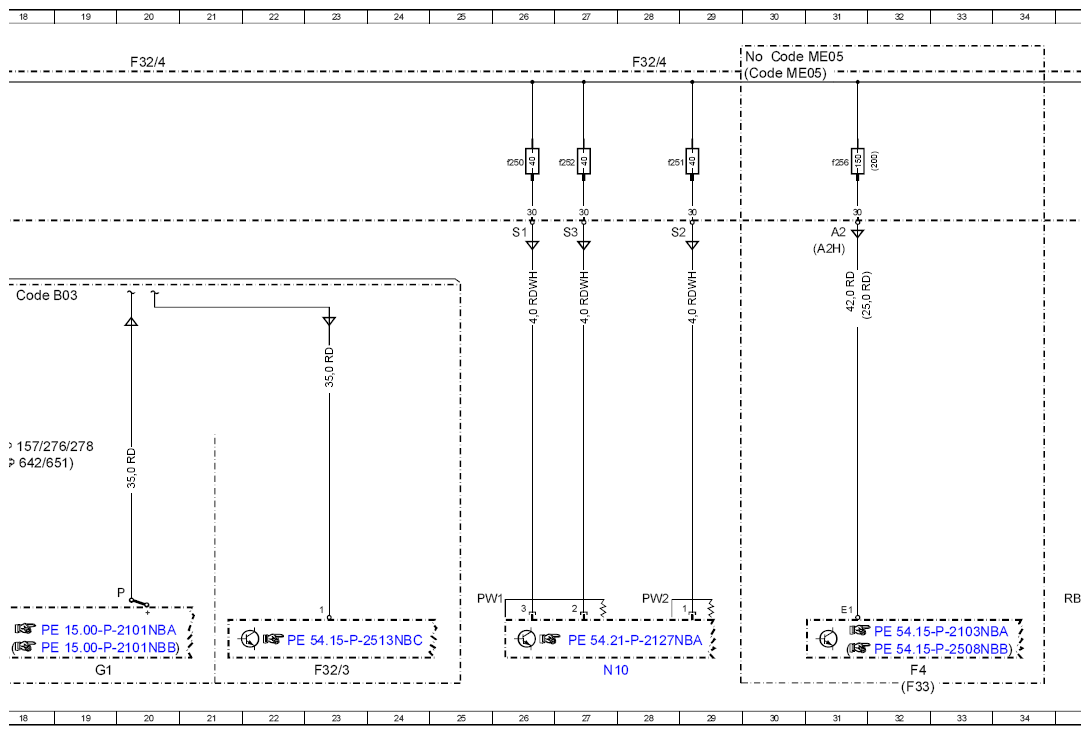

Wiring Diagram, Interior Prefuse Box (F32/4) - PE54.15-P-2514-97NBA
MODEL 166 as of model year 2016
MODEL 292
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 56L |
| Code 4U7 | Start/stop voltage dip protection | 1E |
| Code 4U7 | Start/stop voltage dip protection | 10E |
| Code 580 | Air conditioning | 49J |
| Code 581 | Automatic air conditioning | 49J |
| Code B03 | ECO start/stop function | 1E |
| Code B03 | ECO start/stop function | 9E |
| Code B03 | ECO start/stop function | 18E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 30A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 43A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 30A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 43A |
| F32/3 | Engine compartment prefuse box | 11L |
| F32/3 | Engine compartment prefuse box | 23L |
| F32/4 | Interior prefuse box | 28A |
| F32/4 | Interior prefuse box | 45A |
| F32/4 | Interior prefuse box | 51A |
| F32/4 | Interior prefuse box | 36A |
| F32/4 | Interior prefuse box | 12A |
| F32/4 | Interior prefuse box | 20A |
| F32/4f250 | Fuse 250 | 26C |
| F32/4f251 | Fuse 251 | 28C |
| F32/4f252 | Fuse 252 | 27C |
| F32/4f253 | Fuse 253 | 35C |
| F32/4f254 | Fuse 254 | 39C |
| F32/4f255 | Fuse 255 | 44C |
| F32/4f256 | Fuse 256 | 31C |
| F32/4f257 | Fuse 257 | 51C |
| F33 | Battery compartment prefuse box | 45L |
| F33 | Battery compartment prefuse box | 32L |
| F4 | Rear fuse box | 32L |
| F4 | Rear fuse box | 45L |
| G1 | On-board electrical system battery | 3L |
| G1 | On-board electrical system battery | 19L |
| N10 | SAM control unit | 27L |
| N69/1 | Left front door control unit | 37L |
| N69/3 | Left rear door control unit | 41L |
| R22/3 | PTC heater booster | 51L |
| R62 | Voltage dip limiter | 7L |
| V19 | ECO start/stop function diode | 15L |
| X35/1 | Driver door electrical connector | 35G |
| X35/3 | Left rear door electrical connector | 39G |
