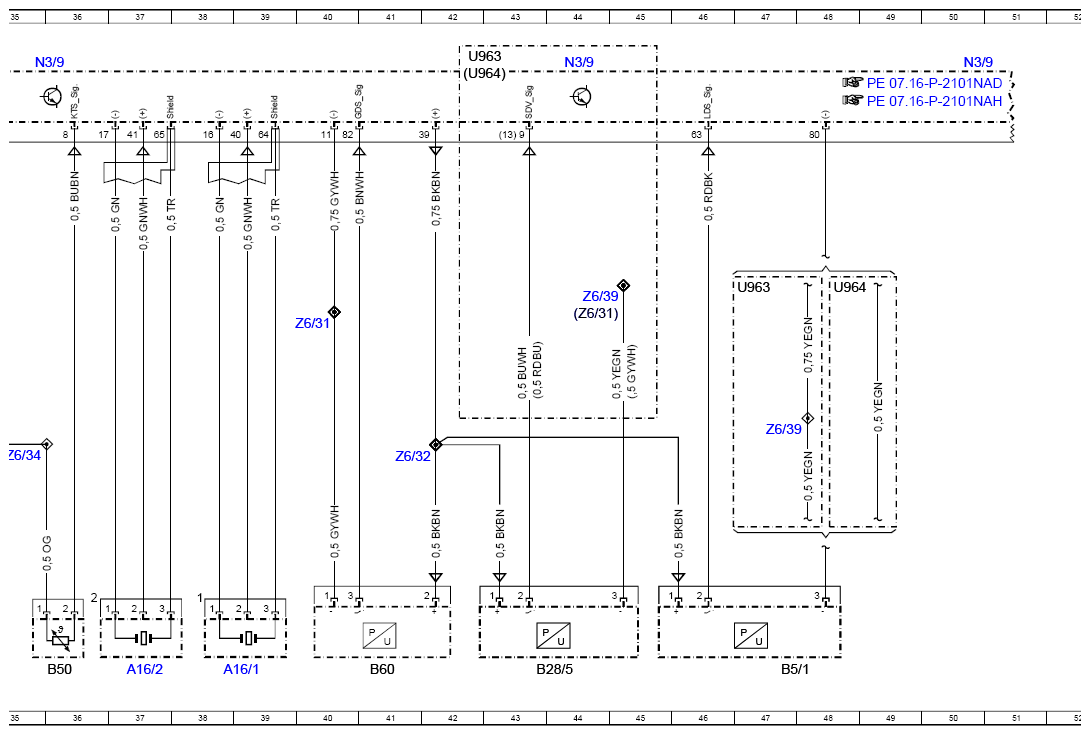

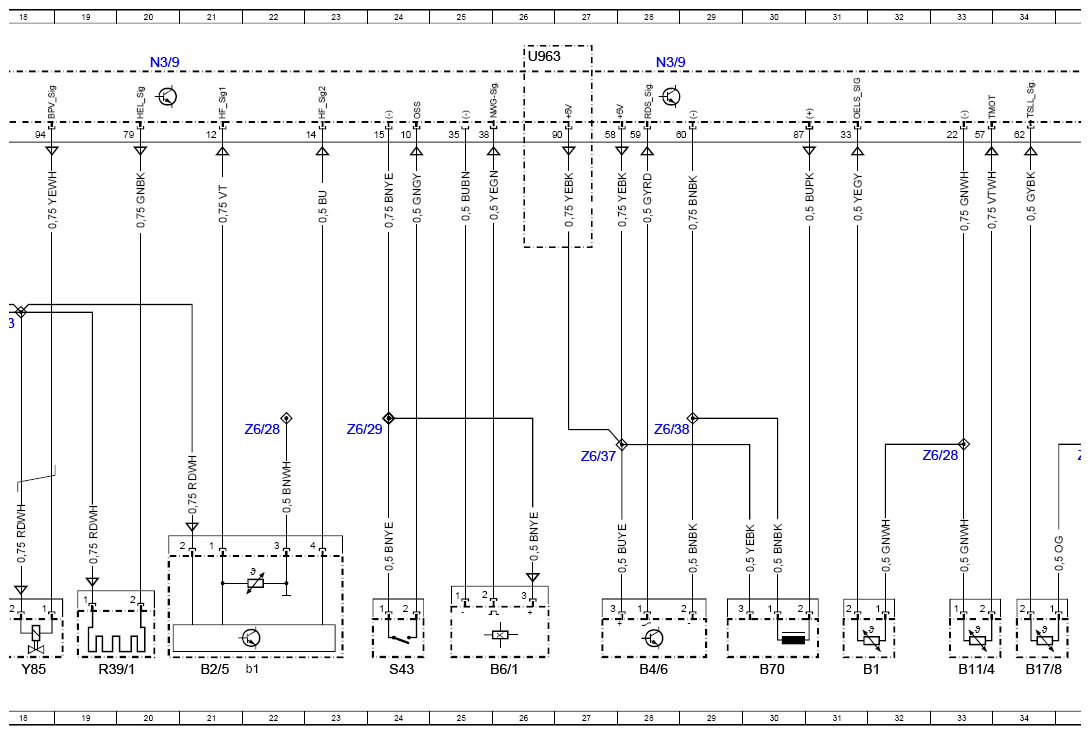

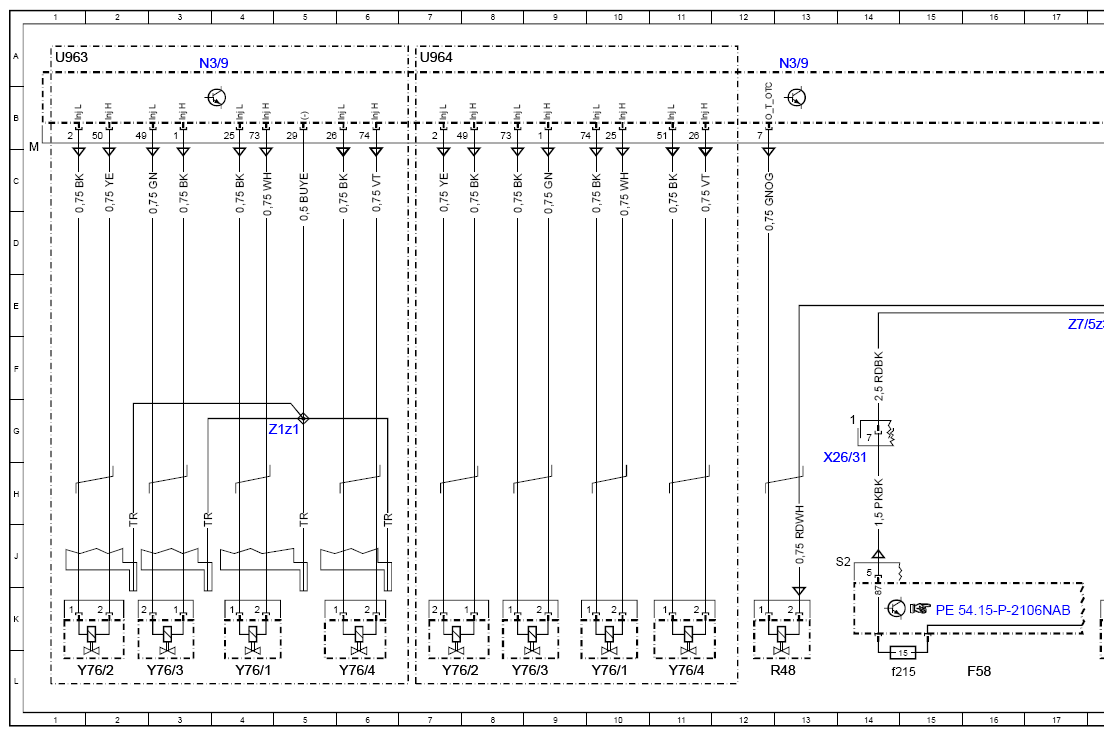

Wiring Diagram For Common Rail Diesel Injection (CDI) Control Unit - PE07.16-P-2101-97NAC
ENGINE 651.9 up to 2/28/13 in MODEL 166 up to model year 2016 without CODE 494 (US version) Delphi CRD3, control unit N3/9 engine plug, sheet 1
ENGINE 651.9 up to 8/31/13 in MODEL 166 up to model year 2016 with CODE 494 (US version) Delphi CRD3, control unit N3/9, engine plug, sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 56L |
| A16/1 | Knock sensor 1 | 38L |
| A16/2 | Knock sensor 2 | 37L |
| B1 | Engine oil temperature sensor | 31L |
| B11/4 | Coolant temperature sensor | 33L |
| B17/8 | Charge air temperature sensor | 34L |
| B2/5 | Hot film mass air flow sensor | 21L |
| B2/5b1 | Intake air temperature sensor | 22L |
| B28/5 | Pressure sensor downstream of air filter | 43L |
| B4/6 | Fuel high-pressure sensor | 28L |
| B5/1 | Boost pressure sensor | 47L |
| B50 | Fuel temperature sensor | 36L |
| B6/1 | Camshaft Hall sensor | 26L |
| B60 | Exhaust pressure sensor | 41L |
| B70 | Crankshaft Hall sensor | 30L |
| F58 | Engine compartment fuse and relay module | 16L |
| F58f215 | Fuse 215 | 14L |
| N3/9 | CDI control unit | 3A |
| N3/9 | CDI control unit | 13A |
| N3/9 | CDI control unit | 20A |
| N3/9 | CDI control unit | 28A |
| N3/9 | CDI control unit | 35A |
| N3/9 | CDI control unit | 44A |
| N3/9 | CDI control unit | 50A |
| R39/1 | Vent line heater element | 19L |
| R48 | Coolant thermostat heating element | 13L |
| S43 | Oil level check switch | 24L |
| U963 | Valid for piezo fuel injector | 1A |
| U963 | Valid for piezo fuel injector | 26A |
| U963 | Valid for piezo fuel injector | 47E |
| U963 | Valid for piezo fuel injector | 42A |
| U964 | Valid for all except piezo fuel injector | 7A |
| U964 | Valid for all except piezo fuel injector | 48E |
| U964 | Valid for all except piezo fuel injector | 42A |
| X26/31 | Engine/engine compartment electrical connector | 14H |
| Y76/1 | Cylinder 1 fuel injector | 4L |
| Y76/1 | Cylinder 1 fuel injector | 10L |
| Y76/2 | Cylinder 2 fuel injector | 2L |
| Y76/2 | Cylinder 2 fuel injector | 7L |
| Y76/3 | Cylinder 3 fuel injector | 3L |
| Y76/3 | Cylinder 3 fuel injector | 8L |
| Y76/4 | Cylinder 4 fuel injector | 6L |
| Y76/4 | Cylinder 4 fuel injector | 11L |
| Y85 | Exhaust gas recirculation cooler bypass switchover valve | 18L |
| Z1z1 | Fuel injector shielding connector sleeve | 5G |
| Z6/28 | Sensor ground connector sleeve | 22G |
| Z6/28 | Sensor ground connector sleeve | 33G |
| Z6/29 | Sensor ground connector sleeve | 23G |
| Z6/31 | Sensor voltage supply connector sleeve | 40E |
| Z6/31 | Sensor voltage supply connector sleeve | 44E |
| Z6/32 | Sensor ground connector sleeve | 41G |
| Z6/34 | Sensor ground connector sleeve | 35G |
| Z6/37 | Sensor voltage supply connector sleeve | 27G |
| Z6/38 | Sensor ground connection connector sleeve | 28G |
| Z6/39 | Sensor voltage supply connector sleeve | 47G |
| Z6/39 | Sensor voltage supply connector sleeve | 44E |
| Z7/5z3 | Circuit 87 connector sleeve | 18E |
