Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97NBD

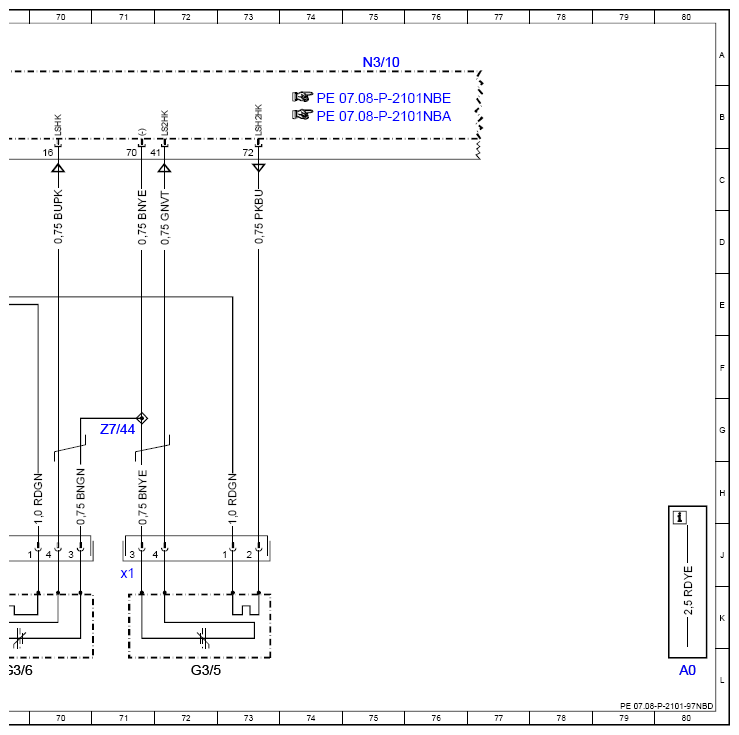

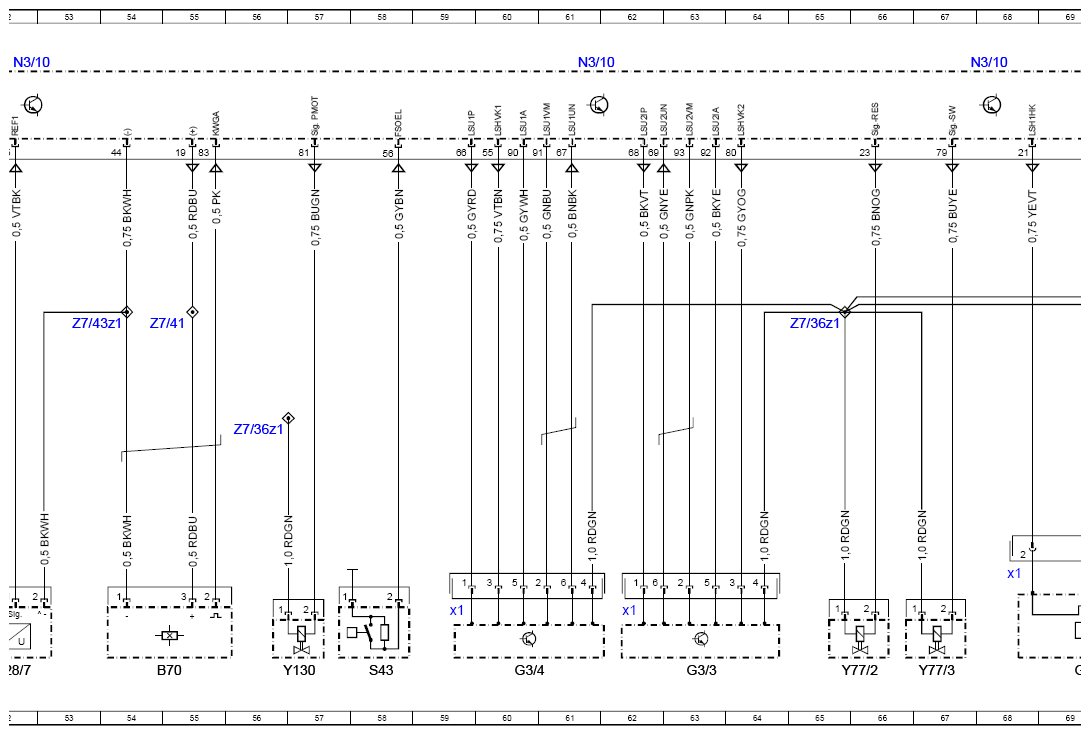

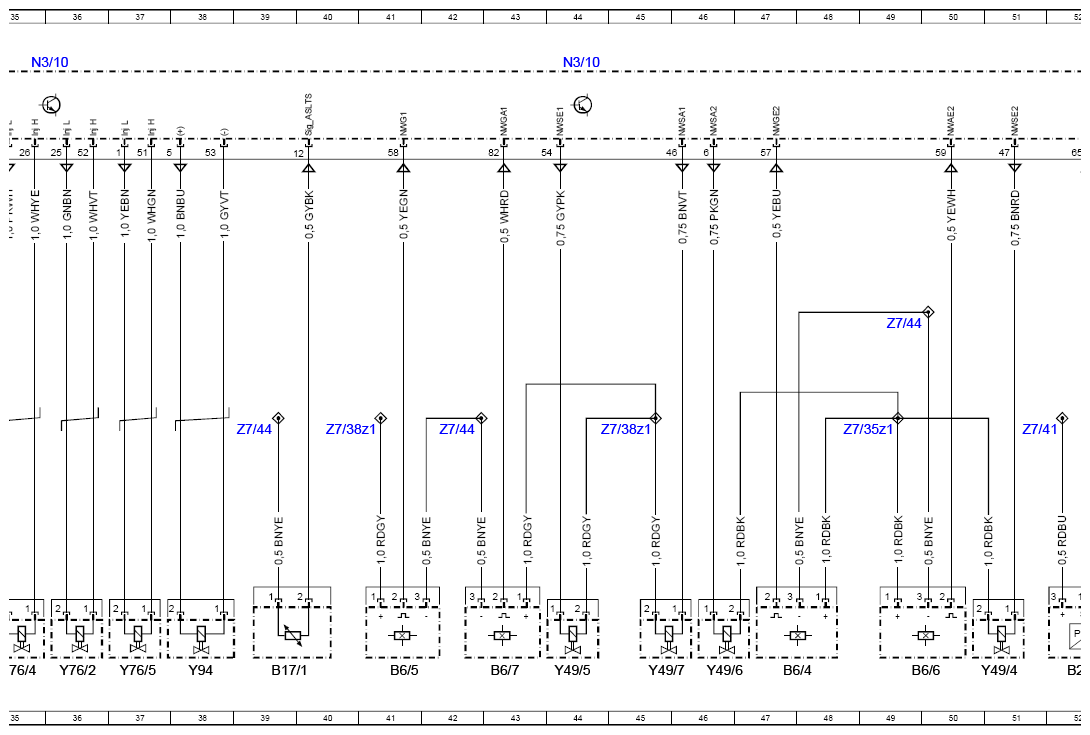

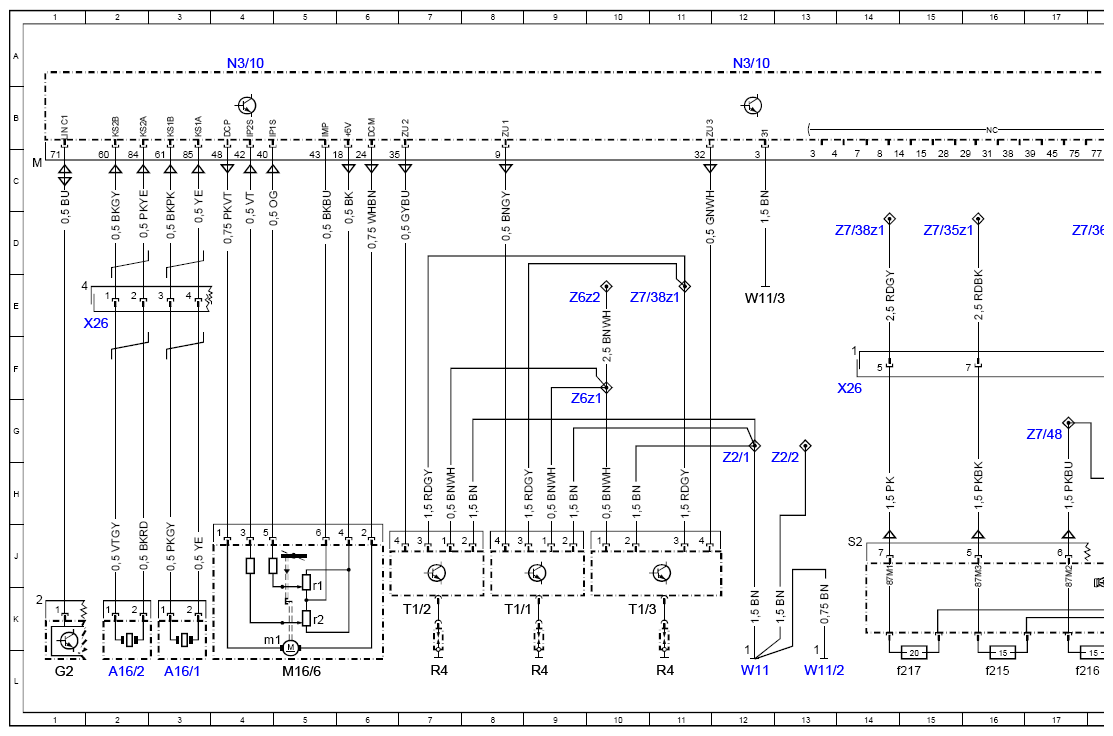

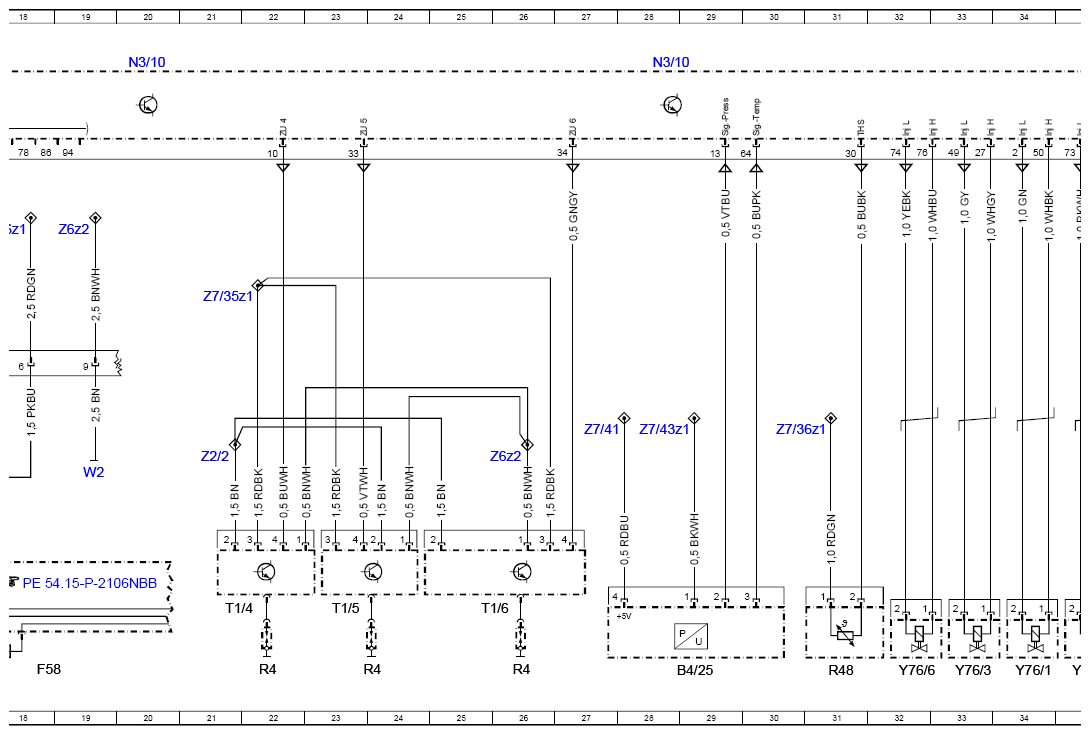

ENGINE 276.9 in MODEL 166 as of model year 2016 Control unit N3/10, vehicle connector, engine side, sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| A16/1 | Knock sensor 1 | 3L |
| A16/2 | Knock sensor 2 | 2L |
| B17/1 | Intake manifold intake air temperature sensor | 39L |
| B28/7 | Pressure sensor downstream of throttle valve | 52L |
| B4/25 | Fuel pressure and temperature sensor | 29L |
| B6/4 | Left intake camshaft Hall sensor | 47L |
| B6/5 | Right intake camshaft Hall sensor | 41L |
| B6/6 | Left exhaust camshaft Hall sensor | 49L |
| B6/7 | Right exhaust camshaft Hall sensor | 43L |
| B70 | Crankshaft Hall sensor | 55L |
| F58 | Engine compartment fuse and relay module | 18L |
| F58f215 | Fuse 215 | 16L |
| F58f216 | Fuse 216 | 17L |
| F58f217 | Fuse 217 | 15L |
| G2 | Alternator | 1L |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 63L |
| G3/3x1 | Electrical connector for left oxygen sensor upstream of catalytic converter | 62K |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 60L |
| G3/4x1 | Electrical connector for right oxygen sensor upstream of catalytic converter | 59K |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 72L |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 71J |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 69L |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 68J |
| M16/6 | Throttle valve actuator | 5L |
| M16/6m1 | Actuator motor | 4K |
| M16/6r1 | Actual value potentiometer 1 | 5K |
| M16/6r2 | Actual value potentiometer 2 | 5K |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 35A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 61A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 68A |
| N3/10 | ME-SFI [ME] control unit | 75A |
| R4 | Spark plugs | 7L |
| R4 | Spark plugs | 9L |
| R4 | Spark plugs | 11L |
| R4 | Spark plugs | 22L |
| R4 | Spark plugs | 24L |
| R4 | Spark plugs | 26L |
| R48 | Coolant thermostat heating element | 31L |
| S43 | Oil level check switch | 58L |
| T1/1 | Cylinder 1 ignition coil | 8K |
| T1/2 | Cylinder 2 ignition coil | 7K |
| T1/3 | Cylinder 3 ignition coil | 10K |
| T1/4 | Cylinder 4 ignition coil | 21K |
| T1/5 | Cylinder 5 ignition coil | 23K |
| T1/6 | Cylinder 6 ignition coil | 25K |
| W11 | Combustion engine ground point | 12L |
| W11/2 | Right combustion engine ground point | 13L |
| W11/3 | Left combustion engine ground point | 12E |
| W2 | Right front ground point at lamp unit | 19H |
| X26 | Interior and engine wiring harness electrical connector | 14F |
| X26 | Interior and engine wiring harness electrical connector | 2E |
| Y130 | Engine oil pump valve | 57L |
| Y49/4 | Left intake camshaft solenoid | 51L |
| Y49/5 | Right intake camshaft solenoid | 44L |
| Y49/6 | Left exhaust camshaft solenoid | 46L |
| Y49/7 | Right exhaust camshaft solenoid | 45L |
| Y76/1 | Cylinder 1 fuel injector | 34L |
| Y76/2 | Cylinder 2 fuel injector | 36L |
| Y76/3 | Cylinder 3 fuel injector | 33L |
| Y76/4 | Cylinder 4 fuel injector | 35L |
| Y76/5 | Cylinder 5 fuel injector | 37L |
| Y76/6 | Cylinder 6 fuel injector | 32L |
| Y77/2 | Intake manifold resonance flap switchover valve | 65L |
| Y77/3 | Intake manifold selector drum switchover valve | 67L |
| Y94 | Quantity control valve | 38L |
| Z2/1 | Right engine ground connector sleeve | 12G |
| Z2/2 | Left engine ground connector sleeve | 13G |
| Z2/2 | Left engine ground connector sleeve | 21G |
| Z6z1 | Circuit 31 connector sleeve | 9G |
| Z6z2 | Circuit 31 connector sleeve | 26G |
| Z6z2 | Circuit 31 connector sleeve | 9E |
| Z6z2 | Circuit 31 connector sleeve | 19D |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 49G |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 21E |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 15D |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 18D |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 56G |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 30G |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 65E |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 11E |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 14D |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 40G |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 45G |
| Z7/41 | Sensor voltage supply connector sleeve | 27G |
| Z7/41 | Sensor voltage supply connector sleeve | 51G |
| Z7/41 | Sensor voltage supply connector sleeve | 55E |
| Z7/43z1 | Sensor ground line connector sleeve | 28G |
| Z7/43z1 | Sensor ground line connector sleeve | 53E |
| Z7/44 | Ground connection connector sleeve | 42G |
| Z7/44 | Ground connection connector sleeve | 39G |
| Z7/44 | Ground connection connector sleeve | 71G |
| Z7/44 | Ground connection connector sleeve | 49E |
| Z7/48 | Circuit 87D2 connector sleeve | 17G |
