Remove/Install Engine Mount Or Engine Crossmember At The Rear - AR22.10-P-1180GQ

MODEL 166 with ENGINE 276

MODEL 166 with ENGINE 642

MODEL 166 with ENGINE 651

MODEL 166, 292 with ENGINE 157

MODEL 166, 292 with ENGINE 278

Shown on model 166

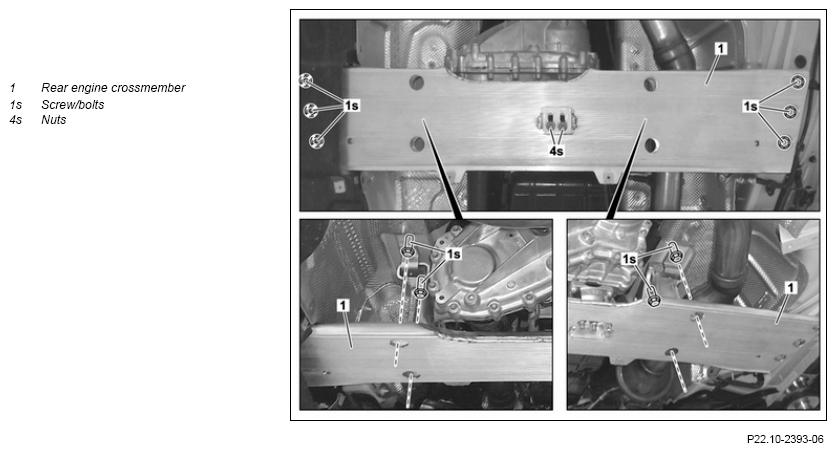

Shown: engine crossmember made out of aluminum on model 166

Shown on model 166

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Secure vehicle on vehicle lift		AR00.60-P-0100GZ
2	Remove rear part of underfloor paneling		AR61.30-P-1001GQ
3	Remove screw/bolts (2) and remove diagonal strut (2)	Model 166 with engine 157, 278 Model 166 with engine 276, 642, 651 Model 292 with engine 157 Model 292 with engine 278Bolt, diagonal strut to rear engine crossmember	*BA22.10-P-1007-03G
		Model 166 with engine 157, 278 Model 166 with engine 276, 642, 651 Model 292 with engine 157 Model 292 with engine 278Bolt, diagonal strut to body	*BA22.10-P-1009-03G
4	Remove screw/bolts (3s) and cross strut (3)	Model 166 with engine 157, 278 Model 166 with engine 276, 642, 651 Model 292 with engine 157 Model 292 with engine 278 Bolt, cross strut to rear engine crossmember	*BA22.10-P-1006-03G
		Model 166 with engine 157, 278 Model 166 with engine 276, 642, 651 Model 292 with engine 157 Model 292 with engine 278 Bolt, cross strut to body	*BA22.10-P-1008-03G
5	Unscrew nuts (4s) on rear engine mount (5)	Model 166 with engine 157, 278 Model 166 with engine 276, 642, 651 Model 292 with engine 157 Model 292 with engine 278 Bolt/nut, rear engine mount to rear engine crossmember	*BA22.10-P-1004-03G
6	Support transmission using an assembly unit mount and mounting plate
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
7	Remove screw/bolts (1) and remove rear engine crossmember (1)	Model 166 with engine 157, 278 Model 166 with engine 276, 642, 651 Model 292 with engine 157 Model 292 with engine 278 Bolt, rear engine crossmember to body	*BA22.10-P-1005-03G
8	Remove screw/bolts (5s) on rear engine mount (5) and remove engine mount (5)	Model 166 with engine 157 Model 166 with engine 276, 642, 651 Model 166 with engine 278 Model 292 with engine 157 Model 292 with engine 278 Bolt, rear engine mount to transmission	*BA22.10-P-1003-03G
9	Install in the reverse order
