Overview Of Energy Management System Components - GF54.10-P-9990GN
MODEL 166 as of model year 2016
MODEL 292

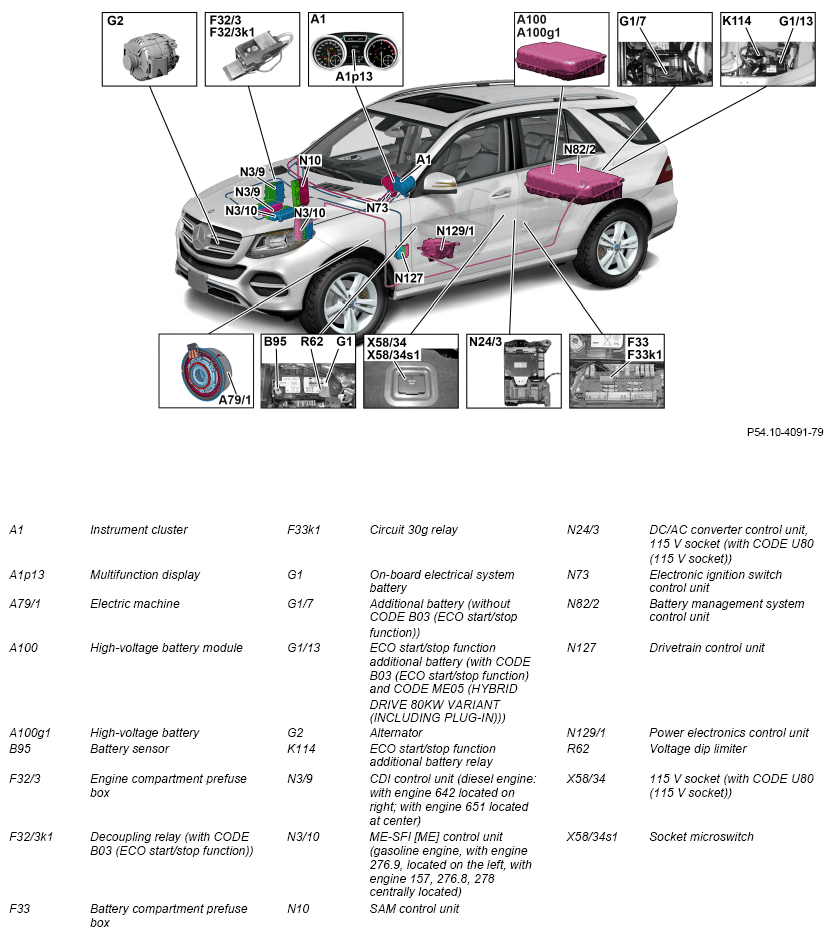

Shows model 166.0
| Component description for instrument cluster | A1 | GF54.30-P-6000GN | |
| Component description for CDI control unit | MODEL 166 with ENGINE 651.9 as of 6/1/15 as of model year 2016 N3/9 |
GF07.16-P-6000OLF | |
| MODEL 166 with ENGINE 642.8 as of model year 2016 MODEL 292 with ENGINE 642 N3/9 |
GF07.16-P-6000OGF | ||
| Component description for ME-SFI (ME) control unit | MODEL 166 (except 166.063) with ENGINE 276.8 as of model year 2016 MODEL 292 with ENGINE 276.8 N3/10 |
GF07.61-P-6000MMX | |
| MODEL 166.063 with ENGINE 276.8 as of model year 2016 N3/10 |
GF07.61-P-6000MMM | ||
| MODEL 166 with ENGINE 157.9, 278.9 as of model year 2016 MODEL 292 with ENGINE 157.9, 278.9 N3/10 |
GF07.61-P-6000MMY | ||
| MODEL 166 with ENGINE 276.9 as of model year 2016 N3/10 |
GF07.61-P-6000MNG | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Component description for battery management system control unit | MODEL 166 with ENGINE 276.821 as of model year 2016 N82/2 |
GF54.10-P-3012GRH | |
| Drivetrain control unit, component description | MODEL 166.063 with ENGINE 276.8 as of model year 2016 N127 |
GF54.21-P-2141GN | |
| Component description for power electronics control unit | MODEL 166 with ENGINE 276.821 as of model year 2016 N129/1 |
GF08.20-P-1001GRH | |
| Table of contents for function description of energy management | GF54.10-P-0990GN |
