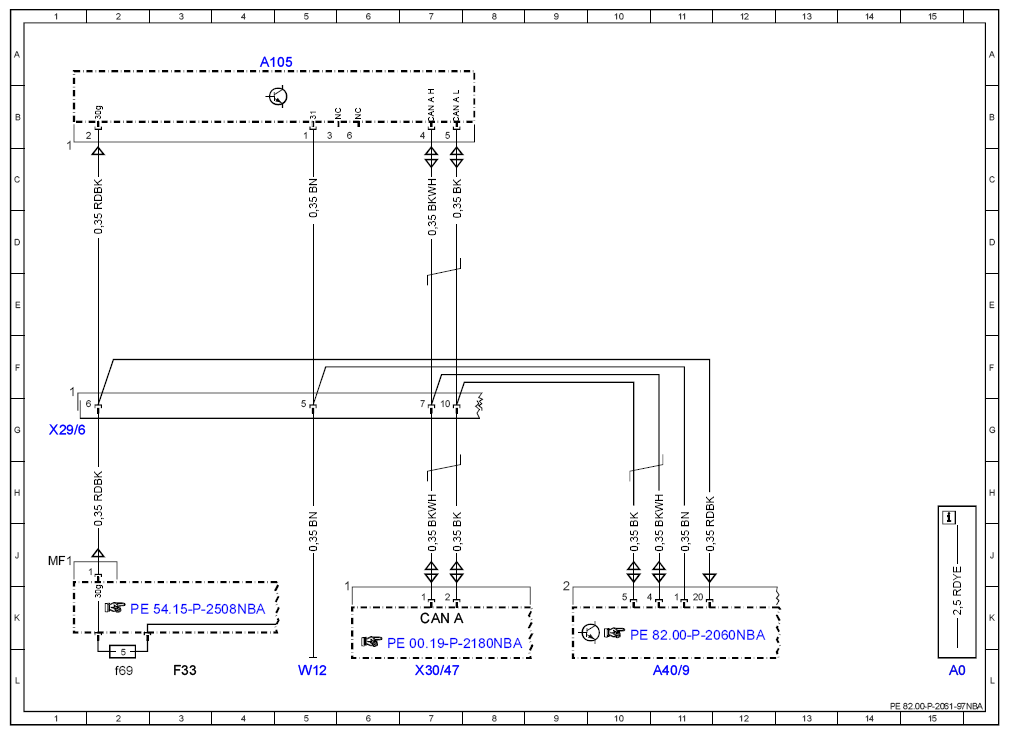

Wiring Diagram For Touchpad - PE82.00-P-2061-97NBA
MODEL 166 as of model year 2016 with CODE 531 (COMAND APS) Control unit A105
MODEL 292 with CODE 531 (COMAND APS) Control unit A105
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A105 | Touchpad | 4A |
| A40/9 | Audio/COMAND control panel | 11L |
| CAN A | Telematics CAN | 7K |
| F33 | Battery compartment prefuse box | 3L |
| F33f69 | Fuse 69 | 2L |
| W12 | Ground point (center console) | 5L |
| X29/6 | Center console electrical connector | 1G |
| X30/47 | Telematics CAN voltage distributor electrical connector | 7L |
