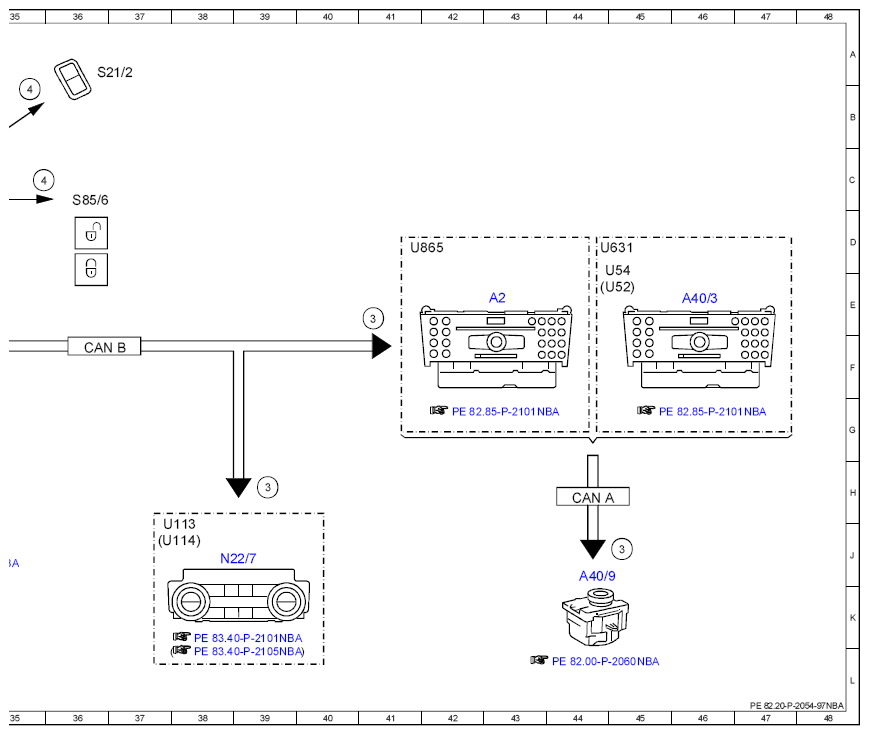

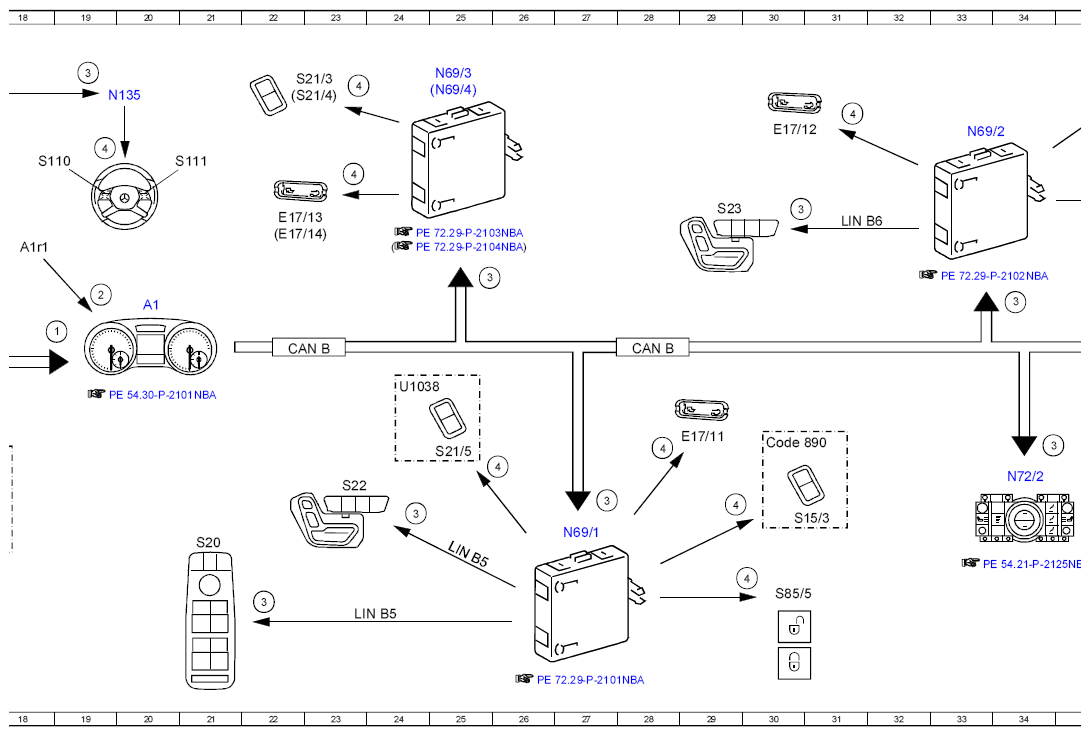

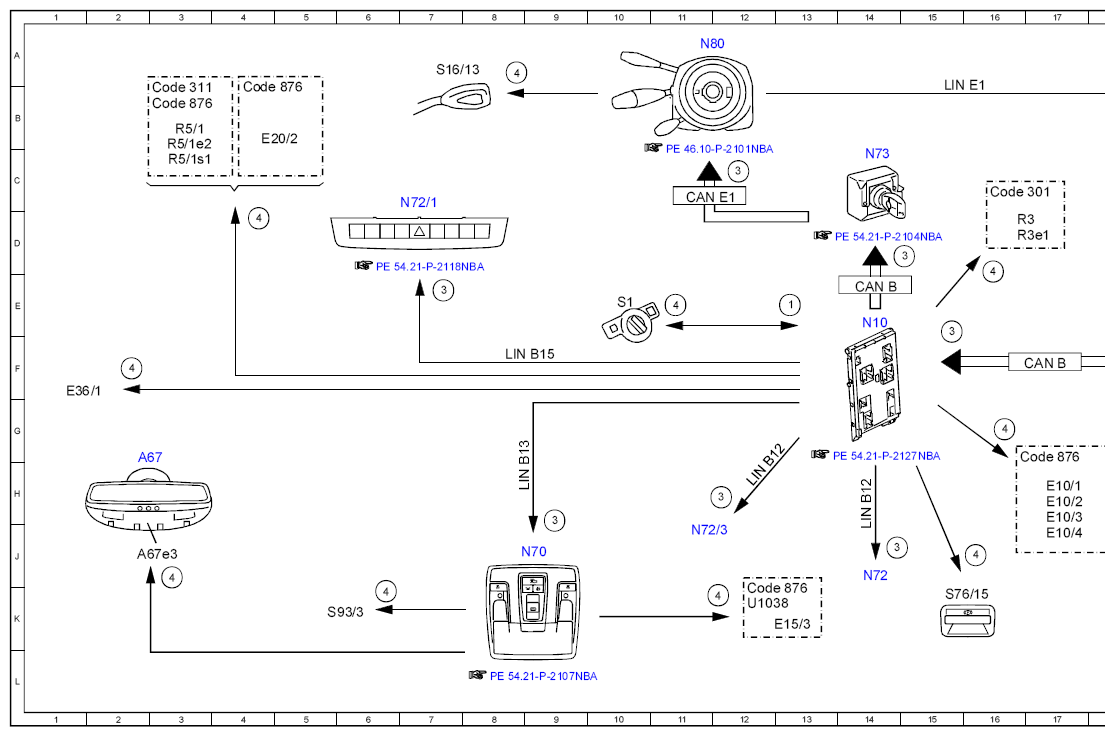

Search And Symbol Illumination Electrical Function Schematic - PE82.20-P-2054-97NBA
MODEL 166 as of model year 2016
MODEL 292
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 58, status | 13E |
| 1 | Circuit 58, status | 19E |
| 2 | Instrument illumination brightness control, status | 19E |
| 3 | Circuit 58d, status | 9H |
| 3 | Circuit 58d, status | 22K |
| 3 | Circuit 58d, status | 24H |
| 3 | Circuit 58d, status | 27H |
| 3 | Circuit 58d, status | 7E |
| 3 | Circuit 58d, status | 15E |
| 3 | Circuit 58d, status | 12C |
| 3 | Circuit 58d, status | 25E |
| 3 | Circuit 58d, status | 19A |
| 3 | Circuit 58d, status | 30D |
| 3 | Circuit 58d, status | 39H |
| 3 | Circuit 58d, status | 45J |
| 3 | Circuit 58d, status | 41E |
| 3 | Circuit 58d, status | 15D |
| 3 | Circuit 58d, status | 34E |
| 3 | Circuit 58d, status | 12H |
| 3 | Circuit 58d, status | 14J |
| 3 | Circuit 58d, status | 34G |
| 4 | Symbol and ambiance illumination, actuation | 28G |
| 4 | Symbol and ambiance illumination, actuation | 2F |
| 4 | Symbol and ambiance illumination, actuation | 4D |
| 4 | Symbol and ambiance illumination, actuation | 23C |
| 4 | Symbol and ambiance illumination, actuation | 8A |
| 4 | Symbol and ambiance illumination, actuation | 23B |
| 4 | Symbol and ambiance illumination, actuation | 30J |
| 4 | Symbol and ambiance illumination, actuation | 29H |
| 4 | Symbol and ambiance illumination, actuation | 31B |
| 4 | Symbol and ambiance illumination, actuation | 35C |
| 4 | Symbol and ambiance illumination, actuation | 35B |
| 4 | Symbol and ambiance illumination, actuation | 16E |
| 4 | Symbol and ambiance illumination, actuation | 16G |
| 4 | Symbol and ambiance illumination, actuation | 19C |
| 4 | Symbol and ambiance illumination, actuation | 11E |
| 4 | Symbol and ambiance illumination, actuation | 26H |
| 4 | Symbol and ambiance illumination, actuation | 3J |
| 4 | Symbol and ambiance illumination, actuation | 12K |
| 4 | Symbol and ambiance illumination, actuation | 16J |
| 4 | Symbol and ambiance illumination, actuation | 6K |
| A1 | Instrument cluster | 20E |
| A1r1 | Instrument illumination brightness control | 18D |
| A2 | Radio | 43E |
| A40/3 | COMAND control unit | 46E |
| A40/9 | Audio/COMAND control panel | 44J |
| A67 | Inside rearview mirror | 2G |
| A67e3 | Ambient lamp | 2J |
| CAN A | Telematics CAN | 44H |
| CAN B | Interior CAN | 17F |
| CAN B | Interior CAN | 22F |
| CAN B | Interior CAN | 28F |
| CAN B | Interior CAN | 36F |
| CAN B | Interior CAN | 14E |
| CAN E1 | Chassis CAN 1 | 11C |
| Code 301 | Ashtray in place of stowage compartment with flap and power outlet | 16C |
| Code 311 | Temperature-controlled cup holder | 3B |
| Code 876 | Interior lights package | 4B |
| Code 876 | Interior lights package | 16G |
| Code 876 | Interior lights package | 12K |
| Code 876 | Interior lights package | 3B |
| Code 890 | Tailgate control | 30G |
| E10/1 | Left center air outlet symbol illumination | 17H |
| E10/2 | Left front side air outlet symbol illumination | 17H |
| E10/3 | Right front side air outlet symbol illumination | 17H |
| E10/4 | Right center air outlet symbol illumination | 17J |
| E15/3 | Rear dome lamp | 12K |
| E17/11 | Left front door handle illumination | 29G |
| E17/12 | Right front door handle illumination | 30B |
| E17/13 | Left rear door handle illumination | 22D |
| E17/14 | Right rear door handle illumination | 22D |
| E20/2 | Front center console cup holder illumination | 4B |
| E36/1 | Center console armrest stowage compartment switch and controls illumination | 1F |
| LIN B12 | Center console switch LIN | 12H |
| LIN B12 | Center console switch LIN | 14H |
| LIN B13 | Roof LIN | 8H |
| LIN B15 | Battery sensor LIN | 8F |
| LIN B5 | Left front door LIN | 23K |
| LIN B5 | Left front door LIN | 25J |
| LIN B6 | Right front door LIN | 31D |
| LIN E1 | Steering LIN | 15B |
| N10 | SAM control unit | 14E |
| N135 | Steering wheel electronics | 19B |
| N22/7 | Automatic air conditioning control and operating unit | 38J |
| N69/1 | Left front door control unit | 27J |
| N69/2 | Right front door control unit | 33B |
| N69/3 | Left rear door control unit | 25A |
| N69/4 | Right rear door control unit | 25B |
| N70 | Overhead control panel control unit | 8J |
| N72 | Lower control panel control unit | 14J |
| N72/1 | Upper control panel control unit | 7C |
| N72/2 | RCP [HBF] control unit | 34H |
| N72/3 | Off-Road operating panel control unit | 11J |
| N73 | Electronic ignition switch control unit | 14C |
| N80 | Steering column module control unit | 11A |
| R3 | Front cigarette lighter with ashtray illumination | 16D |
| R3e1 | Ashtray illumination | 16D |
| R5/1 | Cup holder | 3B |
| R5/1e2 | Cup holder illumination | 3B |
| R5/1s1 | Cup holder button | 3C |
| S1 | Exterior lights switch | 10E |
| S110 | Left multifunction steering wheel button group | 18C |
| S111 | Right multifunction steering wheel button group | 21C |
| S15/3 | Driver trunk lid/liftgate control button | 30H |
| S16/13 | DIRECT SELECT lever | 7A |
| S20 | Driver-side power window and outside mirror adjustment switch group | 21J |
| S21/2 | Passenger-side power window switch | 36A |
| S21/3 | Left rear power window switch | 23A |
| S21/4 | Right rear power window switch | 22B |
| S21/5 | Vent window switch | 25G |
| S22 | Left front seat adjustment switch group | 23H |
| S23 | Right front seat adjustment switch group | 29D |
| S76/15 | Electric parking brake switch | 15K |
| S85/5 | Left front door central locking interior switch | 30K |
| S85/6 | Right front door central locking interior switch | 36C |
| S93/3 | Anti-theft alarm system/emergency call system button group | 5K |
| U1038 | Valid for vehicle model designation 166.8 | 24F |
| U1038 | Valid for vehicle model designation 166.8 | 12K |
| U113 | Valid for 2-zone THERMATIC | 37J |
| U114 | Valid for 3-zone THERMOTRONIC | 37J |
| U52 | Valid for Japan | 44E |
| U54 | Valid for all except Japan | 44E |
| U631 | Valid for COMAND | 44D |
| U865 | Valid for Audio 20 | 41D |
