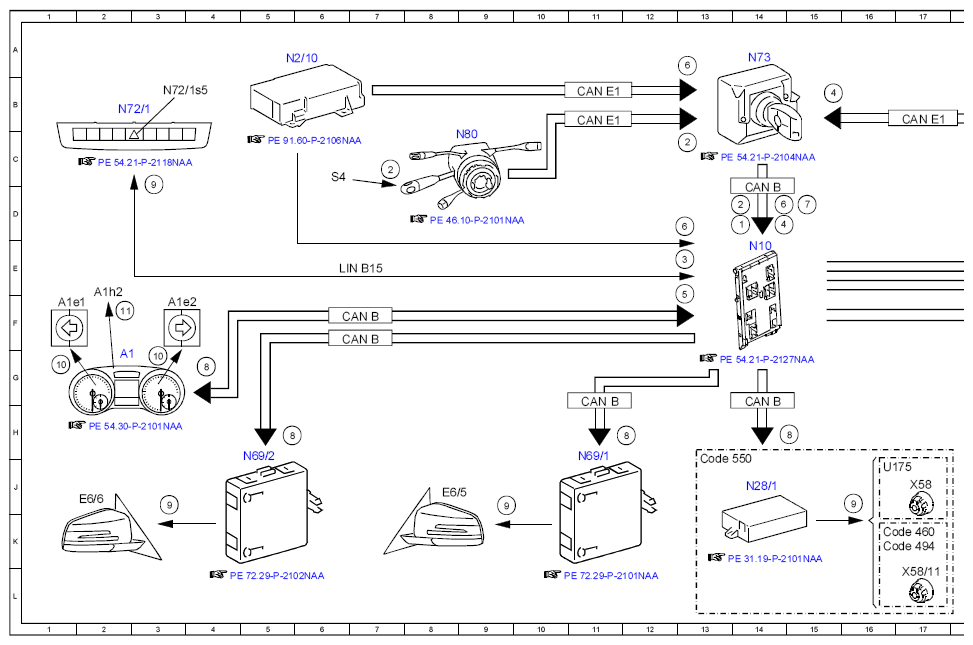

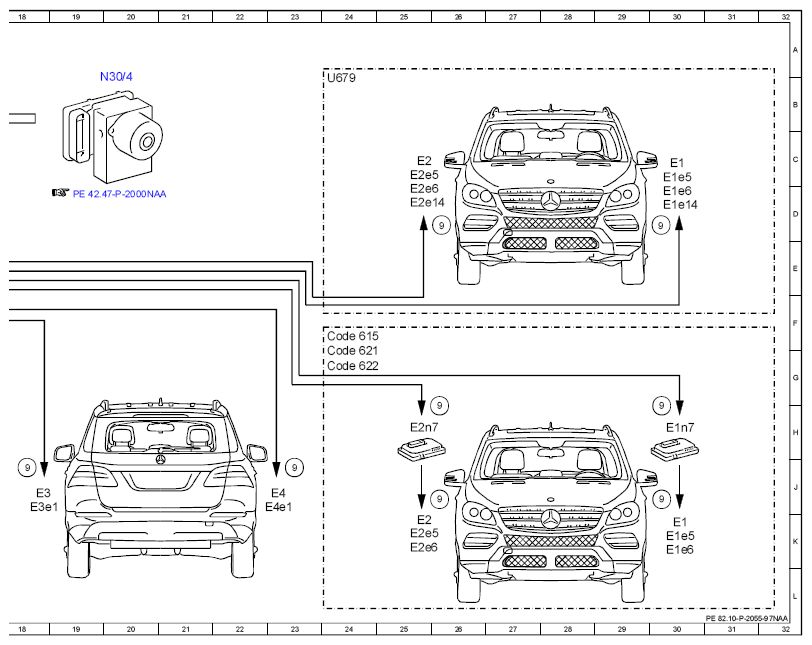

Electrical Function Schematic, Turn Signal Light Actuation - PE82.10-P-2055-97NAA
MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 14D |
| 10 | Turn signal indicator lamp, actuation | 1G |
| 10 | Turn signal indicator lamp, actuation | 3G |
| 11 | Turn signal light acoustic function check, actuation | 2F |
| 2 | Combination switch, status | 14D |
| 2 | Combination switch, status | 7C |
| 2 | Combination switch, status | 13C |
| 3 | Hazard warning system button, status | 13E |
| 4 | Emergency stop, signal | 14D |
| 4 | Emergency stop, signal | 15B |
| 5 | Vehicle speed, signal | 13F |
| 6 | Crash, signal | 14D |
| 6 | Crash, signal | 13D |
| 6 | Crash, signal | 13A |
| 7 | Central locking, status | 15D |
| 8 | Flasher frequency, signal | 4G |
| 8 | Flasher frequency, signal | 5H |
| 8 | Flasher frequency, signal | 12H |
| 8 | Flasher frequency, signal | 15H |
| 9 | Turn signal lamp, actuation | 3J |
| 9 | Turn signal lamp, actuation | 9J |
| 9 | Turn signal lamp, actuation | 3D |
| 9 | Turn signal lamp, actuation | 16J |
| 9 | Turn signal lamp, actuation | 26D |
| 9 | Turn signal lamp, actuation | 30D |
| 9 | Turn signal lamp, actuation | 18J |
| 9 | Turn signal lamp, actuation | 23J |
| 9 | Turn signal lamp, actuation | 30J |
| 9 | Turn signal lamp, actuation | 26J |
| 9 | Turn signal lamp, actuation | 30H |
| 9 | Turn signal lamp, actuation | 26H |
| A1 | Instrument cluster | 2G |
| A1e1 | Left turn signal indicator light | 1F |
| A1e2 | Right turn signal indicator light | 3F |
| A1h2 | Turn signal light function check, acoustic | 2F |
| CAN B | Interior CAN | 11H |
| CAN B | Interior CAN | 7F |
| CAN B | Interior CAN | 7F |
| CAN B | Interior CAN | 14H |
| CAN B | Interior CAN | 14D |
| CAN E1 | Chassis CAN 1 | 11B |
| CAN E1 | Chassis CAN 1 | 17B |
| CAN E1 | Chassis CAN 1 | 11B |
| Code 460 | Canada version | 16K |
| Code 494 | USA version | 16K |
| Code 550 | Trailer hitch | 13J |
| Code 615 | Bi-xenon headlamp unit with integrated curve illumination | 24F |
| Code 621 | Intelligent Light System (left-hand traffic) | 24G |
| Code 622 | Intelligent Light System (right-hand traffic) | 24G |
| E1 | Left front lamp unit | 30K |
| E1 | Left front lamp unit | 30C |
| E1e14 | Outer left turn signal lamp | 30D |
| E1e5 | Left front turn signal lamp | 30C |
| E1e5 | Left front turn signal lamp | 30K |
| E1e6 | Left front side-marker lamp | 30D |
| E1e6 | Left front side-marker lamp | 30K |
| E1n7 | Actuation module for left front exterior lights LED | 30H |
| E2 | Right front lamp unit | 25K |
| E2 | Right front lamp unit | 25C |
| E2e14 | Outer right turn signal lamp | 25D |
| E2e5 | Right front turn signal lamp | 25C |
| E2e5 | Right front turn signal lamp | 25K |
| E2e6 | Right front side-marker lamp | 25D |
| E2e6 | Right front side-marker lamp | 25K |
| E2n7 | Actuation module for right front exterior lights LED | 25H |
| E3 | Left rear lamp unit | 18J |
| E3e1 | Left rear turn signal lamp | 18J |
| E4 | Right rear lamp unit | 23J |
| E4e1 | Right rear turn signal lamp | 22J |
| E6/5 | Left outside mirror turn signal lamp | 8J |
| E6/6 | Right outside mirror turn signal lamp | 2J |
| LIN B15 | Battery sensor LIN | 7E |
| N10 | SAM control unit | 14E |
| N2/10 | Supplemental restraint system control unit | 5A |
| N28/1 | Trailer recognition control unit | 14J |
| N30/4 | Electronic Stability Program control unit | 20B |
| N69/1 | Left front door control unit | 11J |
| N69/2 | Right front door control unit | 5J |
| N72/1 | Upper control panel control unit | 2B |
| N72/1s5 | Hazard warning system button | 3B |
| N73 | Electronic ignition switch control unit | 14A |
| N80 | Steering column module control unit | 8C |
| S4 | Combination switch | 6C |
| U175 | Valid for all except {{USA}} and {{Canada}} | 16J |
| U679 | Valid for version without xenon headlamps | 24B |
| X58 | Trailer socket | 17J |
| X58/11 | Trailer socket (7-pin) | 17L |
