Electrical Function Schematic, Headlamp Switch-Off Delay (SWA) - PE82.10-P-2062-97NBA
MODEL 166 as of model year 2016
MODEL 292
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Headlamp switch-off delay, request | 11E |
| 10 | Ambient lamp, request | 5F |
| 10 | Ambient lamp, request | 8H |
| 10 | Ambient lamp, request | 5D |
| 10 | Ambient lamp, request | 21C |
| 10 | Ambient lamp, request | 32D |
| 10 | Ambient lamp, request | 39D |
| 11 | Ambient lamp, actuation | 3G |
| 11 | Ambient lamp, actuation | 6L |
| 11 | Ambient lamp, actuation | 3J |
| 11 | Ambient lamp, actuation | 9L |
| 11 | Ambient lamp, actuation | 26B |
| 11 | Ambient lamp, actuation | 39C |
| 11 | Ambient lamp, actuation | 32C |
| 11 | Ambient lamp, actuation | 19B |
| 12 | Door rotary tumbler switch, status | 11E |
| 12 | Door rotary tumbler switch, status | 12G |
| 12 | Door rotary tumbler switch, status | 14C |
| 13 | Tailgate rotary tumbler switch, status | 14D |
| 2 | Rain/light sensor, status | 13C |
| 3 | Exterior lights switch, status | 12C |
| 4 | Circuit 15, status | 11D |
| 5 | Central locking, status | 11D |
| 6 | Standing and parking lights, request | 13H |
| 7 | Standing and parking lights, actuation | 18H |
| 7 | Standing and parking lights, actuation | 24H |
| 7 | Standing and parking lights, actuation | 33H |
| 7 | Standing and parking lights, actuation | 38H |
| 7 | Standing and parking lights, actuation | 14J |
| 7 | Standing and parking lights, actuation | 32C |
| 7 | Standing and parking lights, actuation | 38C |
| 7 | Standing and parking lights, actuation | 32D |
| 7 | Standing and parking lights, actuation | 39D |
| 8 | License plate lamp, actuation | 21K |
| 8 | License plate lamp, actuation | 14J |
| A1 | Instrument cluster | 2D |
| B38/2 | Rain/light sensor with additional functions | 15B |
| CAN B | Interior CAN | 7H |
| CAN B | Interior CAN | 7E |
| CAN B | Interior CAN | 7F |
| CAN B | Interior CAN | 7D |
| CAN B | Interior CAN | 13G |
| CAN B | Interior CAN | 20E |
| CAN B | Interior CAN | 20D |
| CAN B | Interior CAN | 28E |
| CAN E2 | Chassis CAN 2 | 20C |
| CAN E2 | Chassis CAN 2 | 25C |
| CAN E2 | Chassis CAN 2 | 6A |
| CAN E2 | Chassis CAN 2 | 6A |
| CAN E2 | Chassis CAN 2 | 12A |
| CAN E2 | Chassis CAN 2 | 12A |
| CAN E2 | Chassis CAN 2 | 20A |
| CAN E2 | Chassis CAN 2 | 20A |
| CAN E2 | Chassis CAN 2 | 28A |
| CAN E2 | Chassis CAN 2 | 28A |
| CAN E2 | Chassis CAN 2 | 36A |
| Code 460 | Canada version | 15K |
| Code 494 | USA version | 15K |
| Code 550 | Trailer hitch | 11H |
| Code 640 | High Performance LED | 31B |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 31B |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 31B |
| Code 889 | KEYLESS-GO | 9J |
| Code 889 | KEYLESS-GO | 1J |
| Code 889 | KEYLESS-GO | 26B |
| Code 889 | KEYLESS-GO | 17B |
| Code 893 | KEYLESS-GO start function | 9J |
| Code 893 | KEYLESS-GO start function | 1J |
| Code 893 | KEYLESS-GO start function | 26B |
| Code 893 | KEYLESS-GO start function | 17B |
| Code P49 | Mirror package | 1G |
| Code P49 | Mirror package | 5J |

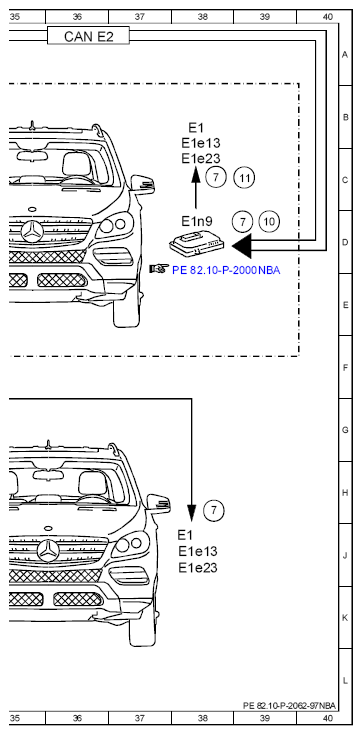

| E1 | Left front lamp unit | 38J |
| E1 | Left front lamp unit | 38B |
| E17/23 | Left rear door exterior door handle illumination | 18B |
| E17/24 | Right rear door exterior door handle illumination | 27B |
| E17/7 | Left front door exterior door handle illumination | 10K |
| E17/8 | Right front door exterior door handle illumination | 2K |
| E19/3 | Left liftgate license plate lamp | 20K |
| E19/4 | Right liftgate license plate lamp | 21K |
| E1e13 | Left parking light, standing light and daytime running light | 38J |
| E1e13 | Left parking light, standing light and daytime running light | 38B |
| E1e23 | Left front ambient light | 38C |
| E1e23 | Left front ambient light | 38J |
| E1n9 | Left headlamp control unit | 38D |
| E2 | Right front lamp unit | 33J |
| E2 | Right front lamp unit | 32B |
| E2e13 | Right parking light, standing light and daytime running light | 33J |
| E2e13 | Right parking light, standing light and daytime running light | 32B |
| E2e23 | Right front ambient light | 32C |
| E2e23 | Right front ambient light | 33J |
| E2n9 | Right headlamp control unit | 32D |
| E3 | Left rear lamp unit | 18H |
| E3/1 | Inner left rear lamp unit | 18H |
| E3/1e2 | Left inside taillight | 18J |
| E3e16 | Outer left taillight | 17J |
| E4 | Right rear lamp unit | 24H |
| E4/1 | Inner right rear lamp unit | 23H |
| E4/1e2 | Right inside taillight | 23H |
| E4e16 | Outer right taillight | 24H |
| LIN B13 | Roof LIN | 14B |
| M21/1 | Left outside mirror | 1F |
| M21/1e1 | Left outside mirror ambient lamp | 1G |
| M21/2 | Right outside mirror | 5J |
| M21/2e1 | Right outside mirror ambient lamp | 5K |

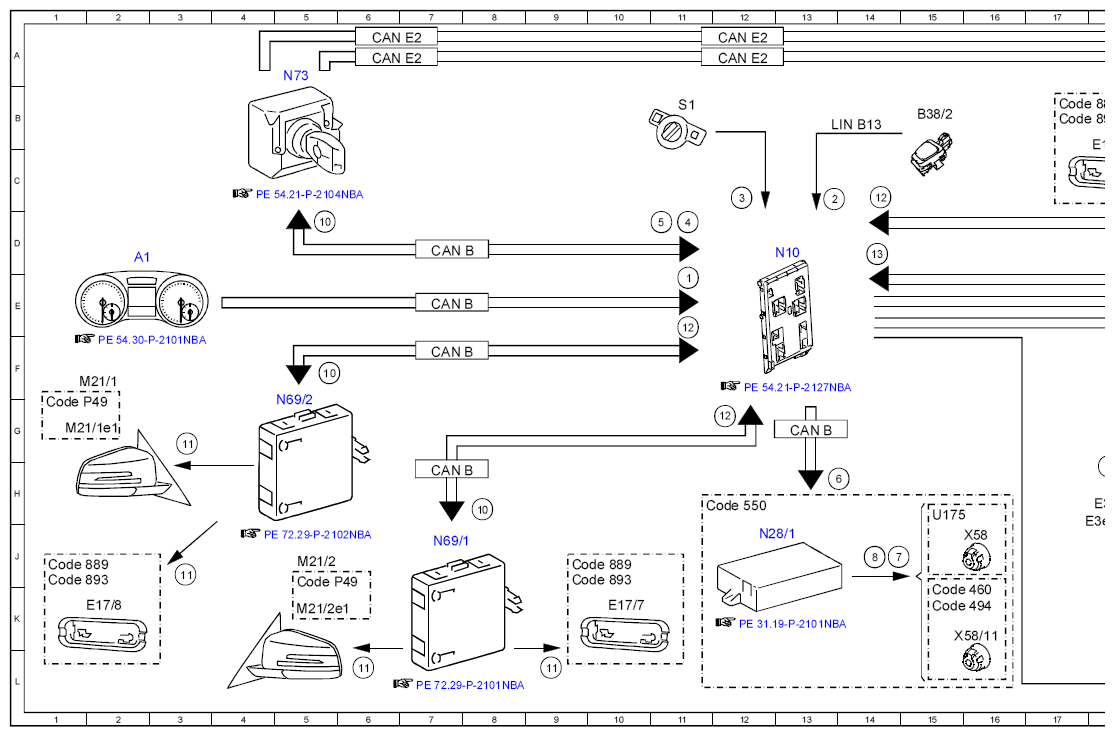

| N10 | SAM control unit | 13D |

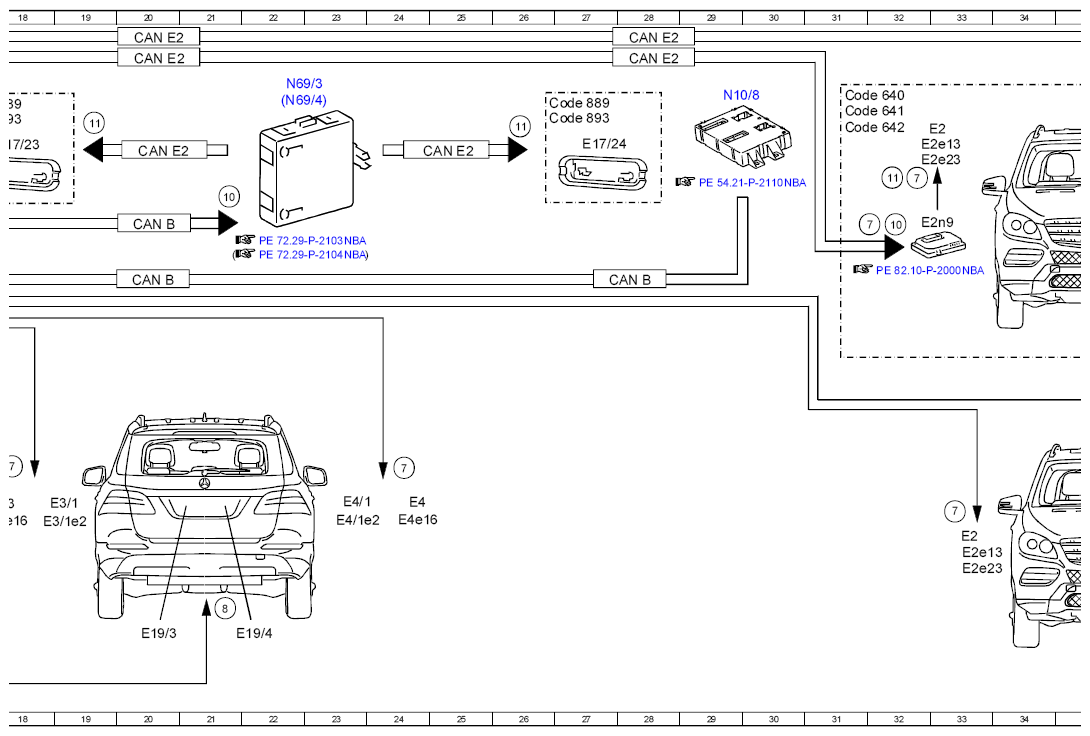

| N10/8 | Rear control unit | 29B |
| N28/1 | Trailer recognition control unit | 12J |
| N69/1 | Left front door control unit | 7J |
| N69/2 | Right front door control unit | 5G |
| N69/3 | Left rear door control unit | 22B |
| N69/4 | Right rear door control unit | 22B |
| N73 | Electronic ignition switch control unit | 5A |
| S1 | Exterior lights switch | 11B |
| U175 | Valid for all except {{USA}} and {{Canada}} | 15H |
| X58 | Trailer socket | 16J |
| X58/11 | Trailer socket (7-pin) | 15K |
