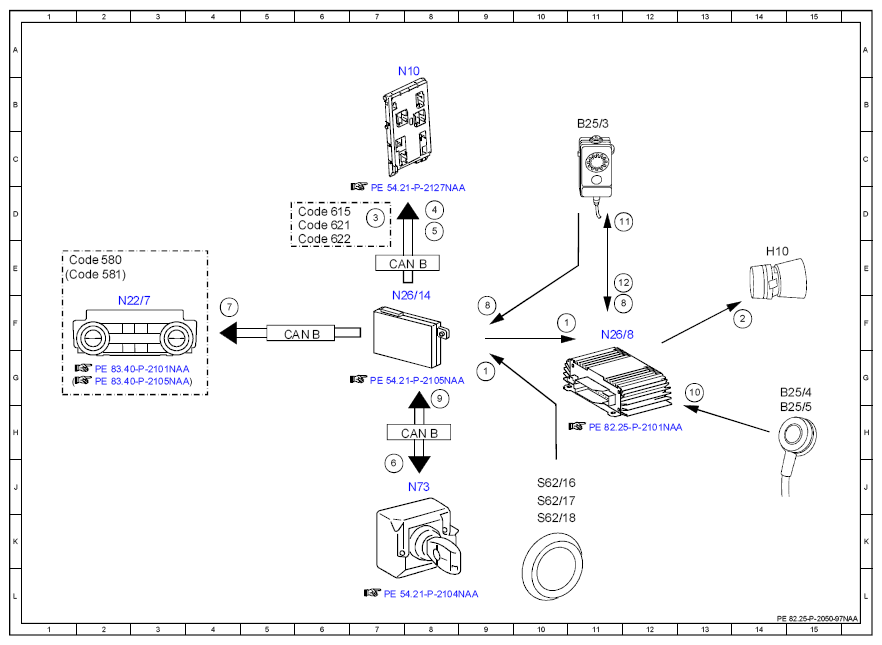

Electrical Function Schematic For Panic Alarm System (PAS (GAS)) - PE82.25-P-2050-97NAA
MODEL 166 with CODE Z22 (Panic alarm system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Emergency alarm system button, status | 11F |
| 1 | Emergency alarm system button, status | 9G |
| 10 | Outside mirror PAS [GAS] microphone, signal | 13G |
| 11 | Vehicle interior PAS [GAS] microphone, actuation | 12D |
| 12 | Vehicle interior PAS [GAS] microphone, signal | 12E |
| 2 | Outside PAS [GAS] speaker, actuation | 14F |
| 3 | Low beams, request | 7D |
| 4 | High beams, request | 8D |
| 5 | Alarm flasher, request | 8D |
| 6 | Open/close central locking, request | 7J |
| 7 | Switch on recirculated air mode, request | 4F |
| 8 | Deactivate panic alarm, request | 9F |
| 8 | Deactivate panic alarm, request | 11F |
| 9 | Circuit 15, status | 8G |
| B25/3 | Vehicle interior PAS [GAS] microphone | 11B |
| B25/4 | Left outside mirror PAS [GAS] microphone | 14G |
| B25/5 | Right outside mirror PAS [GAS] microphone | 14H |
| CAN B | Interior CAN | 8H |
| CAN B | Interior CAN | 7E |
| CAN B | Interior CAN | 5F |
| Code 580 | Automatic air conditioning | 1E |
| Code 581 | Comfort automatic air conditioning | 1E |
| Code 615 | Bi-xenon headlamp unit with integrated curve illumination | 6D |
| Code 621 | Intelligent Light System (left-hand traffic) | 6D |
| Code 622 | Intelligent Light System (right-hand traffic) | 6E |
| H10 | Outside PAS [GAS] speaker | 14E |
| N10 | SAM control unit | 8A |
| N22/7 | Automatic air conditioning control and operating unit | 2F |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 7F |
| N26/8 | PAS (GAS) control unit | 11F |
| N73 | Electronic ignition switch control unit | 8J |
| S62/16 | Left footwell emergency alarm system button | 10J |
| S62/17 | Right footwell emergency alarm system button | 10J |
| S62/18 | Rear air vent emergency alarm system button | 10K |
