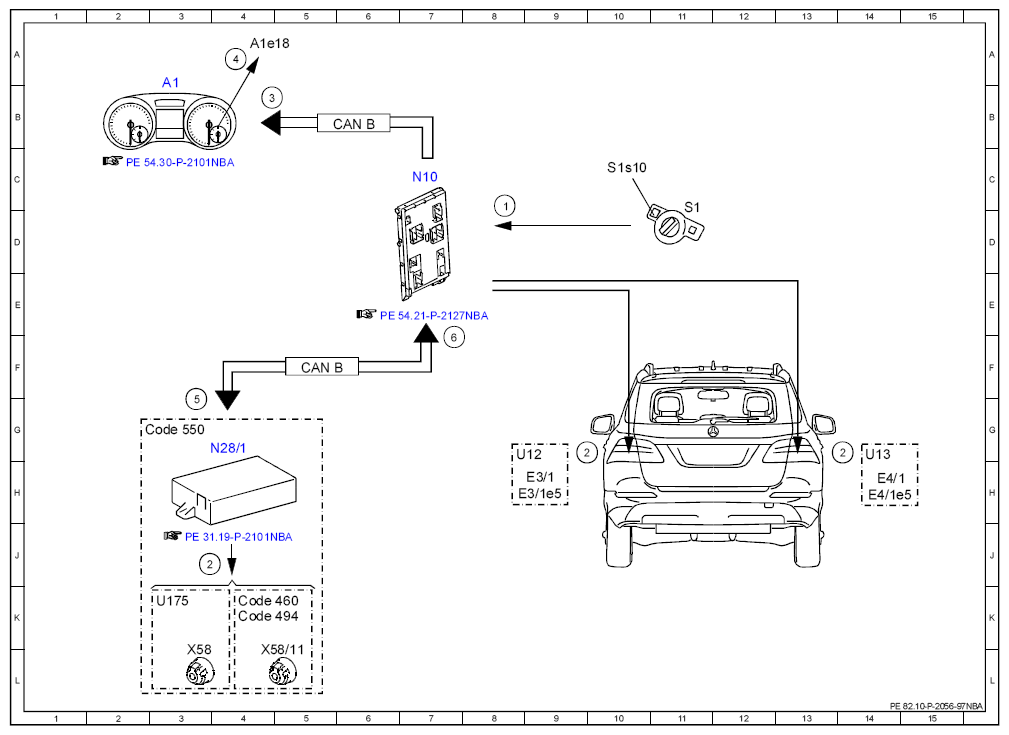

Electrical Function Schematic For Front Fog Light Actuation - PE82.10-P-2056-97NBA
MODEL 166 as of model year 2016
MODEL 292
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 8C |
| 2 | Rear fog light, actuation | 9G |
| 2 | Rear fog light, actuation | 14G |
| 2 | Rear fog light, actuation | 3J |
| 3 | Rear fog light indicator lamp, request | 4B |
| 4 | Rear fog light indicator light, actuation | 4A |
| 5 | Rear fog light, request | 3G |
| 6 | Trailer recognition, status | 7F |
| A1 | Instrument cluster | 3B |
| A1e18 | Rear fog lamp indicator lamp | 4A |
| CAN B | Interior CAN | 6B |
| CAN B | Interior CAN | 5F |
| Code 460 | Canada version | 4K |
| Code 494 | USA version | 4K |
| Code 550 | Trailer hitch | 2G |
| E3/1 | Inner left rear lamp unit | 9H |
| E3/1e5 | Left rear fog lamp | 9H |
| E4/1 | Inner right rear lamp unit | 14H |
| E4/1e5 | Right rear fog lamp | 14H |
| N10 | SAM control unit | 7C |
| N28/1 | Trailer recognition control unit | 3G |
| S1 | Exterior lights switch | 11D |
| S1s10 | Rear fog light button | 10C |
| U12 | Valid for left-hand drive vehicles | 8G |
| U13 | Valid for right-hand drive vehicles | 14G |
| U175 | Valid for all except {{USA}} and {{Canada}} | 3K |
| X58 | Trailer socket | 3L |
| X58/11 | Trailer socket (7-pin) | 4L |
