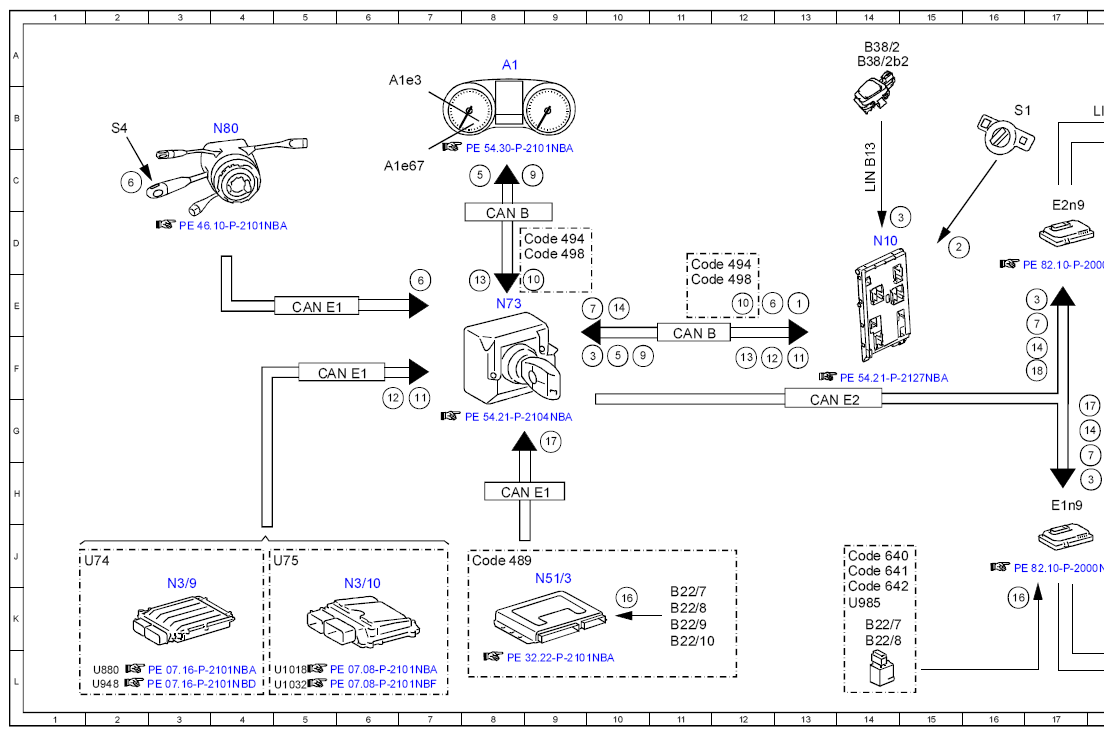

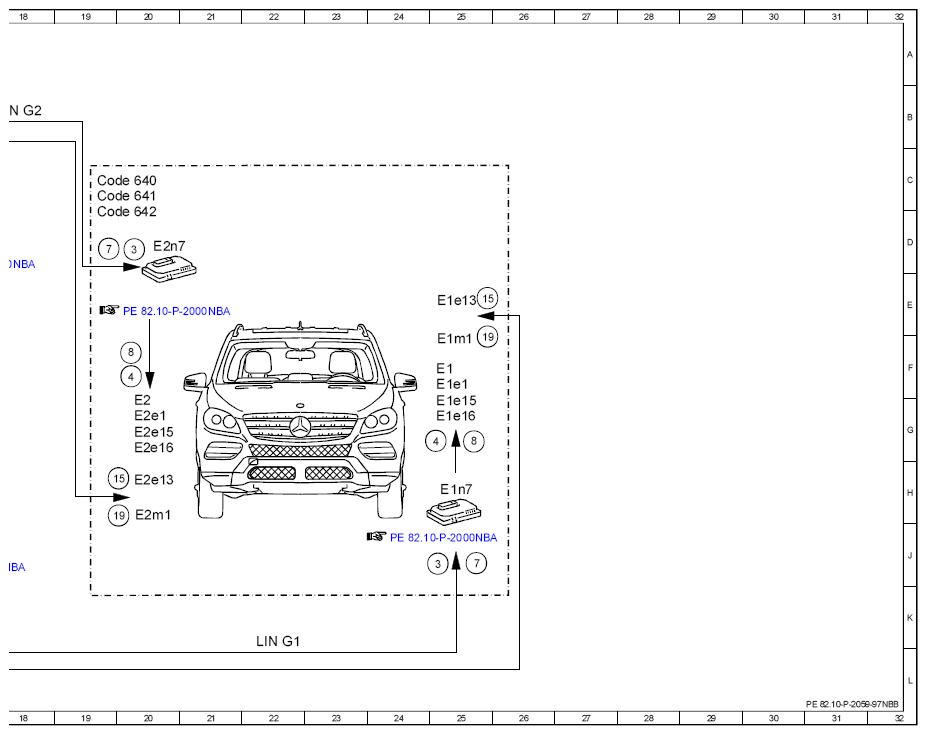

Electrical Function Schematic For Driving Light Actuation - PE82.10-P-2059-97NBB
MODEL 166 as of model year 2016 with CODE 640 (High-performance LED)
MODEL 166 as of model year 2016 with CODE 641 (Headlamps, LED, dynamic, left-side traffic)
MODEL 166 as of model year 2016 with CODE 642 (Headlamps, LED, dynamic, right-side traffic)
MODEL 292 with CODE 640 (High-performance LED)
MODEL 292 with CODE 641 (Headlamps, LED, dynamic, left-side traffic)
MODEL 292 with CODE 642 (Headlamps, LED, dynamic, right-side traffic)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 13E |
| 10 | Instrument cluster, request | 9E |
| 10 | Instrument cluster, request | 12E |
| 11 | Engine running, signal | 7G |
| 11 | Engine running, signal | 13F |
| 12 | Drivetrain operational, signal | 6G |
| 12 | Drivetrain operational, signal | 12F |
| 13 | Vehicle speed, signal | 8E |
| 13 | Vehicle speed, signal | 12F |
| 14 | Daytime running lights, request | 17F |
| 14 | Daytime running lights, request | 17G |
| 14 | Daytime running lights, request | 10E |
| 15 | Daytime running lights, actuation | 19H |
| 15 | Daytime running lights, actuation | 25E |
| 16 | Level sensor, signal | 10K |
| 16 | Level sensor, signal | 16K |
| 17 | Vehicle level, status | 17G |
| 17 | Vehicle level, status | 9G |
| 18 | Synchronization, signal | 17F |
| 19 | Headlamp range adjustment actuator motor, actuation | 19H |
| 19 | Headlamp range adjustment actuator motor, actuation | 25F |
| 2 | Exterior lights switch, status | 15D |
| 3 | Low beams, request | 17E |
| 3 | Low beams, request | 18H |
| 3 | Low beams, request | 25J |
| 3 | Low beams, request | 10F |
| 3 | Low beams, request | 14D |
| 3 | Low beams, request | 20D |
| 4 | Low beams, actuation | 20F |
| 4 | Low beams, actuation | 25G |
| 5 | Low beams indicator lamp, request | 8C |
| 5 | Low beams indicator lamp, request | 10F |
| 6 | Combination switch, status | 2C |
| 6 | Combination switch, status | 7E |
| 6 | Combination switch, status | 12E |
| 7 | High beams, request | 17E |
| 7 | High beams, request | 18G |
| 7 | High beams, request | 25J |
| 7 | High beams, request | 10E |
| 7 | High beams, request | 19D |
| 8 | High beams, actuation | 20F |
| 8 | High beams, actuation | 25G |
| 9 | High beams, status | 9C |
| 9 | High beams, status | 10F |
| A1 | Instrument cluster | 8A |
| A1e3 | High beam indicator lamp | 6A |
| A1e67 | Low beam indicator lamp | 6C |
| B22/10 | Right rear level sensor | 11K |
| B22/7 | Left rear level sensor | 11K |
| B22/7 | Left rear level sensor | 14K |
| B22/8 | Left front level sensor | 11K |
| B22/8 | Left front level sensor | 14K |
| B22/9 | Right front level sensor | 11K |
| B38/2 | Rain/light sensor with additional functions | 14A |
| B38/2b2 | Light sensor | 14A |
| CAN B | Interior CAN | 8D |
| CAN B | Interior CAN | 11F |
| CAN E1 | Chassis CAN 1 | 8H |
| CAN E1 | Chassis CAN 1 | 5F |
| CAN E1 | Chassis CAN 1 | 5E |
| CAN E2 | Chassis CAN 2 | 13G |
| Code 489 | AIRMATIC | 8J |
| Code 494 | USA version | 11D |
| Code 494 | USA version | 9D |
| Code 498 | Japan version | 11E |
| Code 498 | Japan version | 9D |
| Code 640 | High Performance LED | 14J |
| Code 640 | High Performance LED | 19C |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 14J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 19C |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 14K |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 19D |
| E1 | Left front lamp unit | 25F |
| E1e1 | Left high beam | 25F |
| E1e13 | Left parking light, standing light and daytime running light | 25E |
| E1e15 | Left low beam (short range) | 25G |
| E1e16 | Left low beam (long range) | 25G |
| E1m1 | Left headlamp range adjustment actuator motor | 25F |
| E1n7 | Actuation module for left front exterior lights LED | 25H |
| E1n9 | Left headlamp control unit | 17H |
| E2 | Right front lamp unit | 20G |
| E2e1 | Right high beam | 20G |
| E2e13 | Right parking light, standing light and daytime running light | 20H |
| E2e15 | Right low beam (short range) | 20G |
| E2e16 | Right low beam (long range) | 20G |
| E2m1 | Right headlamp range adjustment actuator motor | 20H |
| E2n7 | Actuation module for right front exterior lights LED | 20D |
| E2n9 | Right headlamp control unit | 17C |
| LIN B13 | Roof LIN | 14C |
| LIN G1 | Left headlamp LIN | 22K |
| LIN G2 | Right headlamp LIN | 18B |
| N10 | SAM control unit | 14D |
| N3/10 | ME-SFI [ME] control unit | 6K |
| N3/9 | CDI control unit | 3K |
| N51/3 | AIRMATIC control unit | 9J |
| N73 | Electronic ignition switch control unit | 8E |
| N80 | Steering column module control unit | 4B |
| S1 | Exterior lights switch | 16B |
| S4 | Combination switch | 2B |
| U1018 | Valid for gasoline engine 276 | 5L |
| U1032 | Valid for engine 278 and 157 | 5L |
| U74 | Valid for diesel engines | 1J |
| U75 | Valid for gasoline engines | 4J |
| U880 | Valid for engine 642 | 2L |
| U948 | Valid for diesel engine 651 | 2L |
| U985 | Not valid for AIRMATIC | 14K |
