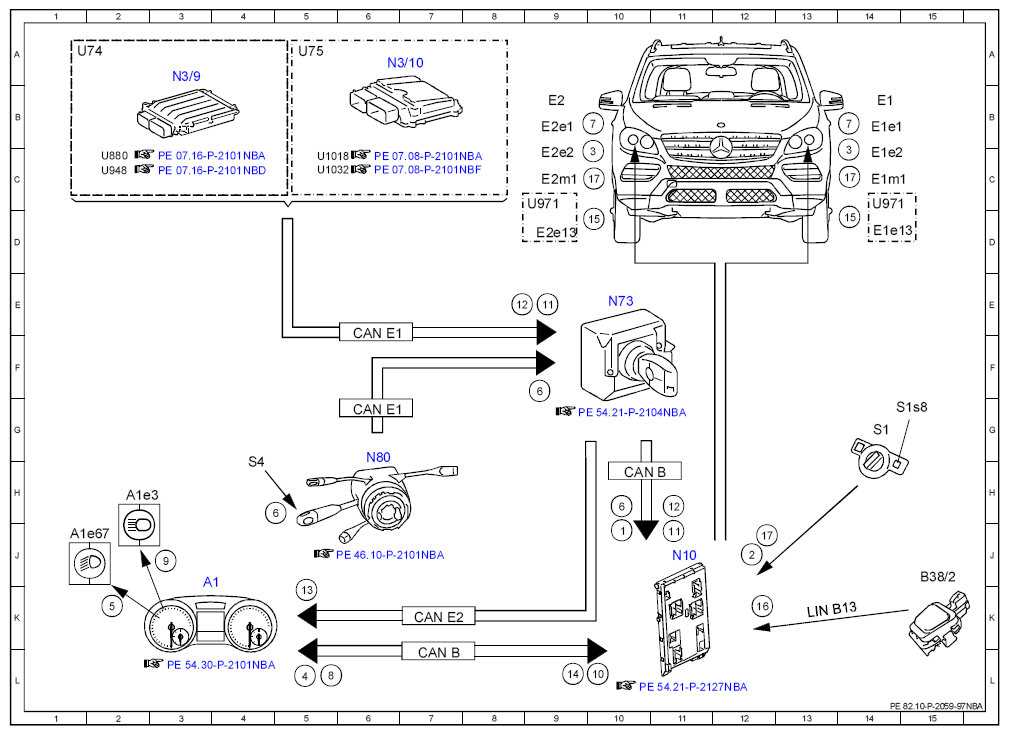

Electrical Function Schematic For Driving Light Actuation - PE82.10-P-2059-97NBA
MODEL 166 as of model year 2016 without CODE 640 (High-performance LED) without CODE 641 (Headlamps, LED, dynamic, left-side traffic) without CODE 642 (Headlamps, LED, dynamic, right-side traffic)
MODEL 292 without CODE 640 (High-performance LED) without CODE 641 (Headlamps, LED, dynamic, left-side traffic) without CODE 642 (Headlamps, LED, dynamic, right-side traffic)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 10J |
| 10 | Daytime running lights, request | 10L |
| 11 | Engine running, signal | 9E |
| 11 | Engine running, signal | 11J |
| 12 | Drivetrain operational, signal | 8E |
| 12 | Drivetrain operational, signal | 11H |
| 13 | Wheel speed, signal | 5K |
| 14 | Vehicle speed, signal | 9L |
| 15 | Daytime running lights, actuation | 10D |
| 15 | Daytime running lights, actuation | 14D |
| 16 | Rain/light sensor, status | 12K |
| 17 | Headlamp range adjustment actuator motor, actuation | 10C |
| 17 | Headlamp range adjustment actuator motor, actuation | 14C |
| 17 | Headlamp range adjustment actuator motor, actuation | 12J |
| 2 | Exterior lights switch, status | 12J |
| 3 | Low beams, actuation | 10C |
| 3 | Low beams, actuation | 14C |
| 4 | Low beams indicator lamp, request | 5L |
| 5 | Low beams indicator lamp, actuation | 2K |
| 6 | Combination switch, status | 9F |
| 6 | Combination switch, status | 10H |
| 6 | Combination switch, status | 4H |
| 7 | High beams, actuation | 10B |
| 7 | High beams, actuation | 14B |
| 8 | High beams, status | 5L |
| 9 | High beam indicator lamp, actuation | 3J |
| A1 | Instrument cluster | 3K |
| A1e3 | High beam indicator lamp | 2H |
| A1e67 | Low beam indicator lamp | 1J |
| B38/2 | Rain/light sensor with additional functions | 15J |
| CAN B | Interior CAN | 10H |
| CAN B | Interior CAN | 7L |
| CAN E1 | Chassis CAN 1 | 6G |
| CAN E1 | Chassis CAN 1 | 6F |
| CAN E2 | Chassis CAN 2 | 7K |
| E1 | Left front lamp unit | 14B |
| E1e1 | Left high beam | 14B |
| E1e13 | Left parking light, standing light and daytime running light | 14D |
| E1e2 | Left low beam | 14C |
| E1m1 | Left headlamp range adjustment actuator motor | 14C |
| E2 | Right front lamp unit | 9B |
| E2e1 | Right high beam | 9B |
| E2e13 | Right parking light, standing light and daytime running light | 9D |
| E2e2 | Right low beam | 9C |
| E2m1 | Right headlamp range adjustment actuator motor | 9C |
| LIN B13 | Roof LIN | 13K |
| N10 | SAM control unit | 11J |
| N3/10 | ME-SFI [ME] control unit | 6A |
| N3/9 | CDI control unit | 3A |
| N73 | Electronic ignition switch control unit | 10E |
| N80 | Steering column module control unit | 6H |
| S1 | Exterior lights switch | 14G |
| S1s8 | Headlamp range controller | 14G |
| S4 | Combination switch | 4H |
| U1018 | Valid for gasoline engine 276 | 5C |
| U1032 | Valid for engine 278 and 157 | 5C |
| U74 | Valid for diesel engines | 1A |
| U75 | Valid for gasoline engines | 5A |
| U880 | Valid for engine 642 | 2C |
| U948 | Valid for diesel engine 651 | 2C |
| U971 | Valid for daytime running lamps | 9C |
| U971 | Valid for daytime running lamps | 14C |
