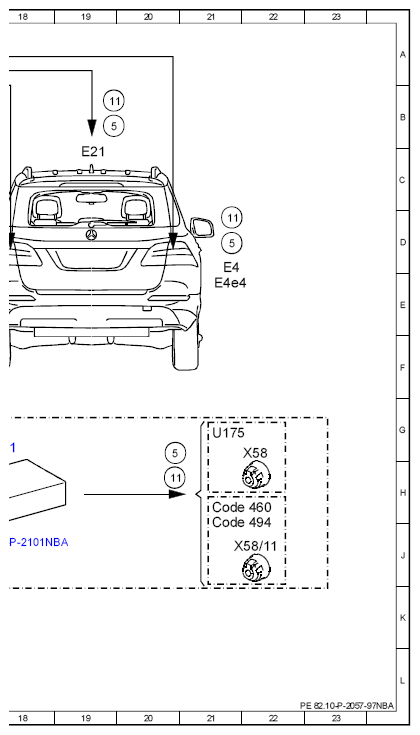

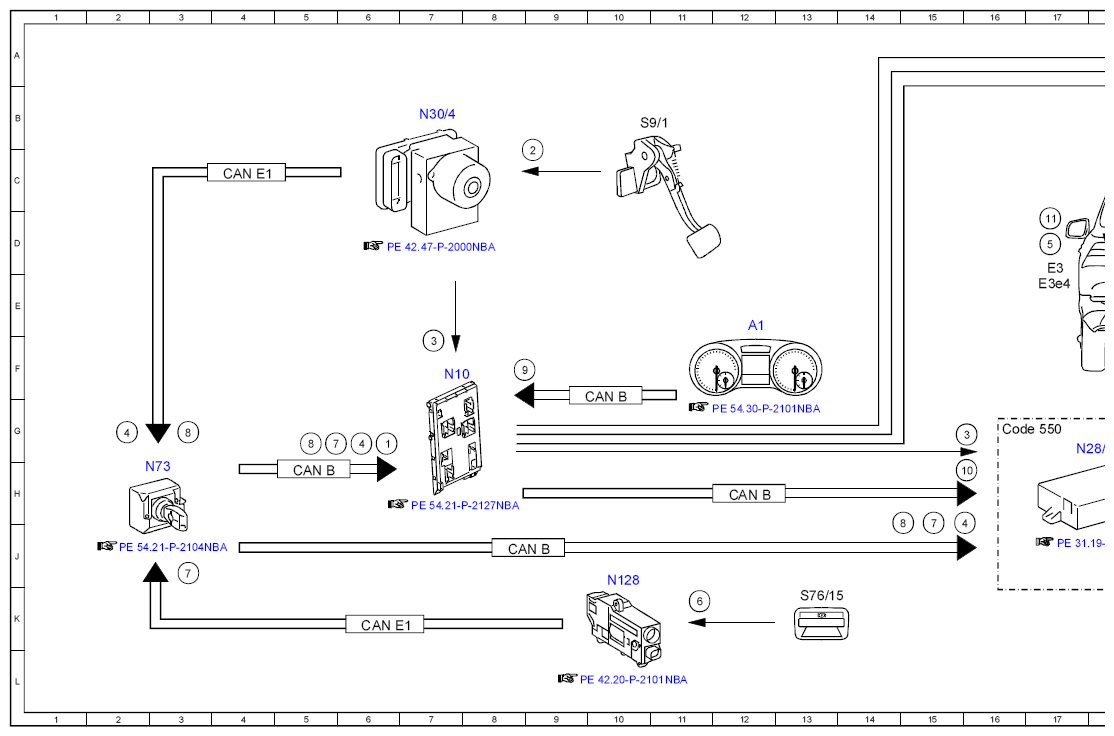

Electrical Function Schematic For Brake Light Actuation - PE82.10-P-2057-97NBA

MODEL 166 as of model year 2016

MODEL 292

Code:	Designation:	Position:
1	Circuit 15, status	6G
10	Brake light dark phase, signal	16H
11	Flashing brake lights, actuation	19B
11	Flashing brake lights, actuation	17D
11	Flashing brake lights, actuation	21D
11	Flashing brake lights, actuation	20H
2	Brake light switch, status	9C
3	Circuit 54, status	7F
3	Circuit 54, status	16G
4	Service brake, status	6G
4	Service brake, status	16J
4	Service brake, status	2G
5	Brake lights, actuation	17D
5	Brake lights, actuation	21D
5	Brake lights, actuation	19B
5	Brake lights, actuation	20G
6	Electric parking brake switch, status	11K
7	Brake lights, request	3J
7	Brake lights, request	15J
7	Brake lights, request	5G
8	Emergency stop, signal	3G
8	Emergency stop, signal	15J
8	Emergency stop, signal	5G
9	Vehicle speed, signal	8F
A1	Instrument cluster	12E
CAN B	Interior CAN	5H
CAN B	Interior CAN	8J
CAN B	Interior CAN	10G
CAN B	Interior CAN	12H
CAN E1	Chassis CAN 1	6K
CAN E1	Chassis CAN 1	4C
Code 460	Canada version	21H
Code 494	USA version	21J
Code 550	Trailer hitch	16G
E21	Center stop lamp	19C
E3	Left rear lamp unit	17D
E3e4	Left stop lamp	17E
E4	Right rear lamp unit	21D
E4e4	Right stop lamp	21E
N10	SAM control unit	7F
N128	Electric parking brake control unit	10J
N28/1	Trailer recognition control unit	17G
N30/4	Electronic Stability Program control unit	7B
N73	Electronic ignition switch control unit	3H
S76/15	Electric parking brake switch	13K
S9/1	Stop lamp switch	10B
U175	Valid for all except {{USA}} and {{Canada}}	21G
X58	Trailer socket	22G
X58/11	Trailer socket (7-pin)	21J
