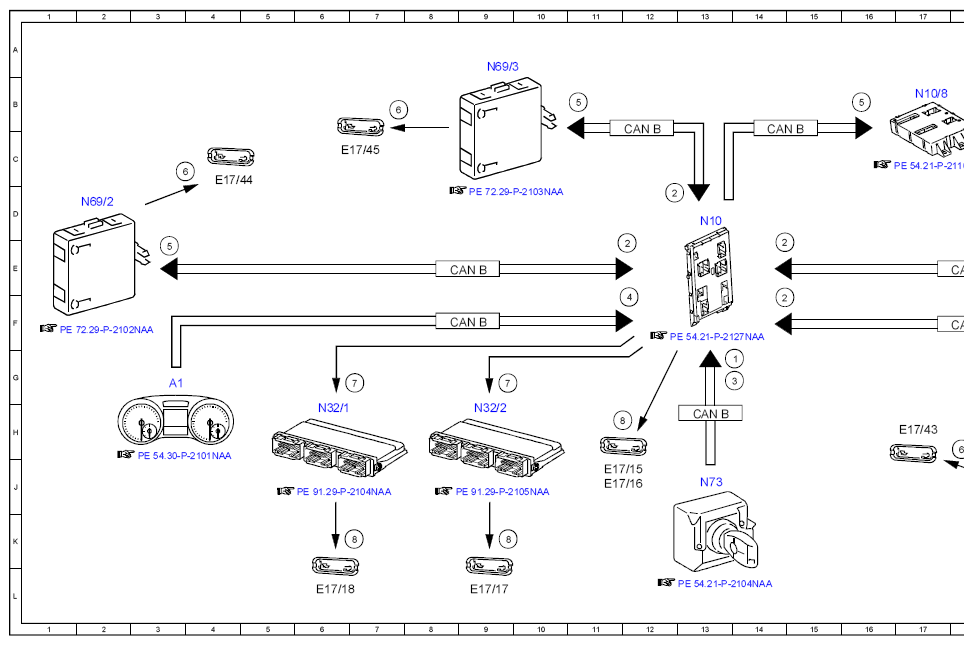

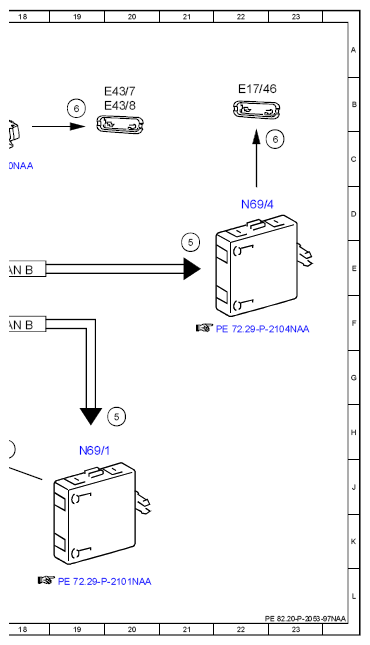

Electrical Function Schematic Ambiance Illumination - PE82.20-P-2053-97NAA
MODEL 166 up to model year 2016 with CODE 876 (Interior lighting package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 14G |
| 2 | Main locking position microswitch, status | 13D |
| 2 | Main locking position microswitch, status | 12D |
| 2 | Main locking position microswitch, status | 14D |
| 2 | Main locking position microswitch, status | 14E |
| 3 | Central locking, status | 14G |
| 4 | Ambiance illumination brightness, status | 12F |
| 5 | Ambience illumination, request | 3E |
| 5 | Ambience illumination, request | 11B |
| 5 | Ambience illumination, request | 20H |
| 5 | Ambience illumination, request | 21E |
| 5 | Ambience illumination, request | 16B |
| 6 | Ambience illumination, actuation | 7B |
| 6 | Ambience illumination, actuation | 18H |
| 6 | Ambience illumination, actuation | 19B |
| 6 | Ambience illumination, actuation | 23C |
| 6 | Ambience illumination, actuation | 3C |
| 7 | Footwell lamp request | 7G |
| 7 | Footwell lamp request | 9G |
| 8 | Footwell lamp, actuation | 11H |
| 8 | Footwell lamp, actuation | 9K |
| 8 | Footwell lamp, actuation | 7K |
| A1 | Instrument cluster | 3G |
| CAN B | Interior CAN | 13H |
| CAN B | Interior CAN | 9F |
| CAN B | Interior CAN | 9E |
| CAN B | Interior CAN | 12C |
| CAN B | Interior CAN | 18E |
| CAN B | Interior CAN | 18F |
| CAN B | Interior CAN | 14C |
| E17/15 | Right front footwell lamp | 11J |
| E17/16 | Left front footwell lamp | 11J |
| E17/17 | Left rear footwell lamp | 9L |
| E17/18 | Right rear footwell lamp | 6L |
| E17/43 | Left front door ambiance illumination | 17H |
| E17/44 | Right front door ambiance illumination | 4C |
| E17/45 | Left rear door ambiance illumination | 7C |
| E17/46 | Right rear door ambiance illumination | 22B |
| E43/7 | Driver-side instrument panel ambiance illumination | 19B |
| E43/8 | Passenger-side instrument panel ambiance illumination | 19B |
| N10 | SAM control unit | 13D |
| N10/8 | Rear control unit | 17B |
| N32/1 | Driver seat control unit | 6H |
| N32/2 | Front passenger seat control unit | 9H |
| N69/1 | Left front door control unit | 19H |
| N69/2 | Right front door control unit | 2D |
| N69/3 | Left rear door control unit | 9A |
| N69/4 | Right rear door control unit | 22D |
| N73 | Electronic ignition switch control unit | 13J |
