Removing And Installing Headlamp For Daytime Running Light - AR82.10-P-2300GR
MODEL 166.074/874
| Remove/install | |||
|---|---|---|---|

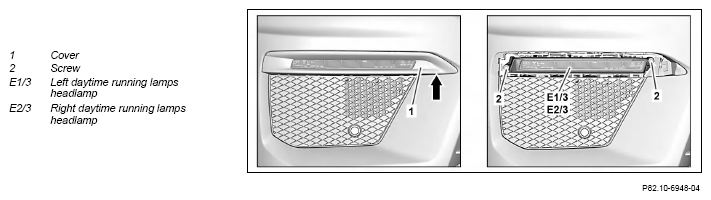

| 1 | Unclip cover (1) with assembly wedge from vehicle center (arrow) toward outside | Bumper may be damaged. |
Fig 1 |
| 2 | Remove bolts (2) | ||
| 3 | Remove left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) and disconnect electrical connector | ||
| 4 | Install in the reverse order |
