Component Description For Rear Entertainment DVD Player - GF82.90-P-4009GN
MODEL 166
as of model year 2016
with CODE 864 (Rear compartment entertainment package)
MODEL 292
with CODE 864 (Rear compartment entertainment package)
Shown on model 292
Location

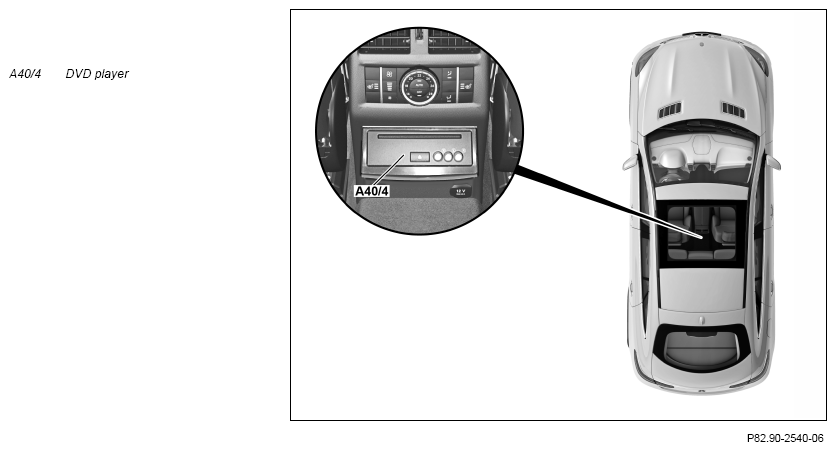

The DVD player is freely accessible and located in the center of the rear bench seat above the propeller shaft tunnel.
Tasks
- Central control unit for rear entertainment system
- Use of all audio or video sources installed on and in the DVD player
- Power and resource management
- Receive signals
- Decoding of signals
- Transmitting signals
Central control unit for rear entertainment system
The DVD player is used for the following applications:
- "Disc" (audio CD or DVD, video DVD, MP3-CD or DVD)
- "AUX"
- "TV reception" (with code (865) TV tuner)
Use of all audio or video sources installed on and in DVD player
Usage also includes management of the audio and video sources as well as connection detection (recognition). The following audio or video sources are available:
- "COMAND": Media sources of the COMAND controller unit (A40/3)
- Integrated DVD drive: Disc (audio CD or DVD, video DVD, MP3-CD or DVD)
- "AUX": Connections for mobile devices, e.g. portable DVD player, video cameras, MP3 player or game consoles
A media source of the COMAND controller unit can only be used via "COMAND", if it was previously enabled at the COMAND controller unit via the menu entry "Active source for rear" for rear entertainment.
There is no connection detection for media sources connected via "AUX"; these media sources must always be selected manually.
Power and resource management
The DVD player recognizes overvoltage or undervoltage and reacts with an adapted switch on and switch off behavior.
Receive signals
- Direct lines, connections and integrated drives
- CAN
Direct lines, connections and integrated drives
The DVD player receives the following signals:
- Power supply via circuit 30g and circuit 31
- Video signals from the COMAND controller unit via the Y/C line (Y - brightness (luminance)/C - color information (chrominance))
- Audio signals from the COMAND controller unit
- Analog video and audio signals from audio or video sources connected (to AUX)
- Digital video and audio signals from a disc (CD, DVD) inserted into the DVD drive
CAN
The DVD player is a subscriber of the telematics CAN (CAN A) and uses it to communicate with the following components:
- Left rear display (A40/5)
- Right rear display (A40/6)
- COMAND control unit
Decoding of signals
The DVD player decodes the received audio and picture signals.
Transmitting signals
- Direct lines
- CAN
Direct lines
The DVD player sends the following signals:
- Analog picture signals via the Y/C line to the left rear display or the right rear display
- Analog audio signals to the left rear display or right rear display
- Analog audio signals to the COMAND controller unit
CAN
The DVD player is a subscriber of the telematics CAN and communicates with the following components:
- Left rear display
- Right rear display
- COMAND control unit
DVD player, front view

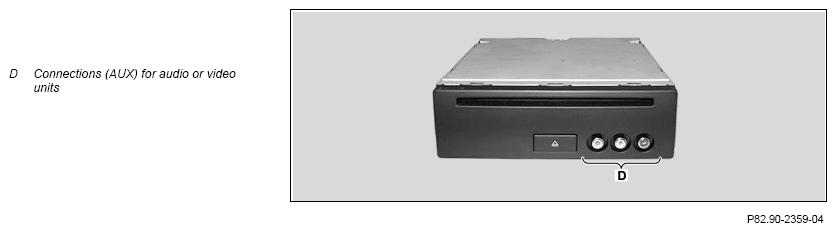

Color view of the connections (AUX) on the DVD player
Body
The following components are integrated in the DVD player:
- DVD drive
- 2 audio connections (AUX) (white and red)
- 1 video connection (AUX) (yellow)
The DVD drive of the DVD player is a single slot drive. In addition to DVD Video and audio media, CD audio media and MP3 files can also be played. Furthermore, media protected by frequently used copy protection systems and recorded blanks (CD R/RW; DVD-R, DVD-RW; DVD+R, DVD+RW) can be played. The DVD drive has a "DVD Disk Auto Detect" function.
| Wiring diagram for DVD player control unit | PE82.60-P-2104-97NBA |
