Remove/Install Prefuse Box In Footwell On Passenger Side - AR54.15-P-1351GQC

MODEL 166.0 as of model year 2016

MODEL 292

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A

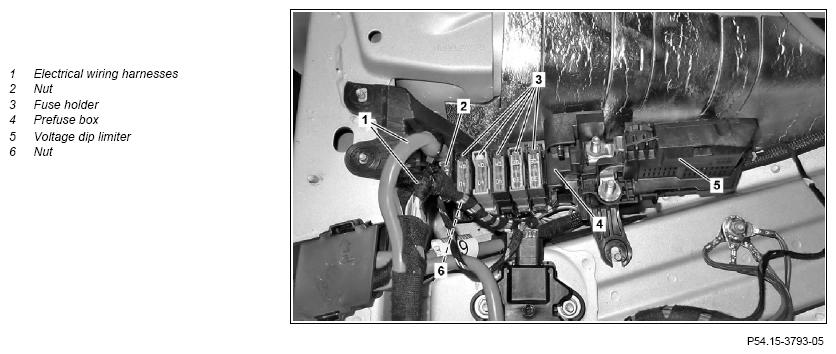

	Remove/install
1	Remove voltage dip limiter (5)	Model 166.0 as of model year 2016 with code 4U7 (Start/stop voltage dip protector) Model 292 with code 4U7 (Start/stop voltage dip protector)	AR54.10-P-0014GQC
2	Unscrew nut (2)	The nut (2) remains on the positive cable. Nut, positive line to engine compartment/vehicle interior prefuse box	*BA54.15-P-1001-01L
3	Unlock and remove fuse holder (3)	Observe location of fuse holders (3). It is not necessary to unplug the fuses.
4	Cut cable ties on electrical wiring harnesses (1) and remove electrical wiring harnesses (1) from prefuse box (4)
5	Unscrew nut (6) and remove positive cable	The nut (6) remains on the positive cable. Nut, positive line to engine compartment/vehicle interior prefuse box	*BA54.15-P-1001-01L
6	Remove prefuse box (4)
7	Install in the reverse order

FUSE AND RELAY BOX

Number	Designation			Model 166	Model 292
BA54.15-P-1001-01L	Nut, positive line to engine compartment/vehicle interior prefuse box	M6	Nm	8	8
		M8	Nm	16	16
