Remove/Install Passenger'S Side Interior Fuse Box - AR54.15-P-1311GQ
MODEL 166, 292
| Remove/install | |||
| 1 | Disconnect ground line at battery | AR54.10-P-0003GZ | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove glove compartment (2) | AR68.10-P-1400GQ | |
| 3 | Remove side air vent (4) | AR68.10-P-1100GQ | |
| 4 | Unscrew screw/bolt (7) | ||
| 5 | Remove screw/bolts (5) | ||

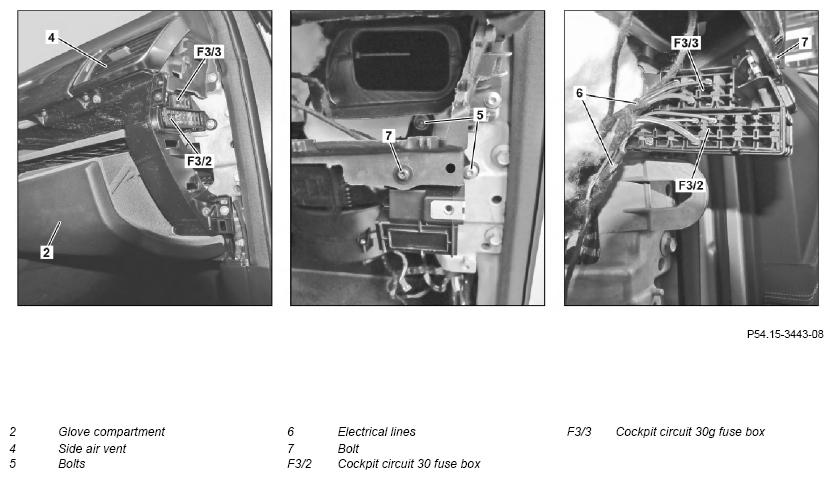

| 6 | Detach electrical lines (6) from cockpit fuse box, circuit 30 (F3/2) and cockpit fuse box, circuit 30g (F3/3) | Fig 1 | |
| 7 | Remove cockpit fuse box, circuit 30 (F3/2) and cockpit fuse box, circuit 30g (F3/3) | ||
| 8 | Install in the reverse order |
