Remove/Install 115V/230V Socket - AR54.10-P-1002GQC

MODEL 166 as of model year 2016

with CODE U80 (115 V socket)

MODEL 292

with CODE U80 (115 V socket)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Disconnect battery ground line		AR54.10-P-0003GZ

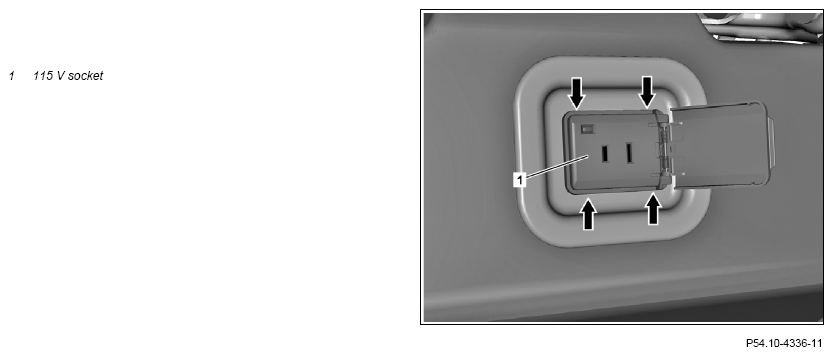

2	Use suitable tool to unclip 115 V socket (1) at arrows	The 115 V socket (1) is located in the footwell of the right rear seat.
3	Pull out 115 V socket (1) far enough until electrical connection of 115 V socket (1) is accessible
4	Detach electrical connection from 115 V socket (1)
5	Remove 115 V socket (1)
6	Install in the reverse order
