Assess Condition And Tread Depth Of Tires - AP40.10-P-4052B

MODEL 117, 123, 124, 126, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 177, 190, 197, 199, 201, 202, 203, 204, 205, 207, 208, 209, 210, 211, 212, 213, 215, 216, 217, 218, 219, 220, 221, 222, 230, 231, 238, 240, 242, 245, 246, 251, 253, 257, 292

MODEL 414

MODEL 453

MODEL 460, 461, 463

G11974504
G11974505
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
  Risk of death  caused by vehicle slipping or toppling off during lifting Only lift vehicle at the lift support points specified by the vehicle manufacturer. Model 117, 123, 124, 126, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 177, 190, 197, 199, 201, 202, 203, 204, 205, 207, 208, 209, 210, 211, 212, 213, 215, 216, 217, 218, 219, 220, 221, 222, 230, 231, 238, 240, 242, 245, 246, 251, 253, 257, 292
Model 460, 461, 463		 AS00.00-Z-0032-01A
  Information on tires/rims Model 117, 123, 124, 126, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 177, 190, 197, 199, 201, 202, 203, 204, 205, 207, 208, 209, 210, 211, 212, 213, 215, 216, 217, 218, 219, 220, 221, 222, 230, 231, 238, 240, 242, 245, 246, 251, 253, 257, 292
Model 453
Model 460, 461, 463		 AH40.10-P-9411-01A
  Preparatory activity
1 Lift vehicle on vehicle lift Model 117, 123, 124, 126, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 177, 190, 197, 199, 201, 202, 203, 204, 205, 207, 208, 209, 210, 211, 212, 213, 215, 216, 217, 218, 219, 220, 221, 222, 230, 231, 238, 240, 242, 245, 246, 251, 253, 257, 292
Model 414
Model 453
Model 460, 461, 463
REFER TO TESTING & REPAIR   Model 117, 156, 169.0/3, 176, 242, 245.2, 246 AR00.60-P-1000AK
REFER TO TESTING & REPAIR   Model 163 AR00.60-P-1000GH
REFER TO TESTING & REPAIR   Model 164, 166, 292 AR00.60-P-1000GZ
REFER TO TESTING & REPAIR   Model 171, 172 AR00.60-P-1000V
REFER TO TESTING & REPAIR   Model 177 AR00.60-P-1005-02MFA
REFER TO TESTING & REPAIR   Model 190 AR00.60-P-1000RG
REFER TO TESTING & REPAIR   Model 197 AR00.60-P-1000RQ
REFER TO TESTING & REPAIR   Model 199 AR00.60-P-1000SLR
REFER TO TESTING & REPAIR   Model 203, 209 AR00.60-P-1000P
REFER TO TESTING & REPAIR   Model 205 AR00.60-P-1000LW
REFER TO TESTING & REPAIR   Model 211 AR00.60-P-1000T
REFER TO TESTING & REPAIR   Model 216, 221 AR00.60-P-1000SX
REFER TO TESTING & REPAIR   Model 217, 222 AR00.60-P-1000LF
REFER TO TESTING & REPAIR   Model 219, 231 AR00.60-P-1000TX
REFER TO TESTING & REPAIR   Model 251 AR00.60-P-1000RT
REFER TO TESTING & REPAIR   Model 257 AR00.60-P-1005-02FR
REFER TO TESTING & REPAIR   Model 460, 461
Model 463 up to model year 2019		 AR00.60-P-1000G
    SPECIAL TOOL Model 117, 156, 164, 166, 171, 172, 176, 177, 203, 204, 205, 207, 209.3/4, 211, 212, 213, 216, 217, 218, 219, 221, 222, 231, 238, 242, 246, 251, 253, 257, 292
Adapter kit		 Fig 1
INSPECT Check

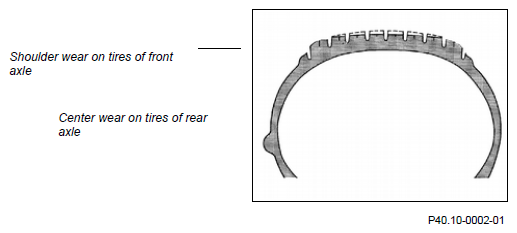

2 Assess wear pattern of tires on front and rear axle IMPORTANT Greater wear at the shoulder compared to the center of the tire is normal for the front wheel-and-tire assemblies. On the tires of the rear wheel-and-tire assemblies the wear at the center of the tread depth is mostly somewhat more pronounced than at the tire shoulders.
In event of unusual wear pattern.
↓
Rectify problem subject to separate repair order.
3 Assess tire tread depths of tires on front and rear axle NOTES
For summer tires with a minimum tread depth of approx. 3 mm (0.12 inches) and for winter tires with a minimum tread depth of approx. 4 mm (0.16 inches), replace tires for safety reasons. Damage can otherwise occur.
IMPORTANT The major tread must exhibit a minimum tread depth of at least 1.6 mm (0.06 inches) along its entire circumference. Assess tire tread depth at point of greatest wear.
IMPORTANT The cited tire tread depths apply for the Federal Republic of Germany. Observe other country-specific requirements accordingly.
Minimum tread depth reached
↓
Replace tires subject to separate repair order.
4.1 Check manufacture date of tires on front and rear axle Model 221.128 with code Z07 (Top protection)
Model 221.176 with code Z07 (Top protection) except code Z19 (S600 Pullman Guard state sedan)
Model 221.176 with code Z07 (Top protection) with code Z19 (S600 Pullman Guard state sedan)
REFER TO BASIC KNOWLEDGE   If the manufacturing date is older than 6 years.
↓
Subject to a separate repair order, replace the tires for safety reasons.		 GF40.10-P-1008O
4.2 Check manufacture date of tires on front and rear axle Model 461, 463 with code 979 (Special protection MB Guard) If tires are Bridgestone or Kumho and the manufacturing date is more than 3 years ago.
↓
Subject to a separate repair order, replace the tires for safety reasons.
REFER TO BASIC KNOWLEDGE   Model 461.332/333 with code 979 (Special protection MB Guard)
Model 461.334 with code 979 (Special protection MB Guard) Green Line as of 12.2002 Model 463.236 up to 5/31/12 with code 979 (Special protection MB Guard)
Model 463.248 up to 5/31/12 with code 979 (Special protection MB Guard) Lux Line as of model refinement package 9.2000		 GF40.10-P-1004GA
5 Check mileage of tires on front and rear axle Model 461, 463 with code 979 (Special protection MB Guard) With Bridgestone or Kumho tires after 20, 000 km (12, 500 mi)
↓
Subject to a separate repair order, replace the tires for safety reasons.
REFER TO BASIC KNOWLEDGE   Model 461.332/333 with code 979 (Special protection MB Guard)
Model 461.334 with code 979 (Special protection MB Guard) Green Line as of 12.2002 Model 463.236 up to 5/31/12 with code 979 (Special protection MB Guard)
Model 463.248 up to 5/31/12 with code 979 (Special protection MB Guard) Lux Line as of model refinement package 9.2000		 GF40.10-P-1004GA
6 Check mileage of rims on front and rear axle Model 461, 463 with code 979 (Special protection MB Guard) After 80, 000 km (50, 000 mi)
↓
Subject to separate repair order, replace rims for safety reasons.
REFER TO BASIC KNOWLEDGE   Model 461.332/333 with code 979 (Special protection MB Guard)
Model 461.334 with code 979 (Special protection MB Guard) Green Line as of 12.2002 Model 463.236 up to 5/31/12 with code 979 (Special protection MB Guard)
Model 463.248 up to 5/31/12 with code 979 (Special protection MB Guard) Lux Line as of model refinement package 9.2000		 GF40.10-P-1004GA
  Finishing activity
7 Lower vehicle with lifting platform Model 117, 123, 124, 126, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 177, 190, 197, 199, 201, 202, 203, 204, 205, 207, 208, 209, 210, 211, 212, 213, 215, 216, 217, 218, 219, 220, 221, 222, 230, 231, 238, 240, 242, 245, 246, 251, 253, 257, 292
Model 414
Model 453
Model 460, 461, 463
REFER TO TESTING & REPAIR   Model 117, 156, 169.0/3, 176, 242, 245.2, 246 AR00.60-P-1000AK
REFER TO TESTING & REPAIR   Model 163 AR00.60-P-1000GH
REFER TO TESTING & REPAIR   Model 164, 166, 292 AR00.60-P-1000GZ
REFER TO TESTING & REPAIR   Model 171, 172 AR00.60-P-1000V
REFER TO TESTING & REPAIR   Model 177 AR00.60-P-1005-02MFA
REFER TO TESTING & REPAIR   Model 190 AR00.60-P-1000RG
REFER TO TESTING & REPAIR   Model 197 AR00.60-P-1000RQ
REFER TO TESTING & REPAIR   Model 199 AR00.60-P-1000SLR
REFER TO TESTING & REPAIR   Model 203, 209 AR00.60-P-1000P
REFER TO TESTING & REPAIR   Model 205 AR00.60-P-1000LW
REFER TO TESTING & REPAIR   Model 211 AR00.60-P-1000T
REFER TO TESTING & REPAIR   Model 216, 221 AR00.60-P-1000SX
REFER TO TESTING & REPAIR   Model 217, 222 AR00.60-P-1000LF
REFER TO TESTING & REPAIR   Model 219, 231 AR00.60-P-1000TX
REFER TO TESTING & REPAIR   Model 251 AR00.60-P-1000RT
REFER TO TESTING & REPAIR   Model 257 AR00.60-P-1005-02FR
REFER TO TESTING & REPAIR   Model 460, 461
Model 463 up to model year 2019		 AR00.60-P-1000G
    SPECIAL TOOL Model 117, 156, 164, 166, 171, 172, 176, 177, 203, 204, 205, 207, 209.3/4, 211, 212, 213, 216, 217, 218, 219, 221, 222, 231, 238, 242, 246, 251, 253, 257, 292
Adapter kit		 Fig 1
Fig 1: Identifying Adapter Kit (203 589 02 31 00)
G11974506Courtesy of MERCEDES-BENZ USA
