Remove/Install Airmatic Central Reservoir - AR32.22-P-2017GQ
MODEL 166.0, 292 with CODE 489 (AIRMATIC)
Shown on model 166.0
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on AIRmatic | AH32.22-P-1000-02GZ | ||
| Remove/install | |||
| 1 | Raise vehicle using vehicle lift until the wheels are clear of the ground | AR00.60-P-1000GZ | |
| 2 | Empty AIRmatic using diagnostic system | ||
The air springs can otherwise be damaged and fail later. |
AD00.00-P-2000-04A | ||
| 3 | Remove load compartment floor and expose central reservoir (1a) | ||
| 4 | Remove right side of panel in trunk | Model 292 with code 489 (AIRMATIC) | AR68.30-P-4800GQC |
| Model 166.0 with code 489 (AIRMATIC) | AR68.30-P-4800GQ | ||
| 5 | Detach bracket (2) of electrical feed line from threaded pin | Model 166.0 with code 489 (AIRMATIC) | |
| 6 | Unscrew nuts (3) and remove central reservoir (1b) | *BA32.22-P-1010-03B | |
| 7 | Detach pressure lines (4) from central reservoir (1a, 1b) | *BA32.22-P-1009-03B | |

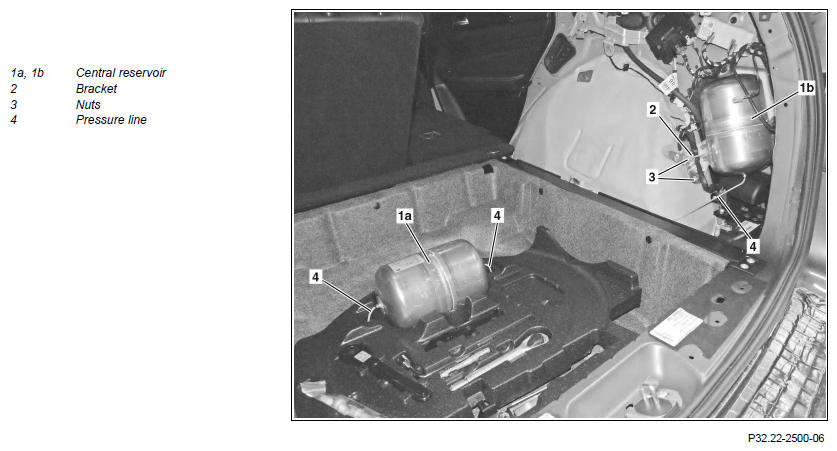

| Figure | |||
| Figure | |||
| Check pressure lines (4) and pressure line connections for signs of damage, if necessary: Repair AIRmatic pressure line connection Model 166.0 with code 489 (AIRMATIC) Model 292 with code 489 (AIRMATIC) |
AR32.22-P-2001-02GZ | ||
| 8 | Seal connections using blind plugs | Fig 2 | |
| 9 | Install in the reverse order | ||
| Check | |||
| 10 | Check AIRmatic for leaks | AR32.22-P-8100GZ |
AIR SUSPENSION
| Number | Designation | Model 166 | Model 292 | |
|---|---|---|---|---|
| BA32.22-P-1009-03B | Pressure line of air suspension to central reservoir | Nm | 5 | 5 |
AIR SUSPENSION
| Number | Designation | Model 166 | Model 292 | |
|---|---|---|---|---|
| BA32.22-P-1010-03B | Nut, central reservoir to wheel well | Nm | 10 | 10 |
