Remove/Install Front Climate Control Operating Unit - AR83.30-P-6630GQC

MODEL 292

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch on ignition and store transmitter key outside of transmission range (min. 2 m)

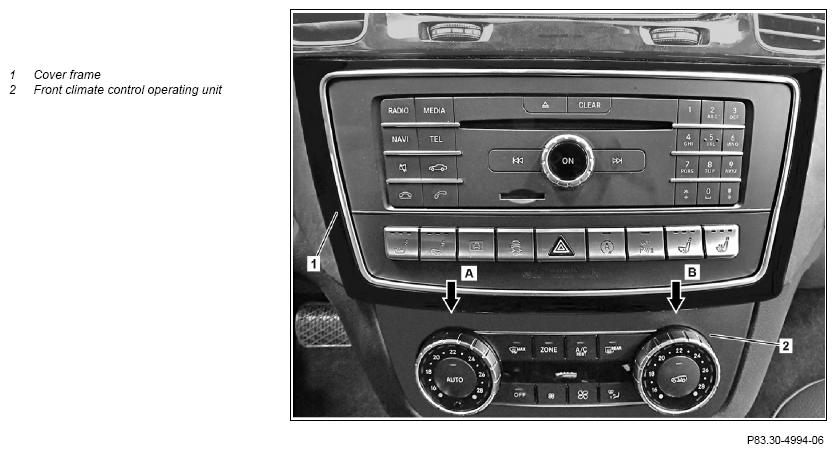

2	Unclip cover frame (1)	Long wedge	Figure
3	Release front climate control operating unit (2) at upper edge with extraction hook (arrows A, B)	Extraction hook	Fig 2
4	Release front climate control operating unit (2) at lower edge with long wedge and pull forward out of instrument panel	Long wedge	Figure
5	Disconnect electrical connectors
6	Remove front climate control operating unit (2)
7	Install in the reverse order

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
