Replace Front Crankshaft Radial Sealing Ring - AR03.20-P-3000MLJ
ENGINE 157, 278 in MODEL 166
ENGINE 157, 278 in MODEL 292
| Remove/install | |||
| 1 | Remove belt pulley/vibration damper (8) | AR03.30-P-1600GQ | |
| 2 | Press out radial shaft sealing ring (5) from the mounting hole using a screwdriver | Use a clean rag as a base when pushing out. Leakage can occur otherwise. |
AR03.20-P-3000-01MM |

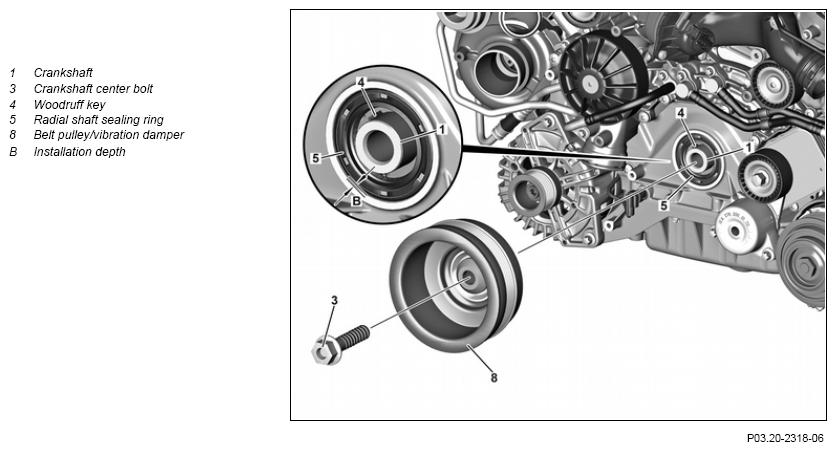

| Fig 1 | |||
| Check | |||
| 3 | Check contact surface of radial shaft sealing ring (5) at hub of belt pulley/vibration damper (8) | In a case of scorch marks and galling ↓ Replace belt pulley/vibration damper (8) |
|
| 4 | Install in the reverse order | ||
| 5 | Check engine oil level; correct if necessary | ||
| Engine 157 in model 166 Engine 157 in model 292 |
AP18.00-P-0101EWG | ||
| Engine 278 in model 166 Engine 278 in model 292 |
AP18.00-P-0101EL | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Carry out an engine test run and check engine for leaktightness |
