Remove/Install Center Exhaust System - AR49.10-P-7283MLJ

ENGINE 157, 276, 278 in MODEL 166

ENGINE 157, 276, 278 in MODEL 292

Shown on model 166, 292 with engine 278

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install

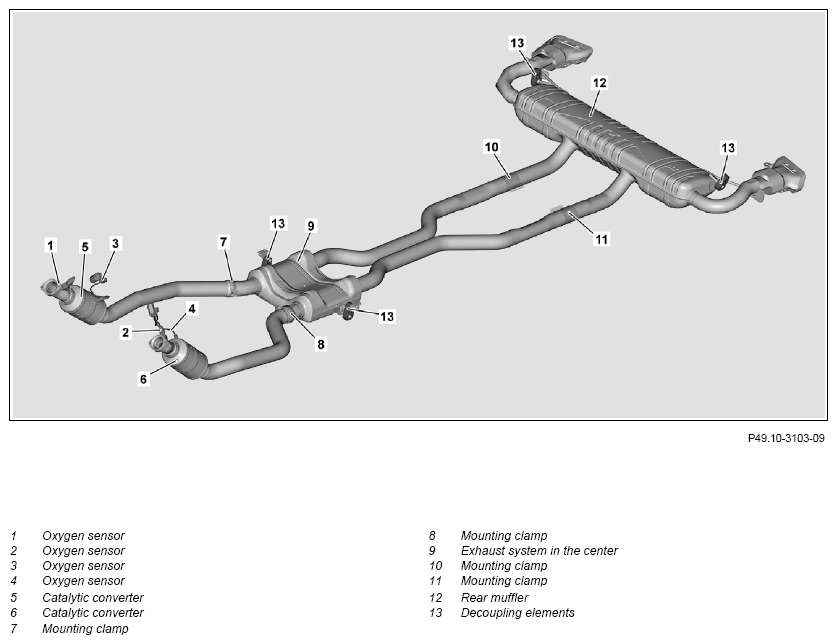

1	Secure exhaust system in the center (9) against falling down
2	Unfasten mounting clamp (10, 11) of the connecting point for the exhaust system in the center (9) and rear muffler (12) and remove rear muffler (12)	Engine 278 in model 166, 292 Aid of helper required Bolt/nut, mount for rear exhaust system bracket	*BA49.10-P-1018-01AK
3	Detach decoupling elements (13) from the exhaust system in the center (9)
4	Detach decoupling elements (13) from rear muffler (12)	Engine 157, 276 in model 166, 292
5.1	Unfasten mounting clamp (7, 8) of the connecting point for the catalytic converters (5, 6) and remove exhaust system in the center (9)	Engine 278 in model 166, 292 Aid of helper required	AR49.10-P-5500MLJ
		Engine 278 in model 166 Engine 278 in model 292 Bolt, exhaust system clamp to catalytic converter	*BA49.10-P-1012-01AK
5.2	Unfasten mounting clamp (7, 8) of the connecting point for the catalytic converters (5, 6) and remove exhaust system in the center (9) with rear muffler (12)	Engine 157 in model 166, 292 The rear muffler (12) and the exhaust system in the center (9) form a unit.	AR49.10-P-5500MLJ
		Aid of helper required Engine 157 in model 166 Engine 157 in model 292 Bolt, exhaust system clamp to catalytic converter	*BA49.10-P-1012-01AK
5.3	Unfasten mounting clamp (7, 8) of the connecting point for the catalytic converters (5, 6) and remove exhaust system in the center (9) with rear muffler (12)	Engine 276 in model 166, 292 Engine 276.8 in model 166, 292	AR49.10-P-5500GQC
		Engine 276 in model 166 Engine 276 in model 292 Bolt, exhaust system clamp to catalytic converter	*BA49.10-P-1012-01AK
	Clean
6	Remove combustion and corrosion residue at separating points
	Check
7	Check decoupling elements (13)	Check for wear and damage, and replace if necessary.
8	Install in the reverse order
	Check
9	Check installation position and unobstructed movement of all components of the exhaust system
10	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
10	Perform an engine test run and check exhaust system for leaktightness
